Product Description

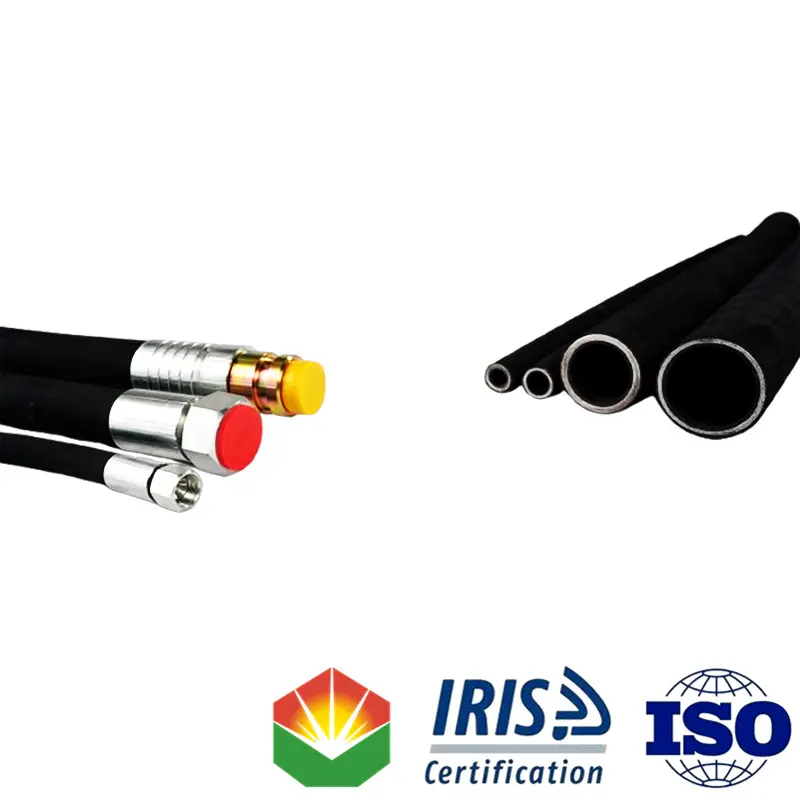

Hydraulic Hose Assembly

Customers are supplied with low, medium and high pressure hydraulic hose assemblies for hydraulic systems to support their hydraulic fluid applications in a variety of scenarios. It consists of hydraulic hoses and couplings, which are processed into an assembly using state-of-the-art press braking equipment.

⚙️

Diverse Applications: Coal mining machinery, piling machinery, construction machinery, agricultural machinery, port machinery, etc.

📜

Global Standards: Designed and manufactured to meet and exceed SAE, ISO, EN and JIS industry standards.

Product Description

Name	Ultra-high pressure wire wound hydraulic rubber hose
Tube	Synthetic Rubber, Resistant Against Hydraulic Fluids
Cover	Abrasion And Ozone Resistant Synthetic Rubber
Temperature Range	-40°C To 100°C / -40°F To +212°F (max 120°C / 248°F Intermittent)
Reinforcement	Four Spiral Layers Of High Tensile Steel Wire
Note	Various Covers Available

Payment & Shipping Terms

Minimum Order Quantity	7-15 days
Payment Terms	L/C, T/T, Paypal
Supply Ability	165,600 meters / month

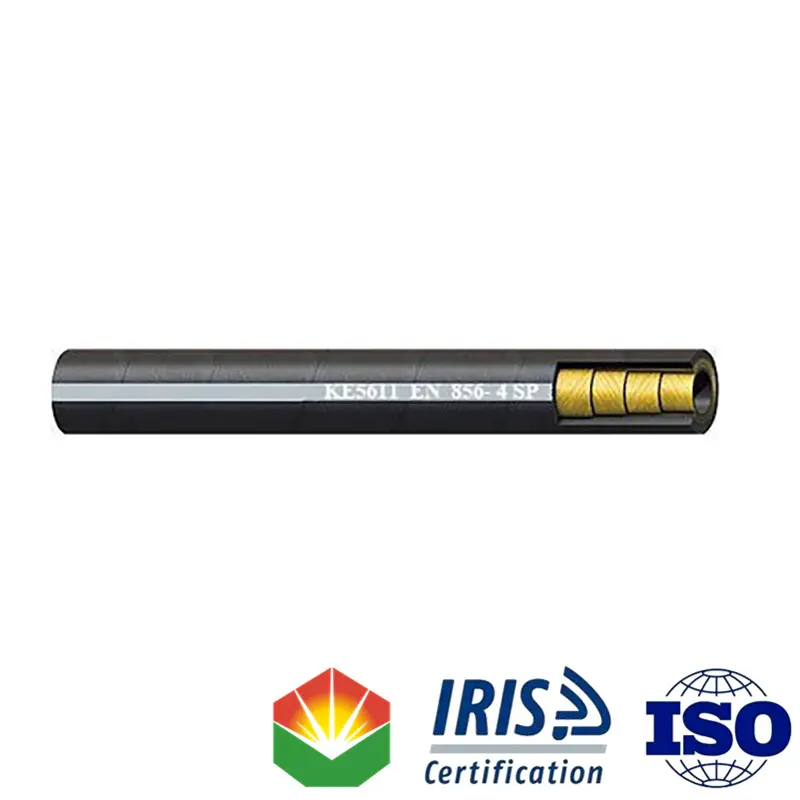

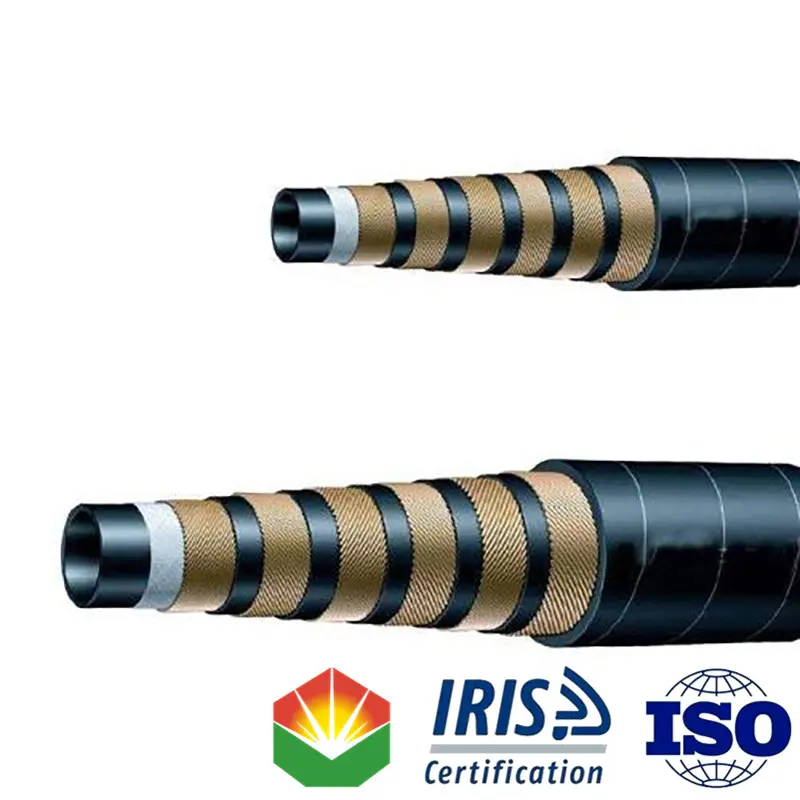

Hose Construction

TUBE: Oil-resistant synthetic rubber inner layer + steel wire winding + oil-resistant and weather-resistant synthetic rubber outer layer

Reinforcement: Four spiral layers of high tensile steel wire

Cover: Abrasion and ozone resistant synthetic rubber

Temperature range: -40°C to 100°C (max 120°C intermittent)

Application Range

Specifically designed for petroleum-based hydraulic fluids and water-based hydraulic fluids.

Technical Parameters

TYPE	I.D (mm)		W.P		P.P		B.P		Min B.R	W.T
TYPE	Min	Max	Mpa	Psi	Mpa	Psi	Mpa	Psi	mm	Kg/m
KE5611-04	6.2	7	45	6525	90	13050	180	26100	150	0.64
KE5611-06	9.3	10.1	44.5	6450	89	12905	178	25810	180	0.75
KE5611-08	12.3	13.5	41.5	6020	83	12035	166	24070	230	0.89
KE5611-10	15.5	16.7	35	5075	70	10150	140	20300	250	1.1
KE5611-12	18.6	19.8	35	5075	70	10150	140	20300	300	1.5
KE5611-16	25	26.4	28	4060	56	8120	112	16240	340	2
KE5611-20	31.4	33	21	3045	42	6090	84	12180	460	3
KE5611-24	37.7	39.3	18.5	2680	37	5365	74	10730	560	3.4
KE5611-32	50.4	52	16.5	2390	33	4785	66	9570	660	4.35

Frequently Asked Questions (FAQ)

Q1: What are the main applications for these hydraulic hose assemblies?

A1: They are widely used in coal mining machinery, piling machinery, construction machinery, agricultural machinery, and port machinery.

Q2: Which industry standards do your hoses comply with?

A2: Our hose assemblies meet and exceed international standards including SAE, ISO, EN, and JIS.

Q3: What is the temperature tolerance of the hydraulic hose?

A3: The standard temperature range is -40°C to 100°C (-40°F to +212°F), with a maximum intermittent tolerance of 120°C (248°F).

Q4: How is the ultra-high pressure hose reinforced?

A4: It is constructed with four spiral layers of high tensile steel wire for maximum strength and durability.

Q5: What types of fluids are these hoses compatible with?

A5: They are specifically designed for both petroleum-based and water-based hydraulic fluids.

Q6: What payment methods are accepted for international orders?

A6: We accept L/C, T/T, and Paypal for payment transactions.
