Cheap High Pressure Wire Braided Hydraulic Hose EN853-1SN-1 and SAE100 R1 Exporters, Company

1 / 5

Cheap High Pressure Wire Braided Hydraulic Hose EN853-1SN-1 and SAE100 R1 Exporters, Company

Kelong's Wire Braid Hydraulic Hose EN853 1SN SAE100 R1, used in crimping machines, offers unmatched durability and reliability for high-performance hydraulic systems. With its oil-resistant synthetic rubber inner layer, it ensures superior protection against hydraulic fluids, extending the lifespan of your machinery. The high tensile steel wire braid reinforcement provides excellent strength and flexibility, making it ideal for demanding applications. Resistant to oil, weather, and abrasion, this hose operates in extreme temperatures from -40â„ƒ to +100â„ƒ (-40â„‰ to +212â„‰), ensuring consistent performance even in harsh environments. Perfect for use in crimping machines, it guarantees safety, efficiency, and a long service life, making it a trusted choice for industrial and hydraulic applications.

Send Inquiry

Product Description

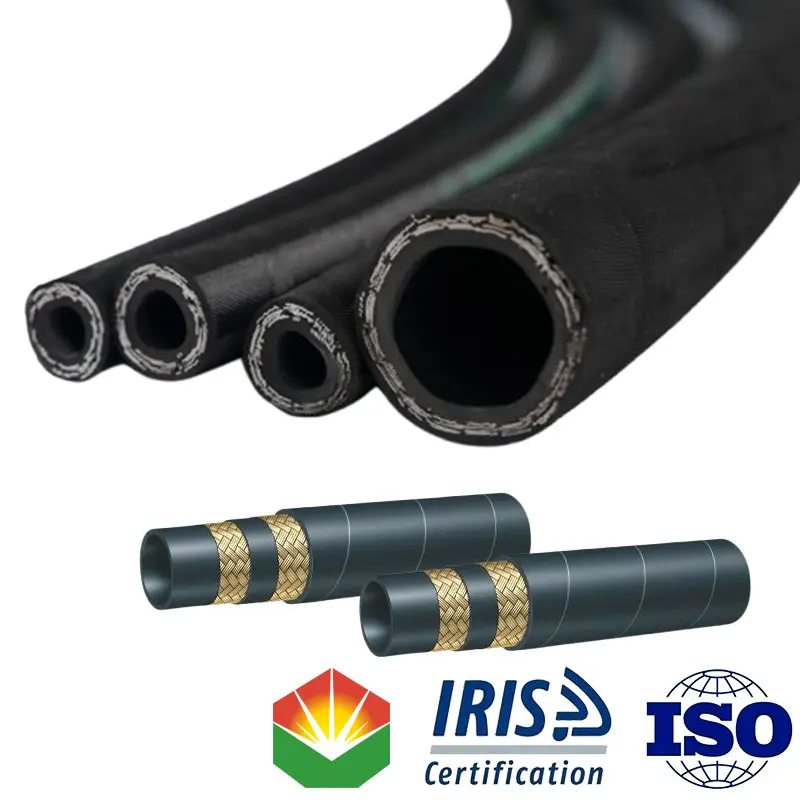

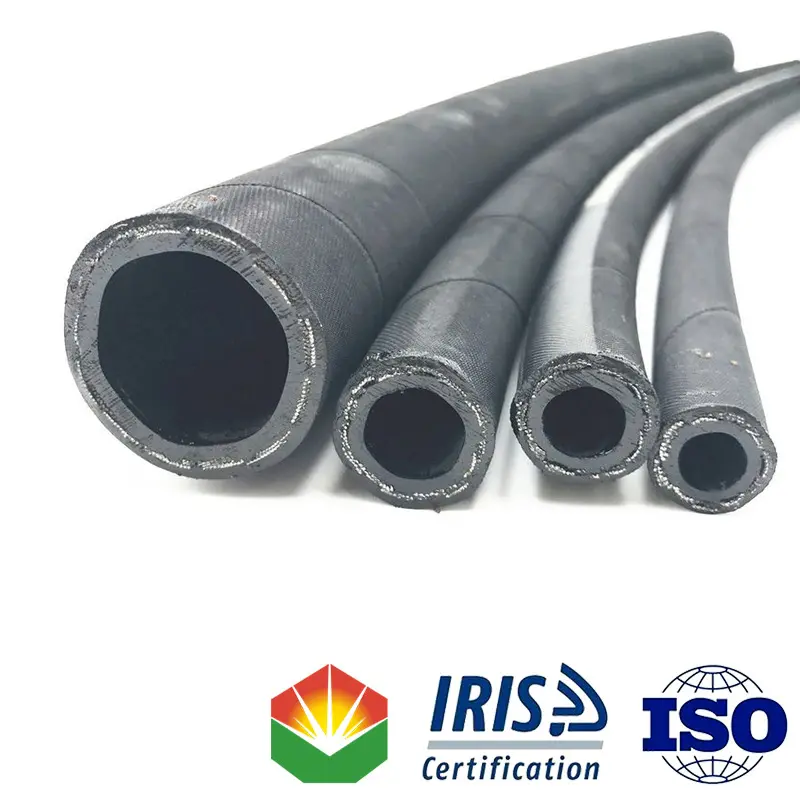

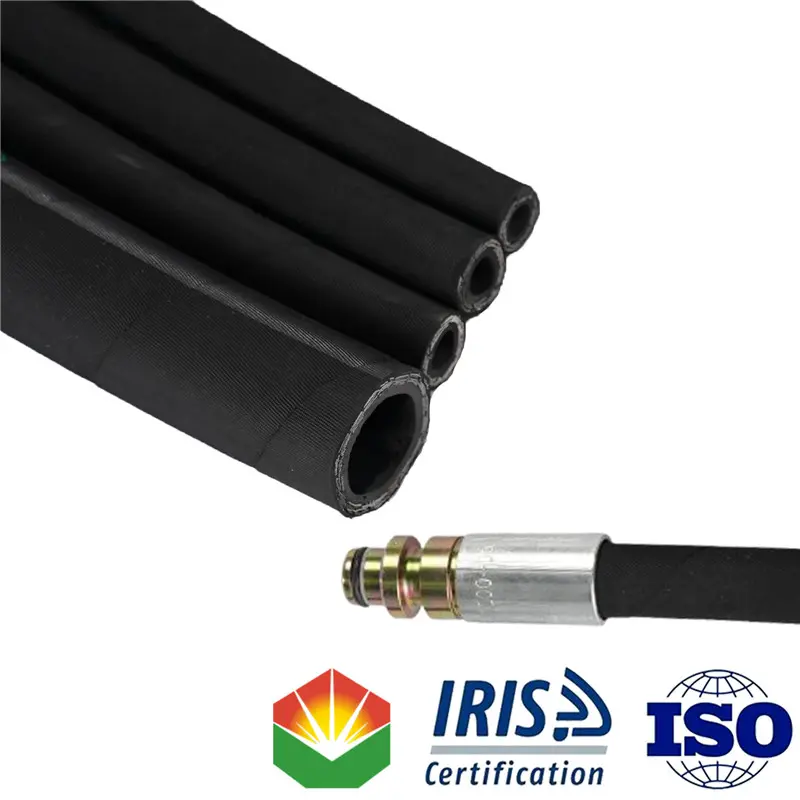

Steel Wire Braided Hydraulic Hose

⚙️

Braided hydraulic hose adopts high-strength ultra-flexible steel wire as the reinforcement layer, the hose body is lighter and softer, and its outer rubber layer generally uses abrasion-resistant and weather-resistant synthetic rubber, which has a longer service life to fully meet the needs of high-end hose users, such as coal mining machinery and equipment manufacturing.

Hose Description

Inner Layer	Oil Resistant Synthetic Rubber
Reinforcement Layer	One Braids Of High Tensile Super Flexible Steel Wire
Outer Layer	Black Oil, Weather, And Abrasion Resistant Synthetic Rubber
Temperature Range	-40°C to +100°C (-40°F to +212°F)
Application	Suitable to convey water-based, petroleum-based and biodegradable hydraulic oil.

Payment & Shipping Terms

Minimum Order Quantity	100
Payment Terms	L/C, T/T
Supply Ability	100000 + PCS / Month

Hose Construction Detail

🏗️

Inner Tube: Oil resistant synthetic rubber.
Reinforcement: One braids of high tensiles super flexible steel wire.
Outer Layer: Black oil, weather, and abrasion resistant rubber cover.
Fluid Compatibility: Resistant to oil-based and water-based hydraulic fluids.

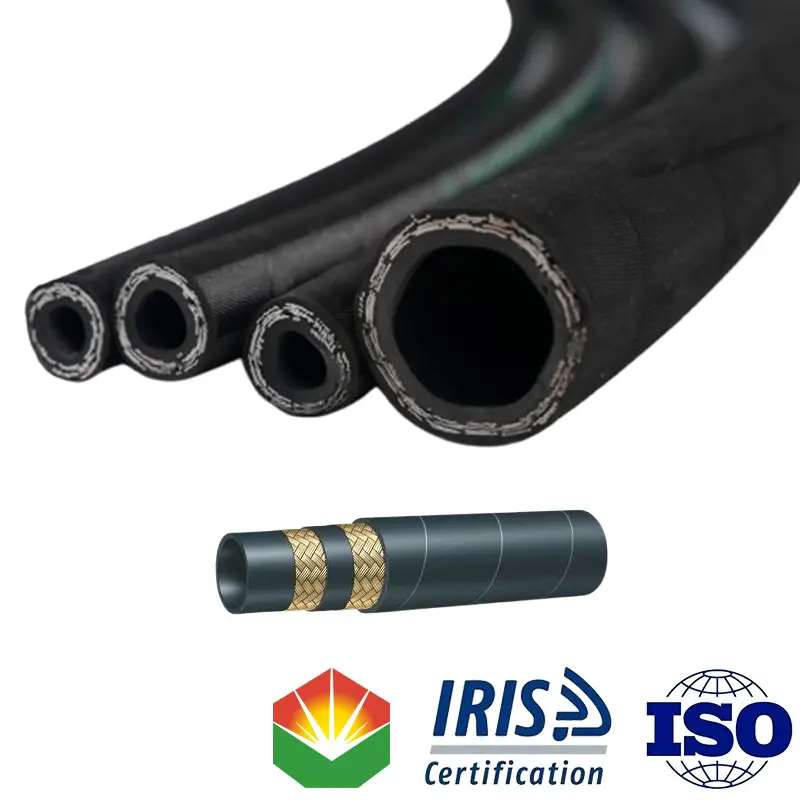

Steel Wire Braided Hydraulic Hose Structure

Wide Range Application

Our hoses are engineered for conveying petroleum-based hydraulic fluids, water-based hydraulic fluids, and biodegradable oils in challenging industrial environments.

Technical Parameters

Size (mm/Inch)	DASH	I.D (Min-Max)	W.P (Mpa/Psi)	Burst Pressure (Mpa)	Bending Radius (mm)	Weight (Kg/m)
5 (3/16")	3	4.9 - 5.4	25.0 / 3625	100.0	90	0.20
6 (1/4")	-4	6.4 - 7.0	22.5 / 3260	90.0	100	0.25
10 (3/8")	6	9.5 - 10.1	18.0 / 2610	72.0	130	0.36
13 (1/2")	8	12.7 - 13.5	16.0 / 2320	64.0	180	0.45
19 (3/4")	-12	18.8 - 19.8	10.5 / 1520	42.0	240	0.65
25 (1")	16	25.0 - 26.4	8.8 / 1280	35.0	300	0.91
51 (2")	-32	50.6 - 52.0	4.0 / 580	16.0	630	2.00

Frequently Asked Questions

What fluids are compatible with this steel wire braided hose?

The hose is specifically designed to convey water-based, petroleum-based, and biodegradable hydraulic oils.

What is the working temperature range?

The hose operates effectively within a temperature range of -40°C to +100°C (-40°F to +212°F).

How is the hose reinforced?

It uses one braid of high-tensile, ultra-flexible steel wire, which provides strength while maintaining a lighter and softer body.

Is the hose resistant to harsh weather conditions?

Yes, the outer layer is made of synthetic rubber that is resistant to oil, weather, ageing, and abrasion.

What industries typically use this hydraulic hose?

It is ideal for high-end machinery users, particularly in coal mining, heavy equipment manufacturing, and hydraulic system maintenance.

What is the minimum order quantity for this product?

The standard minimum order quantity (MOQ) is 100 pieces.
