Oil Wire Braided Hydraulic Hose  SAE 100 R6 Water Hydraulic Hose  R6 Textile Rubber Hose

Wire Braid Hydraulic Hose Meets SAE 100 R6

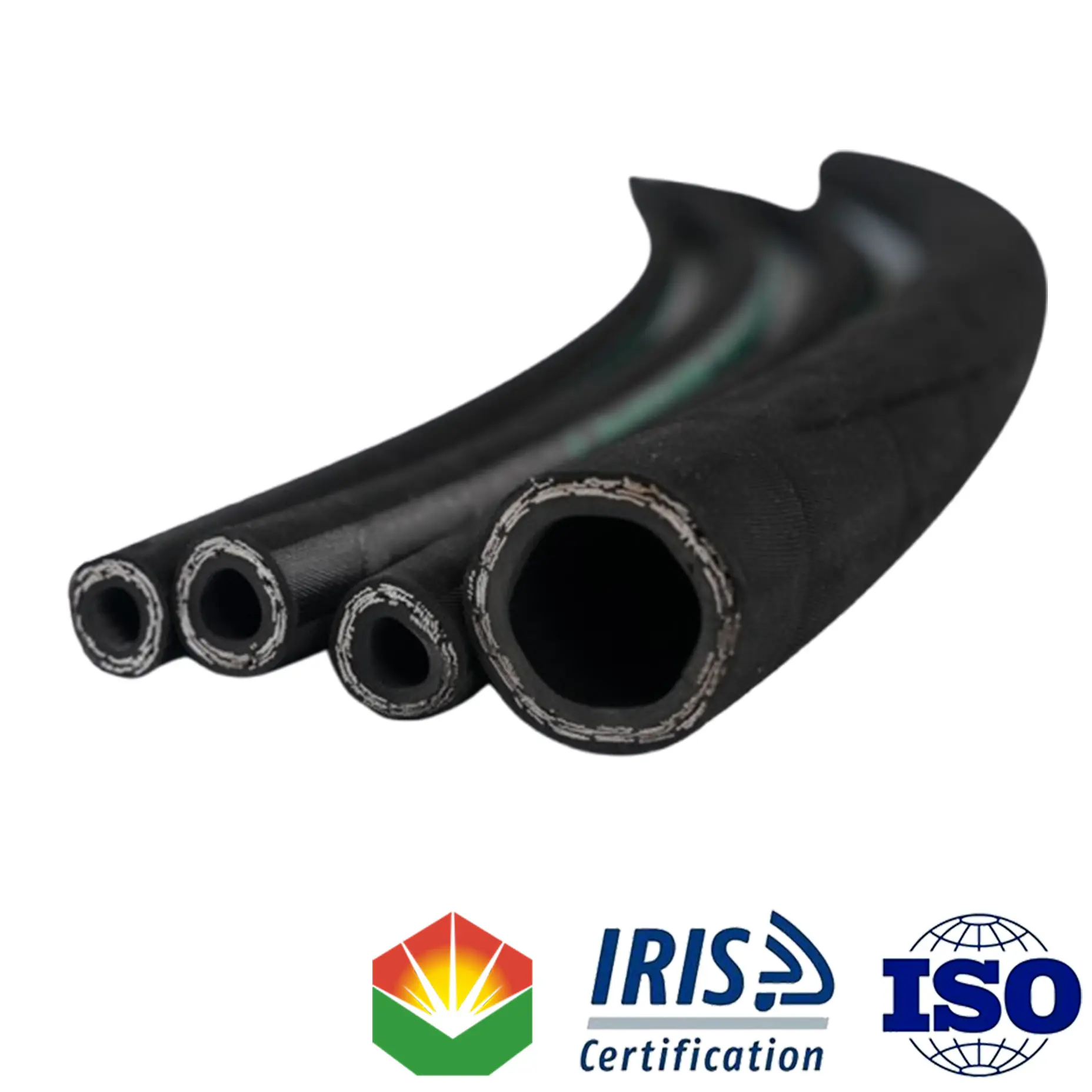

This hose consists of three main parts: an inner tube, a reinforcing layer, and an outer layer.
The inner tube is made of black oil-resistant synthetic rubber, which is resistant to the erosion of oily liquids.
The reinforcement layer is woven from high-stretch ultra-flexible steel wire, adding strength and durability to the hose.
The outer layer is made of black oil-resistant, weather-resistant and wear-resistant synthetic rubber, which can resist the influence of the external environment. In addition, the hose is available in a variety of coverings. It has an operating temperature range of -40 ° C to 100 ° C, or -40 ° F to + 212 °F. Suitable for delivery of water based, petroleum based and biodegradable hydraulic fluids.

Send Inquiry

Product Description

Steel Wire Braided Hydraulic Hose

Braided hydraulic hose adopts high-strength ultra-flexible steel wire as the reinforcement layer, the hose body is lighter and softer, and its outer rubber layer generally uses abrasion-resistant and weather-resistant synthetic rubber, which has a longer service life to fully meet the needs of high-end hose users, such as coal mining machinery and equipment manufacturing.

Product Specifications
Name High pressure wire braided hydraulic rubber hose
Tube Synthetic Rubber, Resistant Against Hydraulic Fluids
Reinforcement One Braids Of High Tensile Steel Wire
Temperature Range -40°C To 100°C / -40°F To +212°F (max 120°C / 248°F Intermittent)
Note Various Covers Available
Cover Abrasion And Ozone Resistant Synthetic Rubber
Applications Petroleum Based Hydraulic Oil
Payment & Shipping Terms
Minimum Order Quantity 7-15 days
Payment Terms L/C, T/T, Paypal
Supply Ability 16,5600 Meters / Months
Field Applications

Suitable to convey water-based, petroleum-based and biodegradable hydraulic oil.

Hydraulic Hose Application 1
Hydraulic Hose Application 2
Hydraulic Hose Application 3
Hydraulic Hose Application 4
Technical Parameters (SAE 100 R6)
Hose Code Size Dash Size ID (mm) OD max (mm) Working Pressure Min Burst Pressure Min Bending (mm) Weight (kg/m)
mm inch min max MPa psi MPa psi
SAE100R6-01 5 3/16 -3 4.2 5.4 10.3 3.5 510 14 2030 50 0.1
SAE100R6-02 6.3 1/4 4 5.6 7.2 11.9 2.8 410 11.2 1620 65 0.13
SAE100R6-03 8 5/16 5 7.2 8.8 13.5 2.8 410 11.2 1620 75 0.15
SAE100R6-04 10 3/8 6 8.7 10.3 15.1 2.8 410 11.2 1620 75 0.18
SAE100R6-05 12.5 1/2 8 11.9 13.5 19 2.8 410 11.2 1620 100 0.26
SAE100R6-06 16 5/8 -10 15.1 16.7 22.2 2.4 350 9.8 1420 125 0.34
SAE100R6-07 19 3/4 -12 18.3 19.9 25.4 2.1 310 8.4 1220 150 0.4
Frequently Asked Questions
What is the temperature range for this hydraulic hose?
The standard operating temperature range is -40°C to +100°C (-40°F to +212°F), with intermittent resistance up to 120°C (248°F).
What materials are used in the construction?
The hose consists of a synthetic rubber tube resistant to hydraulic fluids, a reinforcement layer made of high-tensile steel wire braid, and an abrasion/ozone-resistant synthetic rubber cover.
Which fluids are compatible with this hose?
It is specifically designed to convey petroleum-based hydraulic oil, water-based fluids, and biodegradable hydraulic oils.
What are the main applications for steel wire braided hoses?
They are widely used in coal mining machinery, equipment manufacturing, and high-end industrial hydraulic systems where flexibility and durability are required.
Does the hose offer weather resistance?
Yes, the outer synthetic rubber cover is engineered to be ozone-resistant and weather-resistant, ensuring a longer service life in harsh environments.
What is the typical lead time for orders?
The standard delivery time is approximately 7-15 days, depending on the order quantity and specific requirements.
