Cheap SAE 100 R12 Spiral Hydraulic Rubber Hose High Pressure For Petroleum Based Hydraulic Oils Exporter, Companies

SAE 100 R12 Spiral Hydraulic Hose Â Spiral Hydraulic Hose High Pressure Â SAE 100 R12 Hydraulic Hose
SAE 100 R12 Steel Wire Spiraled Hydraulic Hose High Pressure Working Condition Delivering Petroleum-Based Hydraulic

Features:
1.Good resistance to oilÂ
2.Good resistance to extremely high pressure.Â
3Good resistance to abrasion, corrosion, weather, ozone, cut, aging and sunlight.

Send Inquiry

Product Description

Hydraulic Hose Assembly

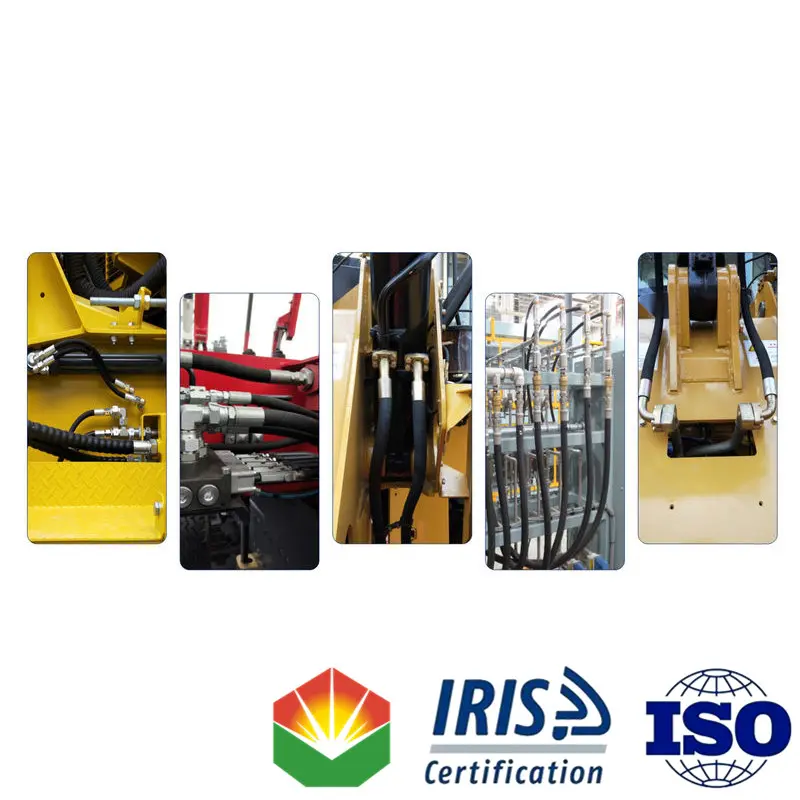

Customers are supplied with low, medium and high pressure hydraulic hose assemblies for hydraulic systems to support their hydraulic fluid applications in a variety of scenarios. It consists of hydraulic hoses and couplings, which are processed into an assembly using state-of-the-art press braking equipment. More applications include: coal mining machinery, piling machinery, construction machinery, agricultural machinery, port machinery, etc. Our hose assemblies are designed and manufactured to meet and exceed SAE, ISO, EN and JIS industry standards.

Technical Description

Name	Ultra-high pressure wire wound hydraulic rubber hose
Tube	Synthetic Rubber Layer, Steel Wire Wrapping Layer
Reinforcement	Multi-layer High-strength Steel Wire Winding
Cover	Abrasion And Ozone Resistant Synthetic Rubber
Temperature Range	-40°C To 121°C / -40°F To +250°F
Applications	Petroleum Based Hydraulic Oil

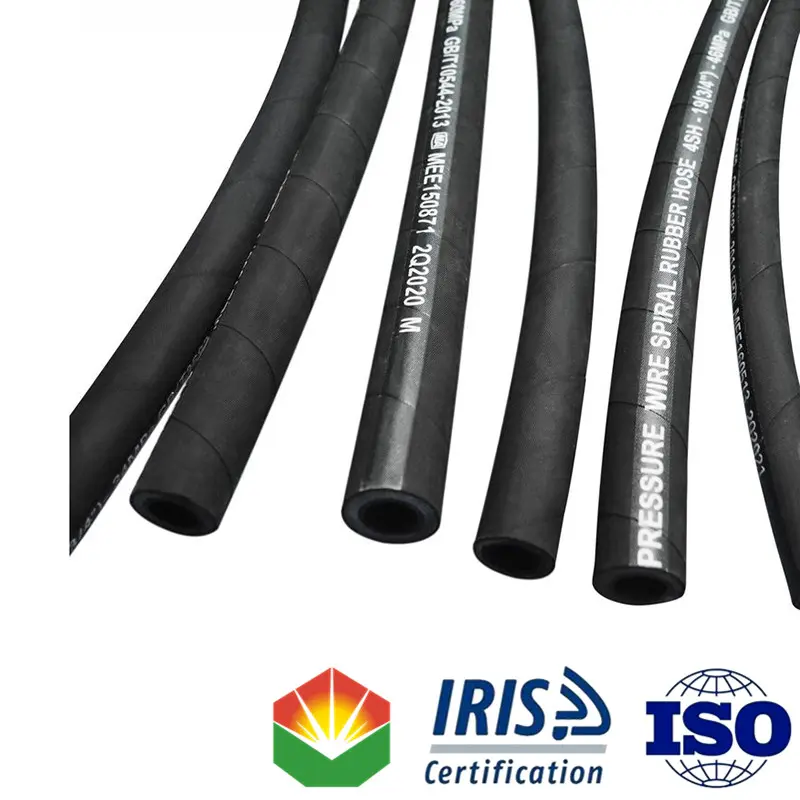

Material & Construction

✓Tube: High quality black oil resistant synthetic rubber.

✓Reinforcement: Four layers of high tensile and high strength thick spiraled steel wire.

✓Cover: High quality abrasion, weather and corrosion resistant synthetic rubber.

✓Working Pressure: 35 MPa / Burst Pressure: 140 MPa.

SAE 100 R1 - R9 Series Parameters

SAE 100 R1 Steel Wire Braided Hydraulic Hose
Hose Code	Size (mm)	Size (inch)	ID Min/Max	OD Max	Working Pressure (MPa)	Working Pressure (PSI)	Burst Pressure (MPa)	Bending Radius	Weight (kg/m)
SAE100R1-01	5	3/16	4.6/5.4	13.5	21	3045	84	90	0.2
SAE100R1-04	10	3/8	9.3/10.1	20.6	15.7	2280	63	125	0.36
SAE100R1-08	25	1	25/26.4	39.3	7	1015	28	300	0.91

SAE 100 R2 Steel Wire Braided Hydraulic Hose
SAE100R2-02	6.3	1/4	6.2/7	18.3	35	5075	140	100	0.36
SAE100R2-05	12.5	1/2	12.3/13.5	25.4	24.5	3550	98	180	0.68
SAE100R2-08	25	1	25/26.4	40.9	14	2030	56	300	1.35

Frequently Asked Questions

What applications are hydraulic hose assemblies suitable for?

They are widely used in coal mining, construction, agricultural, port, and piling machinery systems.

What industry standards do these hoses meet?

Our hose assemblies meet or exceed SAE, ISO, EN, and JIS industry standards.

What is the standard temperature range for these hoses?

The typical temperature range is -40°C to +121°C (-40°F to +250°F).

What materials are used in the construction?

The hoses feature high-quality oil-resistant synthetic rubber tubes, high-tensile steel wire reinforcement, and abrasion-resistant synthetic rubber covers.

What types of hydraulic fluids can be used?

These hoses are specifically designed for petroleum-based hydraulic oils.

Are there options for different hose covers?

Yes, various covers are available, including those with enhanced abrasion, weather, and corrosion resistance.
