KL19 is an innovative rod seal developed for challenging high temperature applications that require both extrusion resistance and low leakage. This rod seal is designed to ensure that pressurized fluid does not leak out of the system as the rod cycles back and forth (dynamic pressure sealing). As the most critical seal on any fluid power equipment, the KL19 prevents performance reduction and environmental issues caused by leakage.
• Construction machinery
• Loading platforms
• Injection moulding machines
• Forklifts & Mobile machinery
• Agricultural machinery

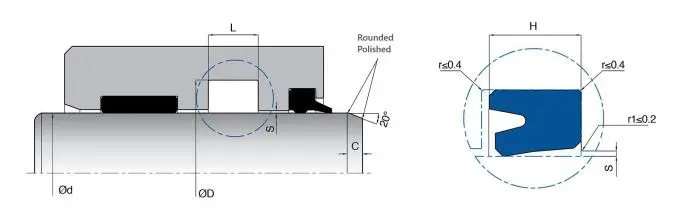

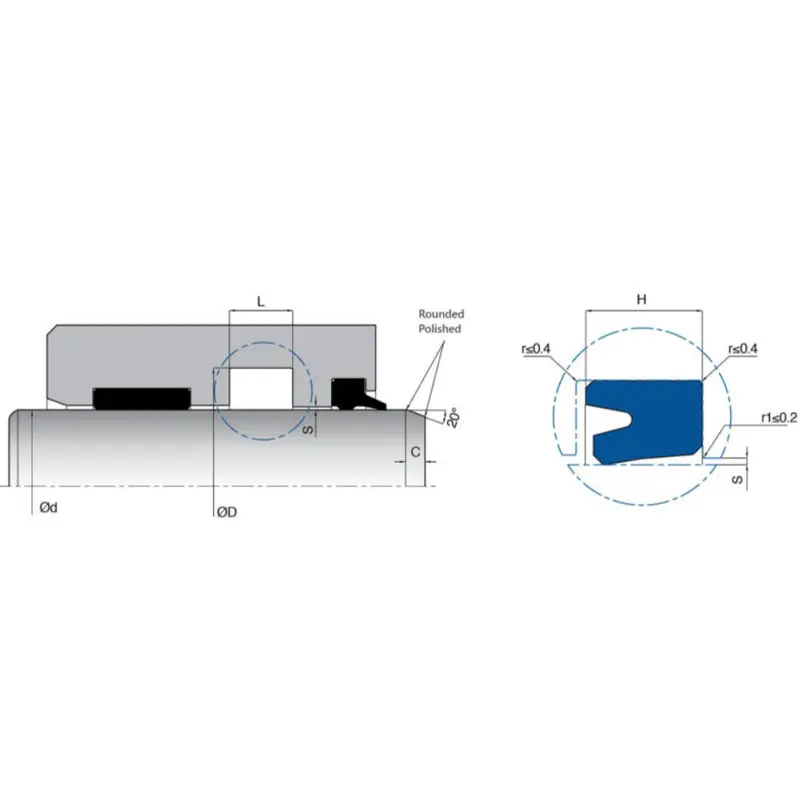

| Part Number | d (f8) | D (H10) | L (+0.2/-0) | H | C | Material |
|---|---|---|---|---|---|---|
| KL19-018 | 18 | 24 | 5.2 | 4.7 | 4 | PU |
| KL19-020 | 20 | 28 | 6.3 | 5.7 | 4 | PU |
| KL19-020/1 | 20 | 30 | 7 | 6.3 | 5 | PU |
| KL19-020/2 | 20 | 30 | 9 | 8 | 5 | PU |
| KL19-022 | 22 | 30 | 6.3 | 5.7 | 4 | PU |
| KL19-025 | 25 | 33 | 6.3 | 5.7 | 4 | PU |
| KL19-025/1 | 25 | 35 | 9 | 8 | 5 | PU |
| KL19-030 | 30 | 38 | 6.3 | 5.7 | 4 | PU |
| KL19-040 | 40 | 50 | 9 | 8 | 5 | PU |
| KL19-050 | 50 | 60 | 11 | 10 | 4.5 | PU |
| KL19-060 | 60 | 70 | 9 | 8 | 4.5 | PU |
| KL19-080 | 80 | 100 | 13 | 12 | 6 | PU |
| KL19-100 | 100 | 120 | 13 | 12 | 6 | PU |
| KL19-150 | 150 | 170 | 16 | 14.5 | 6 | PU |
| KL19-250 | 250 | 270 | 16 | 14.5 | 6 | PU |
