KL78 Pneumatic Rod Seal Is A Single Acting Sealing Element Have Superior Wiping Performance And Sealing Performance
The KL78 pneumatic rod seal is a single acting sealing element that can perform both functions together with its dust lip preventing that foreign particles from outer environment penetrate in the cylinder and the nutring structure that provides sealing.

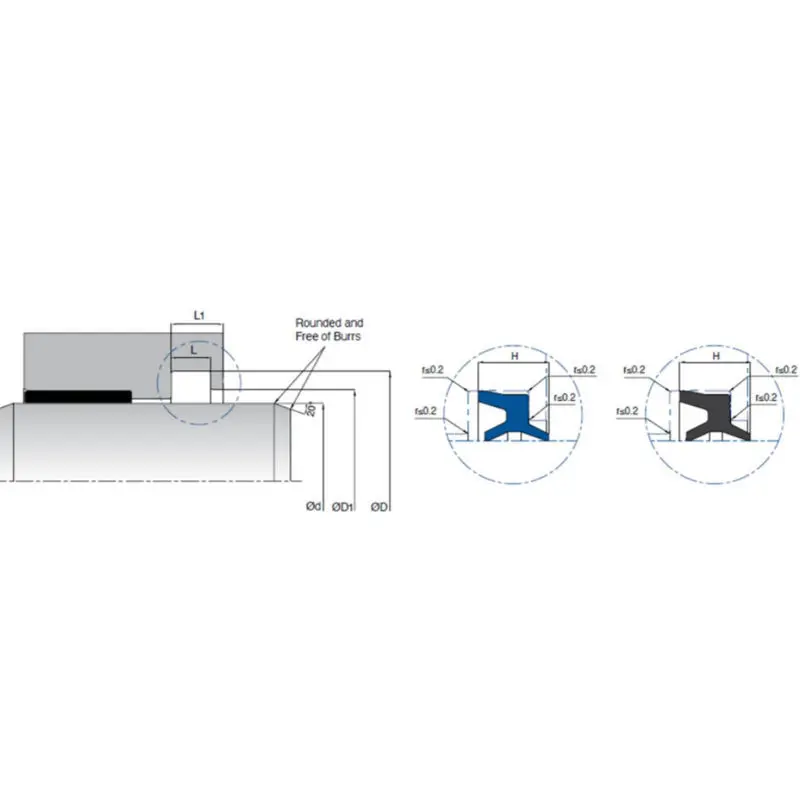

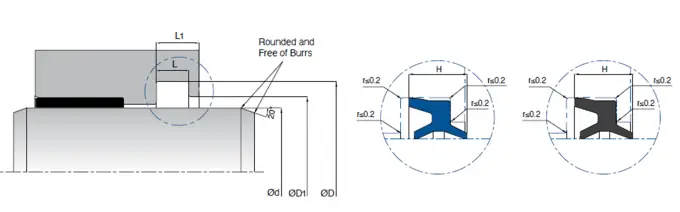

| Model | d (f9) | D (H11) | D1 (+0.2/-0) | L (+0.2/-0) | L1 | H | MATERIAL |
|---|---|---|---|---|---|---|---|
| KL78-003 PU | 3 | 5.6 | 4.6 | 2.7 | 3.2 | 2.8 | PU |
| KL78-004 | 4 | 8.2 | 6.5 | 3 | 4.8 | 4 | NBR |
| KL78-004 PU | 4 | 8.2 | 6.5 | 3 | 4.8 | 4 | PU |
| KL78-004/1 | 4 | 7 | 5.6 | 2.7 | 3.2 | 2.8 | NBR |
| KL78-004/1 PU | 4 | 7 | 5.6 | 2.7 | 3.2 | 2.8 | PU |
| KL78-005 | 5 | 8 | 6.6 | 2.7 | 3.2 | 3 | NBR |
| KL78-005 PU | 5 | 8 | 6.6 | 2.7 | 3.2 | 3 | PU |
| KL78-006 | 6 | 11.2 | 9 | 4 | 5.2 | 5 | NBR |
| KL78-006 PU | 6 | 11.2 | 9 | 4 | 5.2 | 5 | PU |
| KL78-006/1 PU | 6 | 9 | 8.1 | 2.7 | 3.2 | 2.8 | PU |
| KL78-008 | 8 | 14.2 | 12 | 4 | 5.2 | 5 | NBR |
| KL78-008 PU | 8 | 14.2 | 12 | 4 | 5.2 | 5 | PU |
| KL78-020 PU | 20 | 25 | 22.2 | 4.15 | 5.2 | 4.6 | PU |
| KL78-030 PU | 30 | 35.5 | 31.9 | 4.55 | 6 | 5 | PU |
