Y-Type Piston Rod Seal Kit

Polyurethane UN Main Oil Seal

PU Hydraulic Cylinder Seal Kit

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

K01-R / K01-RE

Product Description

Product Technical Parameters
Material:
NBR / TPE / POM / PU / FKM
Pressure (max) Bar:
160
Temperature (max) °C:
-60 / +200
Sliding Speed (max) M/s:
0.5
Style:
Piston Seals
Application:
Double Acting Piston
Payment & Shipping Terms
Packaging Details:
Opp bags
Delivery Time:
7-15 work days
Payment Terms:
L/C, T/T, Paypal
Supply Ability:
100,000 pcs / month

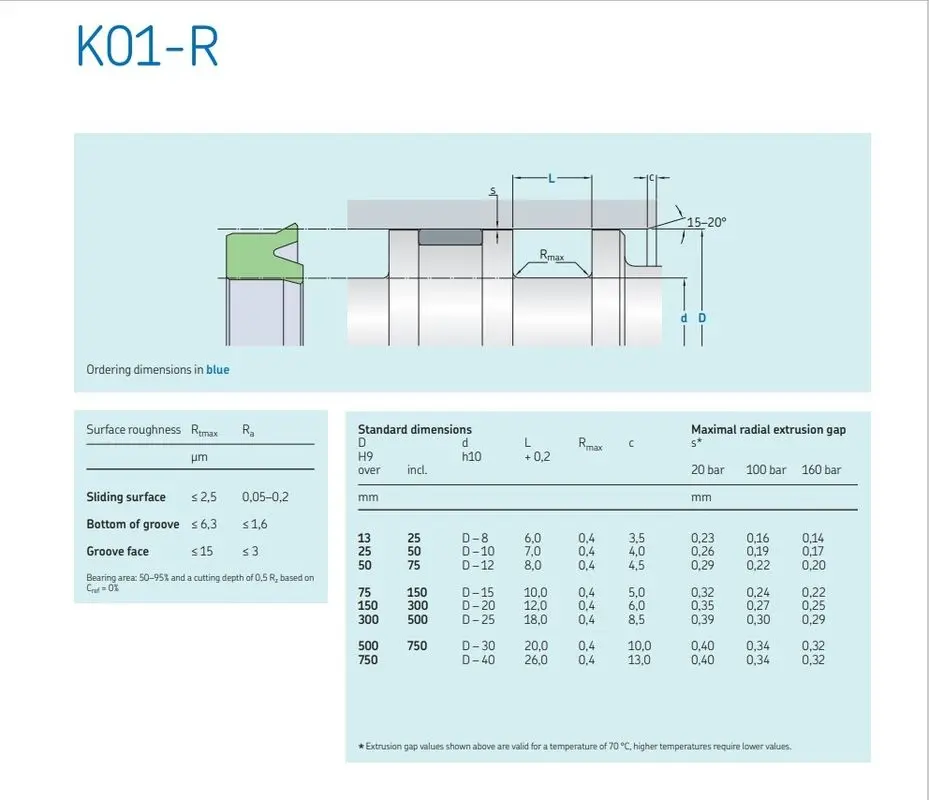

K01-R Piston Seals
Overview: Asymmetric piston seals designed for standard applications. These seals provide excellent results over a wide range of industrial uses.
  • High pressure resistance and reliability.
  • Back-to-back installation capability for dual-action pistons.
  • Application: Suitable for backwards and forwards action (e.g., pistons or pumps).

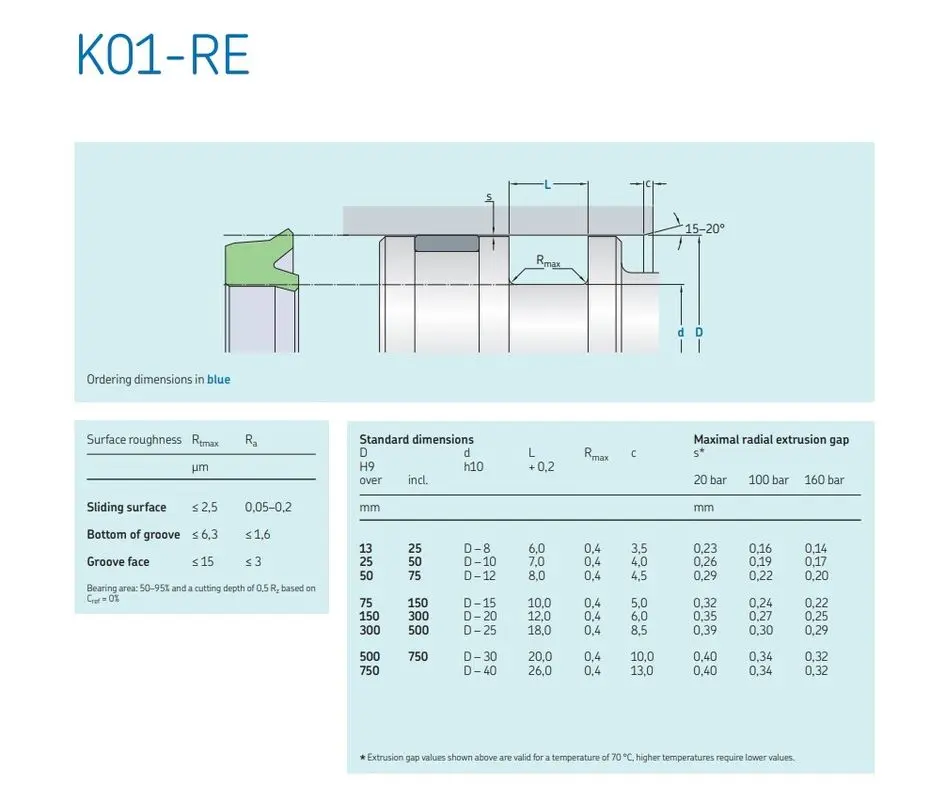

K01-RE Piston Seals
Overview: Asymmetric piston seals for standard applications with enhanced contact for high-stress environments.
  • Optimized for single acting piston seals under high stress.
  • Performance Specs: Temperature -60℃ to +200℃, Pressure up to 160 Bar.
  • Sliding Speed: Max 0.5 M/s.
  • Application: Versatile use in pump and cylinder backwards/forwards actions.
Frequently Asked Questions
What materials are these piston seals made of?
The seals are available in NBR, TPE, POM, PU, and FKM to suit different industrial requirements.
What is the maximum operating temperature?
These seals can withstand a wide temperature range from -60°C up to +200°C.
Can K01-R seals be used for double-acting pistons?
Yes, K01-R seals are designed for back-to-back installation, making them ideal for dual-action piston applications.
What is the typical lead time for delivery?
Standard delivery time ranges from 7 to 15 working days depending on the order size.
What is the maximum pressure these seals can handle?
Both K01-R and K01-RE models are rated for a maximum pressure of 160 Bar.
What payment methods do you accept?
We support multiple payment terms including L/C, T/T, and Paypal.
