Product Specifications
🟠
Material: PTFE NBR
🟠
Max Pressure: 300 Bar
🟠
Temperature: -30°C / +105°C
🟠
Sliding Speed: 5 M/s
🟠
MOQ: 100 Pcs
🟠
Supply Ability: 100,000 pcs / month
Overview & Features

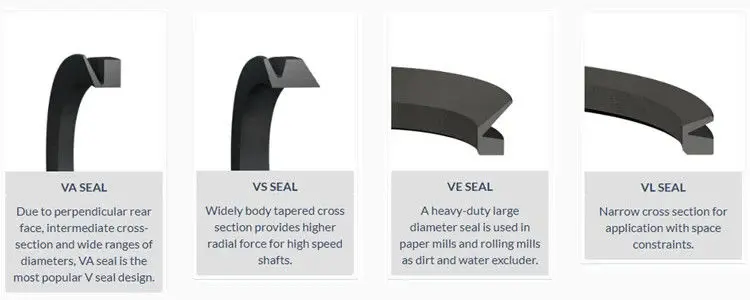

Type E V-rings features a straight back that serves as an unpressurized axial rod seal with a very small mounting length and is fixed to the shaft. The flexible lip seals an opposing face at a right angle to the axis preventing dirt, dust and splashes from entering the construction.

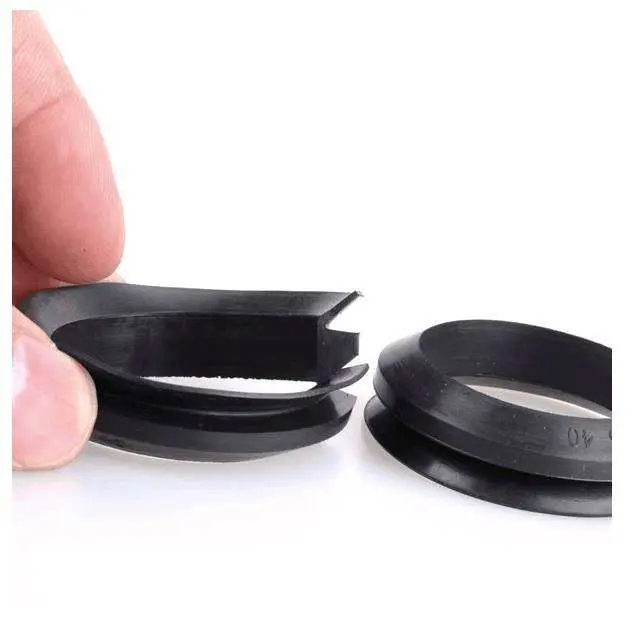

The V-Ring V-E is designed for heavy use and is applied in situations where larger axial tolerances are required. This profile is delivered for axles from Ø450 to Ø2010 mm. These heavy-duty, large-diameter seals allow for the largest axial displacements. They are commonly used as side seals and in rolling mills to exclude dirt and water. The V-Ring V-E styles can be stretched up to 2 1/2 times their original diameter as well.

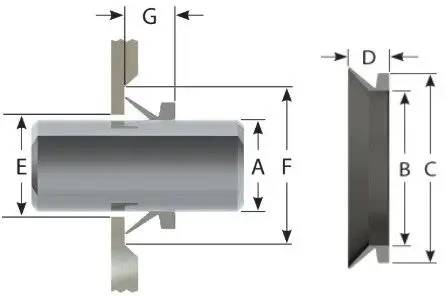

VE Style Size Chart
| Part Number |
Shaft Diameter (A) |
Seal I.D. (B) |
Part Number |
Shaft Diameter (A) |
Seal I.D. (B) |
Part Number |
Shaft Diameter (A) |
Seal I.D. (B) |
| VE 450 | 450.00-455.00 | 439.00 |
VE 670 | 670.00-680.00 | 650.00 |
VE 1040 | 1025.00-1045.00 | 990.00 |
| VE 455 | 455.00-460.00 | 444.00 |
VE 680 | 680.00-690.00 | 660.00 |
VE 1060 | 1045.00-1065.00 | 1008.00 |
| VE 460 | 460.00-465.00 | 448.00 |
VE 690 | 690.00-700.00 | 670.00 |
VE 1080 | 1065.00-1085.00 | 1027.00 |
| VE 470 | 470.00-475.00 | 458.00 |
VE 710 | 710.00-720.00 | 689.00 |
VE 1120 | 1105.00-1125.00 | 1065.00 |
| VE 500 | 500.00-505.00 | 488.00 |
VE 750 | 750.00-758.00 | 728.00 |
VE 1200 | 1185.00-1205.00 | 1139.00 |
| VE 600 | 600.00-610.00 | 582.00 |
VE 1000 | 999.00-1010.00 | 963.00 |
VE 2000 | 1955.00-2010.00 | 1844.00 |
Frequently Asked Questions
Q1: What is the primary function of the VE Type V-Ring?
A: The VE Type V-ring serves as an unpressurized axial rod seal designed to prevent dirt, dust, and water splashes from entering the construction, especially in heavy-duty applications.
Q2: What materials are these rotary seals made of?
A: These seals are manufactured using high-quality PTFE and NBR materials, ensuring durability and high-pressure resistance.
Q3: Can these seals handle high-pressure environments?
A: Yes, they are designed to withstand a maximum pressure of up to 300 Bar.
Q4: What is the recommended shaft diameter range for the VE style?
A: The VE profile is specifically designed for large-diameter axles ranging from 450 mm to 2010 mm.
Q5: How flexible are these V-Ring seals?
A: They are highly flexible and can be stretched up to 2.5 times their original diameter to facilitate installation and accommodate axial displacements.
Q6: What are the standard delivery and payment terms?
A: The standard delivery time is approximately 15 days, and we accept payment via L/C and T/T.
