KL40 is a specialized two-piece double-acting sealing set designed for high-performance hydraulic systems. It consists of a high-hardness polyurethane (PU) seal ring combined with an NBR elastomer ring which functions as the energizer. This combination ensures superior sealing capacity in heavy-duty applications, providing exceptional resistance against wear, pressure, and extrusion.

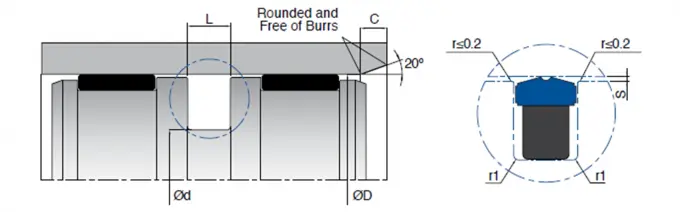

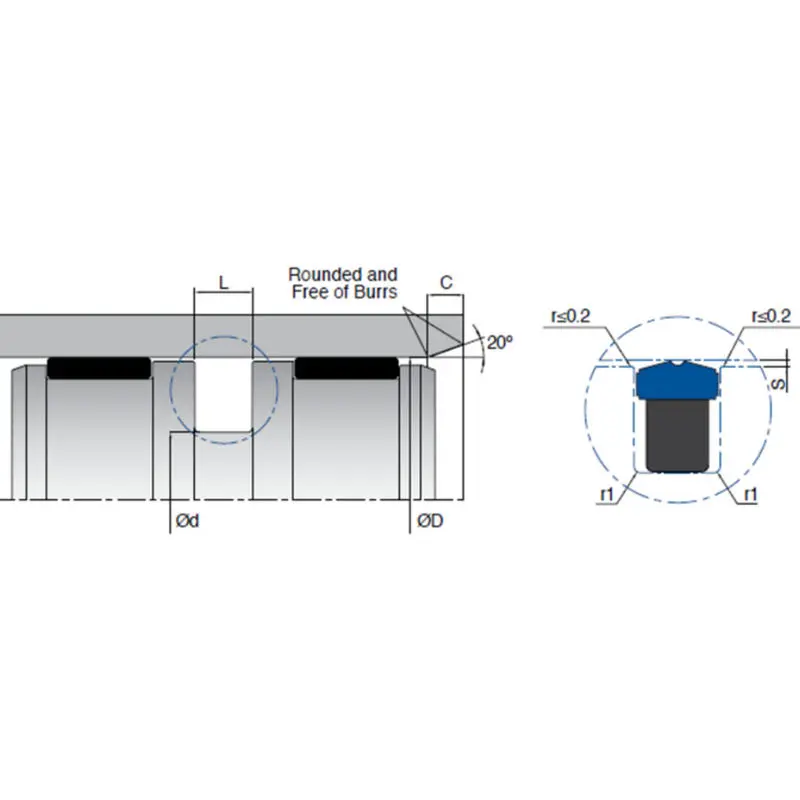

| Model Reference | D (H9) | d (h9) | L (+0.2/-0) | r1 | C | Material |
| KL40 025-017.5 | 25 | 17.5 | 3.2 | 0.5 | 2 | PU |
| KL40 028-020.5 | 28 | 20.5 | 3.2 | 0.5 | 2 | PU |
| KL40 032-021 | 32 | 21 | 4.2 | 0.5 | 2.5 | PU |
| KL40 032-024.5 | 32 | 24.5 | 3.2 | 0.5 | 2 | PU |
| KL40 035-024 | 35 | 24 | 4.2 | 0.5 | 2.5 | PU |
| KL40 040-029 | 40 | 29 | 4.2 | 0.5 | 2.5 | PU |
| KL40 045-034 | 45 | 34 | 4.2 | 0.5 | 2.5 | PU |
| KL40 050-039 | 50 | 39 | 4.2 | 0.5 | 2.5 | PU |
| KL40 055-039.5 | 55 | 39.5 | 6.3 | 0.5 | 3 | PU |
| KL40 055-044 | 55 | 44 | 4.2 | 0.5 | 2.5 | PU |
| KL40 060-044.5 | 60 | 44.5 | 6.3 | 0.5 | 3 | PU |
| KL40 060-049 | 60 | 49 | 4.2 | 0.5 | 2.5 | PU |
| KL40 063-047.5 | 63 | 47.5 | 6.3 | 0.5 | 3 | PU |
| KL40 063-052 | 63 | 52 | 4.2 | 0.5 | 2.5 | PU |
| KL40 065-049.5 | 65 | 49.5 | 6.3 | 0.9 | 4 | PU |
| KL40 065-054 | 65 | 54 | 4.2 | 0.9 | 2.5 | PU |
| KL40 070-054.5 | 70 | 54.5 | 6.3 | 0.9 | 4 | PU |
| KL40 070-059 | 70 | 59 | 4.2 | 0.9 | 2.5 | PU |
| KL40 075-059.5 | 75 | 59.5 | 6.3 | 0.9 | 4 | PU |
| KL40 075-064 | 75 | 64 | 4.2 | 0.9 | 2.5 | PU |
| KL40 080-064.5 | 80 | 64.5 | 6.3 | 0.9 | 4 | PU |
| KL40 085-069.5 | 85 | 69.5 | 6.3 | 0.9 | 4 | PU |
| KL40 090-069 | 90 | 69 | 10.5 | 0.9 | 7 | PU |
| KL40 090-074.5 | 90 | 74.5 | 6.3 | 0.9 | 4 | PU |
| KL40 095-079.5 | 95 | 79.5 | 6.3 | 0.9 | 4 | PU |
| KL40 100-079 | 100 | 79 | 8.1 | 0.9 | 5 | PU |
| KL40 100-084.5 | 100 | 84.5 | 6.3 | 0.9 | 4 | PU |
| KL40 105-089.5 | 105 | 89.5 | 6.3 | 0.9 | 4 | PU |
| KL40 110-089 | 110 | 89 | 8.1 | 0.9 | 5 | PU |
| KL40 110-094.5 | 110 | 94.5 | 6.3 | 0.9 | 4 | PU |
| KL40 115-094 | 115 | 94 | 8.1 | 0.9 | 5 | PU |
| KL40 120-099 | 120 | 99 | 8.1 | 0.9 | 5 | PU |
| KL40 120-099/1 | 120 | 99 | 10.5 | 0.9 | 7 | PU |
| KL40 125-104 | 125 | 104 | 8.1 | 0.9 | 5 | PU |
| KL40 125-104/1 | 125 | 104 | 10.5 | 0.9 | 7 | PU |
| KL40 130-109 | 130 | 109 | 8.1 | 0.9 | 5 | PU |
| KL40 140-119 | 140 | 119 | 8.1 | 0.9 | 5 | PU |
| KL40 150-129 | 150 | 129 | 8.1 | 0.9 | 5 | PU |
| KL40 150-129/1 | 150 | 129 | 10.5 | 0.9 | 7 | PU |
| KL40 160-139 | 160 | 139 | 8.1 | 0.9 | 5 | PU |
| KL40 180-159 | 180 | 159 | 8.1 | 0.9 | 5 | PU |
| KL40 200-179 | 200 | 179 | 8.1 | 0.9 | 5 | PU |
