Discount Three Piece Hydraulic Piston Seals With Elastomeric Sealing Element / Guide Backup Rings Exporter, Companies

1 / 5

Discount Three Piece Hydraulic Piston Seals With Elastomeric Sealing Element / Guide Backup Rings Exporter, Companies

Three Piece Hydraulic Piston Seals

ISO9001 Hydraulic Piston Seals

Three Piece Piston Hydraulic Seals

Place of Origin:

China

Brand Name:

Cologne

Certification:

ISO9001 / IRIS

Model Number:

KL28

Send Inquiry

Product Description

Product Specifications

Material & Technical

Material: NBR / FABRIC NBR / POM

Pressure (max) Bar: 400

Temperature (max) °C: -30/+100

Sliding Speed (max): 0.5 M/s

Style: Hydraulic Piston Seals

Logistic & Supply

Packaging: Opp bags

Delivery Time: 7-15 work days

Payment Terms: L/C, T/T, Paypal

Supply Ability: 100,000 pcs / month

Three Piece Double Acting Compact Seal

KL28 is a three piece double acting compact seal which consists of one fabric reinforced elastomeric sealing element and two thermoplastic guide backup rings. The self-lubricating sealing ring allow KL28 to work safely in systems with insufficient lubrication as well as rough surfaces.

Core Advantages

Good dynamic and static sealing
Good sealing at heavy duty applications
Long service life
High wear resistance
Free of stick-slip even at long stand by

Area of Application

Mining industry
Marine hydraulics
Iron and steel industry
Presses

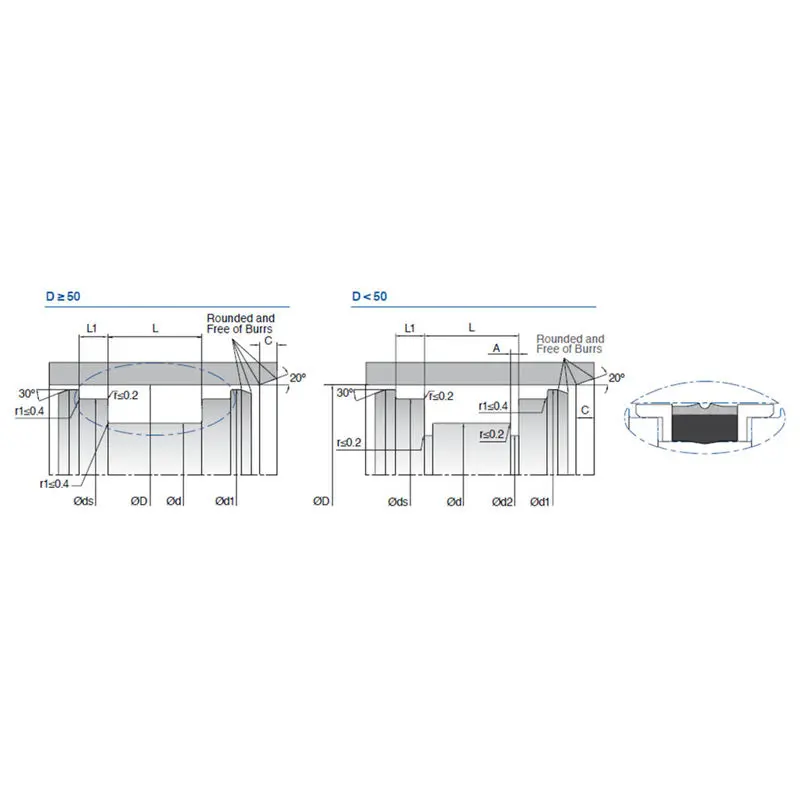

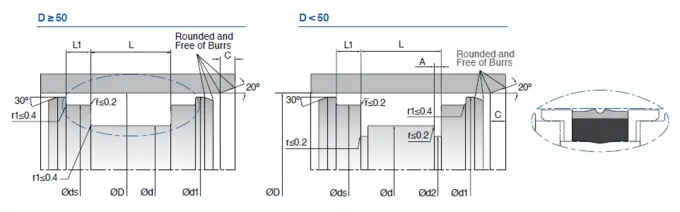

Technical Dimensions Data

Model	D (H10)	d (h11)	L (+0.2/-0)	ds (h8)	d1 (±0.1)	d2 (+0/-0.1)	A (+0.1/-0)	L1	C	Material
KL28 025-017	25	17	13.5	21	24.4	14	2.1	3.2	4	FB
KL28 030-021	30	21	13.5	27	29.4	21	2.2	2.1	4	FB
KL28 030-022	30	22	13.5	26	29.4	19	2.1	3.2	4	FB
KL28 032-024	32	24	15.5	28	31.4	21	3.1	3.2	4	FB
KL28 035-027	35	27	15.5	31	34.4	24	3.1	3.2	4	FB
KL28 040-032	40	32	15.5	36	39.4	29	3.1	3.2	4	FB
KL28 045-037	45	37	15.5	41	44.4	34	3.1	3.2	4	FB
KL28 050-038	50	38	20.5	46	49.4	-	-	4.2	4	FB
KL28 060-048	60	48	20.5	56	59.4	-	-	4.2	4	FB
KL28 063-051	63	51	20.5	59	62.4	-	-	4.2	4	FB
KL28 065-053	65	53	20.5	61	64.4	-	-	4.85	4	FB
KL28 070-058	70	58	20.5	66	69.4	-	-	4.2	4	FB
KL28 075-063	75	63	20.5	71	69.4	-	-	4.2	4	FB
KL28 080-065	80	65	20	76	78.5	-	-	5	5	FB
KL28 080-066	80	66	22.5	76	79.4	-	-	5.2	4.5	FB
KL28 085-071	85	71	22.5	81	84.4	-	-	5.2	4.5	FB
KL28 090-076	90	76	22.5	86	89.4	-	-	5.2	4.5	FB
KL28 100-086	100	86	22.5	96	99.4	-	-	5.2	4.5	FB
KL28 110-096	110	96	22.5	106	109.4	-	-	5.2	4.5	FB
KL28 115-101	115	101	22.5	111	114.4	-	-	5.2	4.5	FB
KL28 120-106	120	106	22.5	116	119.4	-	-	5.2	4.5	FB
KL28 125-103	125	103	26.5	121	124.4	-	-	5.2	6	FB
KL28 125-108	125	108	26.5	121	124.4	-	-	7.2	5	FB
KL28 140-123	140	123	26.5	136	139.4	-	-	7.2	5	FB
KL28 150-133	150	133	26.5	146	149.4	-	-	7.2	5	FB
KL28 160-140	160	140	25	155	158	-	-	6.3	6	FB
KL28 160-143	160	143	26.5	156	159.4	-	-	7.2	5	FB
KL28 170-153	170	153	26.5	166	169.4	-	-	7.2	5	FB
KL28 180-163	180	163	26.5	176	179.4	-	-	7.2	5	FB
KL28 200-180	200	180	31.5	196	199.4	-	-	9.2	6	FB
KL28 220-200	220	200	31.5	216	219.4	-	-	9.2	6	FB
KL28 250-225	250	225	31.5	246	249.4	-	-	6.6	6	FB
KL28 250-230	250	230	31.5	246	249.4	-	-	9.2	6	FB

Frequently Asked Questions

What materials are used in the KL28 compact seal?

The KL28 seal is constructed from NBR, Fabric reinforced NBR, and POM (thermoplastic guide backup rings).

What is the maximum pressure capacity of this seal?

The KL28 hydraulic piston seal can withstand a maximum pressure of up to 400 Bar.

What are the primary applications for the KL28 seal?

It is ideal for heavy-duty applications including the mining industry, marine hydraulics, iron and steel industry, and various presses.

How does the self-lubricating feature benefit the system?

The self-lubricating sealing ring allows the KL28 to operate safely even in systems with insufficient lubrication or on rougher surfaces.

What is the temperature range for these piston seals?

The seals are designed to operate effectively in temperatures ranging from -30°C to +100°C.

What is the standard lead time and supply capacity?

Standard delivery takes 7-15 work days, with a monthly supply ability of 100,000 pieces.
