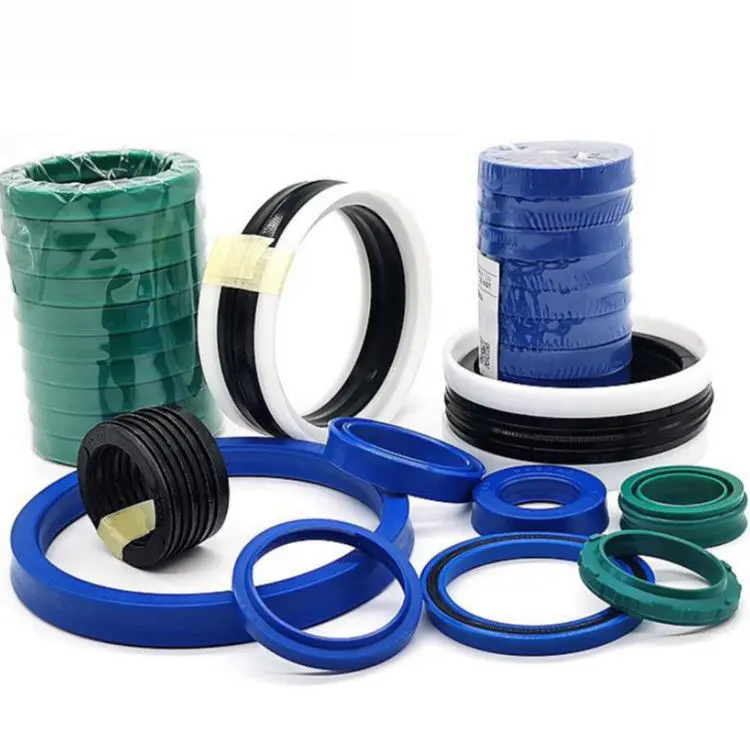

Single Acting Symmetrical U-Cup Be Produced From Polyurethane Material For Use In Light Duty Cylinders.
KL20 is an innovative rod seal developed for challenging high temperature applications that require both extrusion resistance and low leakage.

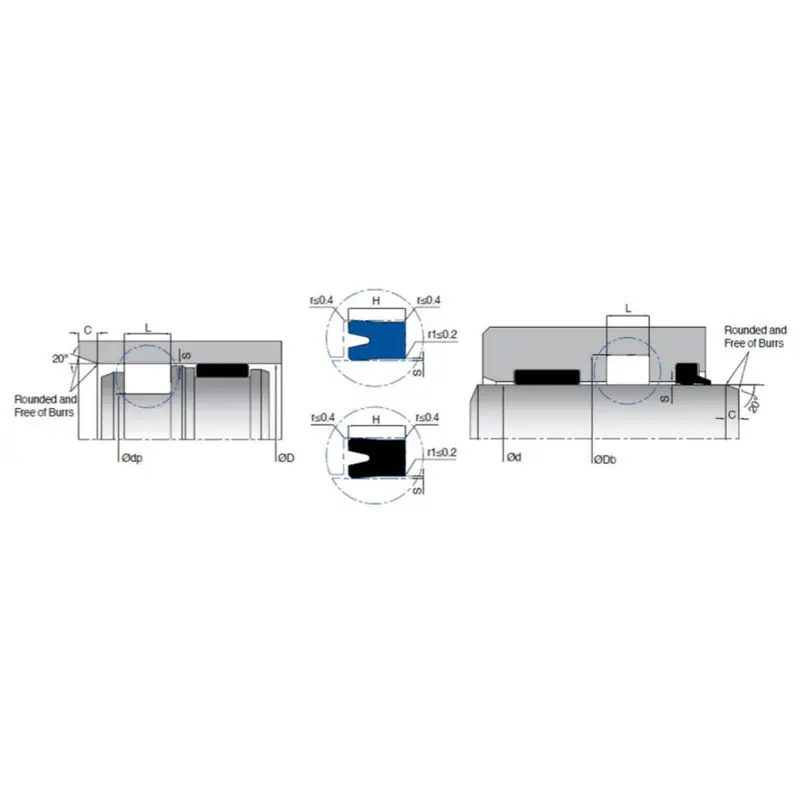

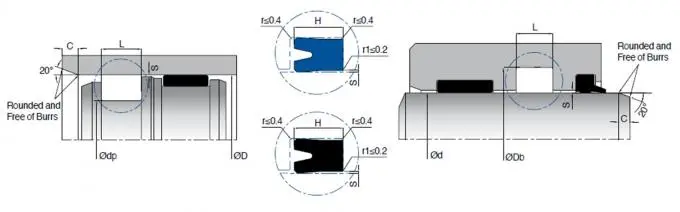

| Model | d(f7) dp(h11) | Db(H10) D(H10) | L (+0.2/-0) | H | C | MATERIAL |
|---|---|---|---|---|---|---|
| K20-003/5 | 3 | 8 | 5 | 4.5 | 3 | NBR |
| K20-004 | 4 | 10 | 6 | 5 | 3.5 | NBR |
| K20-004/2 | 4 | 12 | 4.5 | 4 | 4.5 | NBR |
| K20-004/3 | 4 | 10 | 4.5 | 4 | 3.5 | NBR |
| K20-004/3 PU | 4 | 10 | 4.5 | 4 | 3.5 | PU |
| K20-004/4 | 4 | 7.5 | 3.5 | 3 | 2.5 | NBR |
| K20-004/6 | 4 | 10 | 7 | 6 | 3.5 | NBR |
| K20-004/6 PU | 4 | 10 | 7 | 6 | 3.5 | PU |
| K20-005/2 | 5 | 11 | 6 | 5 | 3.5 | NBR |
| K20-005/2 PU | 5 | 11 | 6 | 5 | 3.5 | PU |
| K20-005/4 | 5 | 10 | 6 | 5 | 3 | NBR |
| K20-005/4 PU | 5 | 10 | 6 | 5 | 3 | PU |
| K20-005/5 | 5 | 9 | 2.9 | 2.4 | 2.5 | NBR |
| K20-005/6 | 5 | 12 | 6 | 5 | 4 | NBR |
| K20-005/6 PU | 5 | 12 | 6 | 5 | 4 | PU |
| K20-005/8 | 5 | 12 | 4.5 | 4 | 4 | NBR |
| K20-006 | 6 | 9 | 2.5 | 2 | 2 | NBR |
| K20-006/1 | 6 | 12 | 7 | 6 | 3.5 | NBR |
| K20-006/1 PU | 6 | 12 | 7 | 6 | 3.5 | PU |
| K20-006/2 | 6 | 12 | 8 | 7 | 3.5 | NBR |
| K20-006/2 PU | 6 | 12 | 8 | 7 | 3.5 | PU |
| K20-006/3 | 6 | 10 | 3.5 | 3 | 2.5 | NBR |
| K20-006/3 PU | 6 | 10 | 3.5 | 3 | 2.5 | PU |
| K20-006/6 | 6 | 12 | 4.5 | 4 | 3.5 | NBR |
| K20-006/6 PU | 6 | 12 | 4.5 | 4 | 3.5 | PU |
| K20-006/9 | 6 | 13 | 6.5 | 5.5 | 4 | NBR |
| K20-006/9 PU | 6 | 13 | 6.5 | 5.5 | 4 | PU |
| K20-006/12 | 6 | 14 | 4.5 | 4 | 4 | NBR |
| K20-006/12 PU | 6 | 14 | 4.5 | 4 | 4 | PU |
| K20-006/14 | 6 | 12 | 6 | 5 | 3.5 | NBR |
| K20-007/5 | 7 | 12 | 4.5 | 4 | 3 | NBR |
| K20-008 | 8 | 18 | 9 | 8 | 5.5 | NBR |
| K20-008 PU | 8 | 18 | 9 | 8 | 5.5 | PU |
| K20-008/1 | 8 | 14 | 7 | 6 | 3.5 | NBR |
| K20-008/1 PU | 8 | 14 | 7 | 6 | 3.5 | PU |
| K20-008/2 | 8 | 16 | 7 | 6 | 4.5 | NBR |
| K20-008/2 PU | 8 | 16 | 7 | 6 | 4.5 | PU |
| K20-008/3 | 8 | 16 | 9 | 8 | 4.5 | NBR |
| K20-008/3 PU | 8 | 16 | 9 | 8 | 4.5 | PU |
| K20-008/5 | 8 | 14 | 4.5 | 4 | 3.5 | NBR |
| K20-008/5 PU | 8 | 14 | 4.5 | 4 | 3.5 | PU |
| K20-008/8 | 8 | 12 | 6 | 5 | 2.5 | NBR |
| K20-008/10 | 8 | 15 | 7 | 6 | 4 | NBR |
| K20-008/16 | 8 | 12 | 4.5 | 4 | 2.5 | NBR |
| K20-008/16 PU | 8 | 12 | 4.5 | 4 | 2.5 | PU |
| K20-009/1 | 9 | 19 | 7 | 6 | 5.5 | NBR |
| K20-009/1 PU | 9 | 19 | 7 | 6 | 5.5 | PU |
| K20-009/2 | 9 | 16 | 4.5 | 4 | 4 | NBR |
| K20-009/2 PU | 9 | 16 | 4.5 | 4 | 4 | PU |
