Product Detail
Temperature (max)
-30/+100 °C
Pressure (max)
250 Bar
Material
NBR / FABRIC NBR
Sliding Speed (max)
0.5 M/s
Style
Hydraulic Rod Seals
Application
Industrial Cylinders
Payment & Shipping Terms
Packaging Details
Opp bag
Delivery Time
7-15 work days
Payment Terms
L/C, T/T, Paypal
Supply Ability
100,000 pcs /months
📋 Description
KL13 is a single acting rod seal consisting of fabric elastomer at the back side and elastomer at the front side. It is specifically designed for standard cylinder applications, providing reliable sealing performance.
🎉 Advantages
- High extrusion resistance even under demanding conditions.
- Optimum performance under variable pressure levels.
- Enhanced durability with fabric-reinforced elastomer.
🏭 Area of Application
- Mobile machinery and equipment.
- Standard industrial hydraulic cylinders.

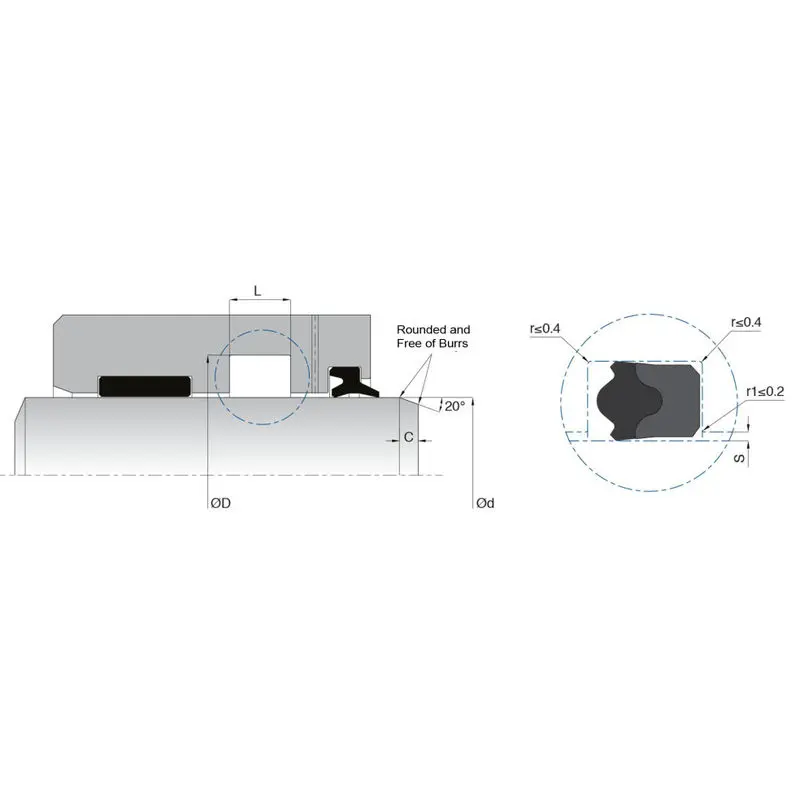

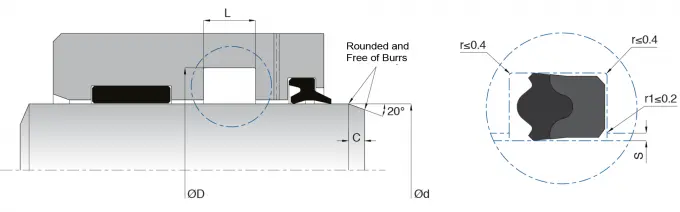

📊 Technical Specifications
| Model No. |
d (f8) |
D (H8) |
L (+0.2/-0) |
C |
Material |
| KL13-020 | 20 | 28 | 6.3 | 2.5 | NBR |
| KL13-022 | 22 | 30 | 6.3 | 2.5 | NBR |
| KL13-025 | 25 | 33 | 6.3 | 2.5 | NBR |
| KL13-028 | 28 | 36 | 6.3 | 2.5 | NBR |
| KL13-030 | 30 | 38 | 6.3 | 2.5 | NBR |
| KL13-030/1 | 30 | 42 | 9 | 3 | NBR |
| KL13-035 | 35 | 43 | 6.3 | 2.5 | NBR |
| KL13-040 | 40 | 48 | 6.3 | 2.5 | NBR |
| KL13-045 | 45 | 55 | 8 | 3 | NBR |
| KL13-050 | 50 | 60 | 8 | 3 | NBR |
| KL13-055 | 55 | 65 | 8 | 3 | NBR |
| KL13-060 | 60 | 70 | 8 | 3 | NBR |
| KL13-065 | 65 | 77 | 9.5 | 3 | NBR |
| KL13-110 | 110 | 125 | 12 | 4.5 | NBR |
Frequently Asked Questions
What are the primary advantages of the KL13 rod seal?
The KL13 offers high extrusion resistance and maintains optimum performance even under variable pressure levels due to its unique fabric-reinforced elastomer design.
Which industries typically use KL13 seals?
These seals are widely used in mobile machinery and standard industrial hydraulic cylinders for reliable single-acting sealing.
What is the operating temperature range for this seal?
The KL13 rod seal is designed to operate effectively in temperatures ranging from -30°C to +100°C.
What materials are used in the construction of KL13?
It is constructed using a combination of NBR (Nitrile Rubber) and Fabric-reinforced NBR on the back side to prevent extrusion.
What is the maximum pressure and speed the seal can handle?
The seal supports a maximum pressure of 250 Bar and a maximum sliding speed of 0.5 meters per second.
What are the standard delivery and payment terms?
Typical delivery time is 7-15 working days. We accept various payment methods including L/C, T/T, and Paypal.
