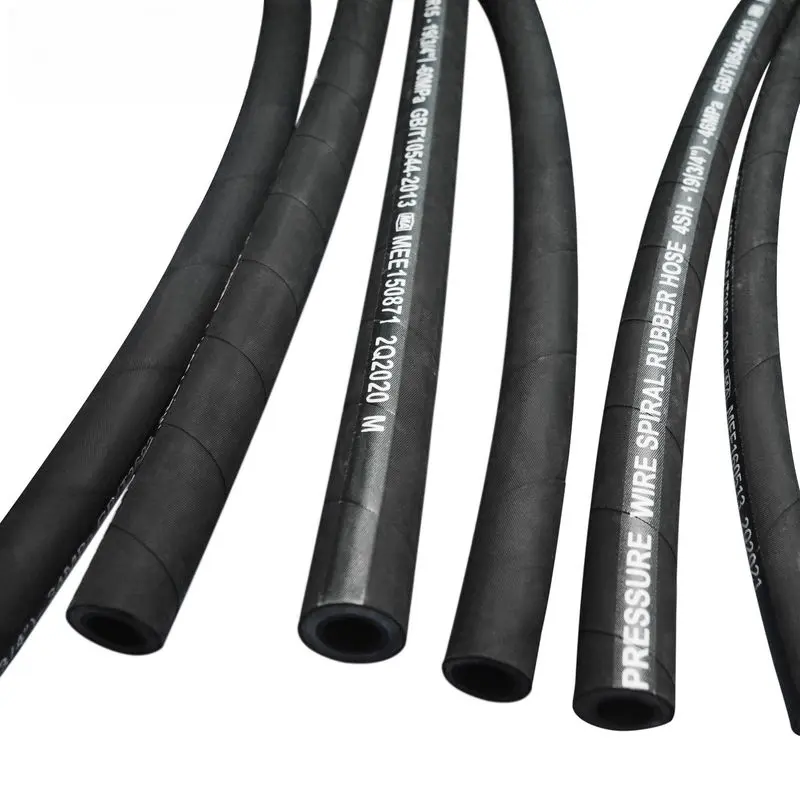

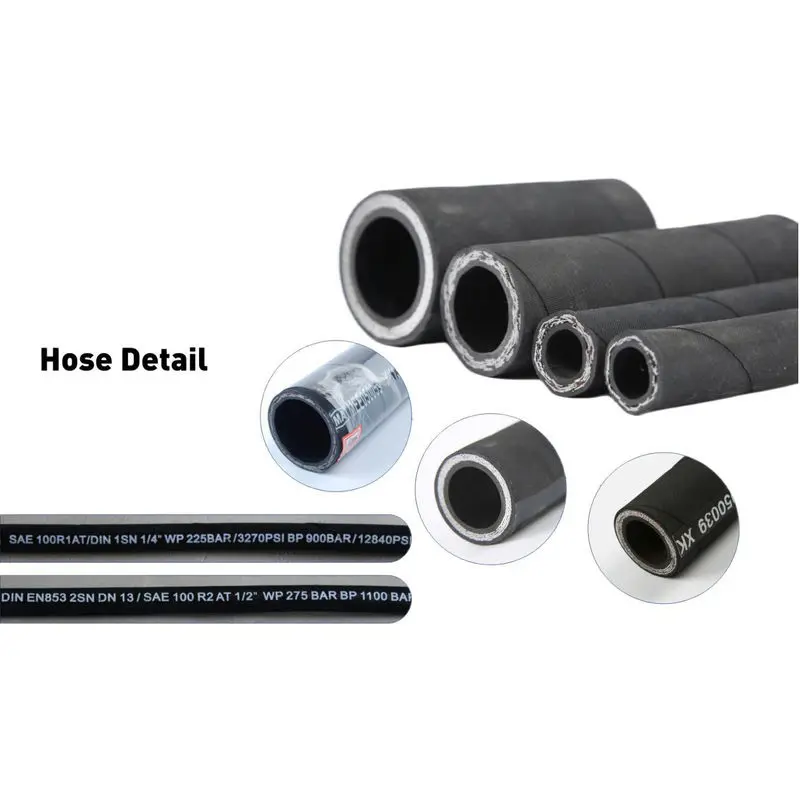

Tube: High-quality black oil-resistant synthetic rubber ensures smooth flow and chemical stability.
Reinforcement: Four layers of high tensile and high-strength thick spiraled steel wire in alternating directions for maximum pressure containment.
Cover: High-quality black synthetic rubber designed for abrasion, weather, and corrosion resistance.
| Hose Code | Size | Dash Size | ID (mm) | WD (mm) | Working Pressure | Min Burst Pressure | Min Bending Radius | Weight (kg/m) | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | min | max | min | max | MPa | psi | MPa | psi | ||||
| SAE100R1-01 | 5 | 3/16 | -3 | 4.6 | 5.4 | 8.9 | 10.1 | 21 | 3045 | 84 | 12810 | 90 | 0.2 |
| SAE100R1-02 | 6.3 | 1/4 | -4 | 6.2 | 7 | 10.6 | 11.7 | 19.2 | 2780 | 77 | 11165 | 100 | 0.25 |
| SAE100R1-05 | 12.5 | 1/2 | -8 | 12.3 | 13.5 | 17.5 | 19 | 14 | 2030 | 56 | 8120 | 180 | 0.45 |
| SAE100R1-08 | 25 | 1 | -16 | 25 | 26.4 | 32.5 | 34.1 | 7 | 1015 | 28 | 4060 | 300 | 0.91 |
| Hose Code | Size (inch) | ID min/max | WD min/max | Working Pressure (MPa) | Proof Pressure (MPa) | Min Burst (MPa) | Bending (mm) | Weight (kg/m) |
|---|---|---|---|---|---|---|---|---|
| SAE100R2-02 | 1/4 | 6.2/7.0 | 12.1/13.3 | 35 | 70 | 140 | 100 | 0.36 |
| SAE100R2-05 | 1/2 | 12.3/13.5 | 19.0/20.6 | 24.5 | 49 | 98 | 180 | 0.68 |
| SAE100R2-08 | 1 | 25.0/26.4 | 34.1/35.7 | 14 | 28 | 56 | 300 | 1.35 |
| Hose Code | Size (inch) | ID (mm) | OD (mm) | Working Pressure (PSI) | Min Burst (PSI) | Bending Radius (mm) |
|---|---|---|---|---|---|---|
| SAE100R7-02 | 1/4 | 6.3 | 12.7 | 2780 | 11165 | 100 |
| SAE100R8-02 | 1/4 | 6.3 | 16.8 | 5075 | 20300 | 100 |
| SAE100R8-04 | 1/2 | 12.8 | 24.6 | 3550 | 14210 | 180 |
