Polyester Fiber Hydraulic Guide Ring

Phenolic Resin Hydraulic Guide Ring

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KL59

Send Inquiry

Product Description

Product Specifications
Technical Details
Name: KL59 Hydraulic Guide Ring
Material: Polyester Fiber, Phenolic Resin
Temperature (max): -40 / +120 °C
Sliding Speed (max): 1.0 M/s
Style: Hydraulic Guiding Elements
Application: Mining Industry / Heavy Duty Cylinders
Logistics & Supply
Packaging: Opp bags
Delivery Time: 7-15 work days
Payment Terms: L/C, T/T, Paypal
Supply Ability: 100,000 pcs / months
Product Overview

KL59 piston-rod guide rings are composite guiding elements produced from high-quality polyester fabric and phenolic resin. These materials ensure a exceptionally high load carrying capacity, specifically engineered for both rod and piston applications within complex hydraulic systems.

✔
Low Friction
Optimized coefficient of friction for smooth operation.
✔
High Load Capacity
Excellent bearing performance under heavy pressure.
✔
Form Stability
Maintains shape perfectly at peak operating temperatures.
✔
Low Swelling
Minimal dimensional changes when exposed to hydraulic fluids.
Key Application Areas
✦ Mobile machinery
✦ Mining industry
✦ Excavators
✦ Industrial Presses
✦ Heavy duty cylinders

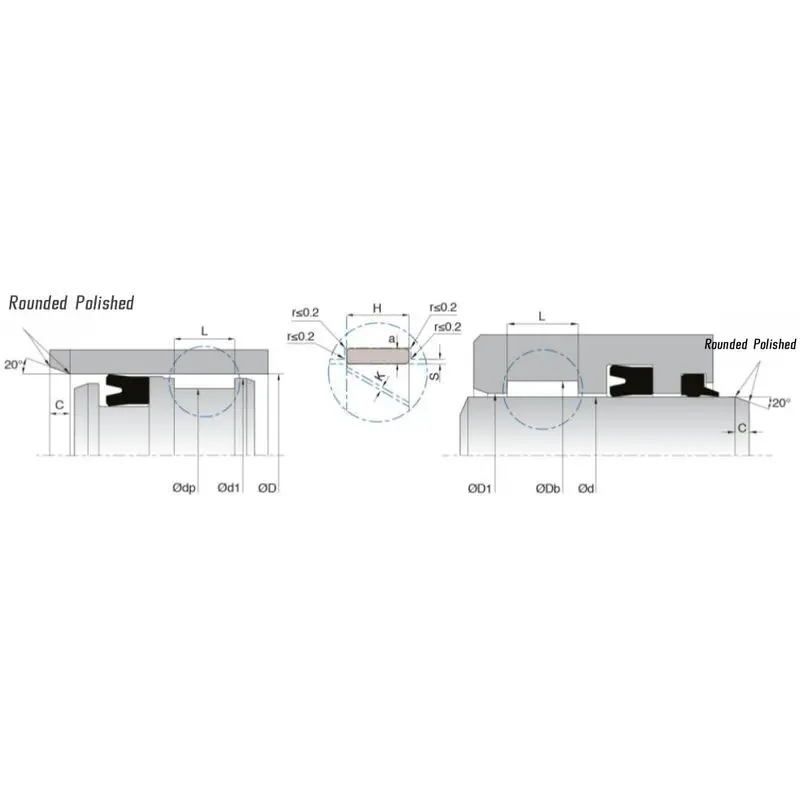

KL59 Hydraulic Guide Ring Detail
Dimension Reference Table
Model Number a (mm) L (+0.2/-0) H (mm) Diameter Range Material
KL59-2.5X152.51514.8Ø60 - Ø80Phenolic Resin
KL59-2.5X15/12.51514.8Ø80 - Ø100Phenolic Resin
KL59-2.5X15/22.51514.8Ø100 - Ø150Phenolic Resin
KL59-2.5X202.52019.8Ø150 - Ø200Phenolic Resin
KL59-2.5X252.52524.8Ø130 - Ø150Phenolic Resin
KL59-2.5X25/12.52524.8Ø80 - Ø100Phenolic Resin
KL59-2.5X25/22.52524.8Ø150 - Ø200Phenolic Resin
KL59-2.5X9.72.59.79.5Ø40 - Ø60Phenolic Resin
KL59-2.5X9.7/12.59.79.5Ø60 - Ø80Phenolic Resin
KL59-2.5X9.7/22.59.79.5Ø80 - Ø100Phenolic Resin
KL59-2.5X9.7/32.59.79.5Ø100 - Ø125Phenolic Resin
Frequently Asked Questions
What materials are used in the KL59 Guide Ring?
The KL59 guide rings are manufactured using a high-performance composite of polyester fabric and phenolic resin, which ensures durability and high load resistance.
What is the temperature range for these guiding elements?
The guide rings are designed to operate effectively within a temperature range of -40°C to +120°C, making them suitable for various industrial environments.
Can KL59 be used for both pistons and rods?
Yes, the KL59 is versatile and specifically designed to be used in both rod and piston applications within hydraulic systems.
What are the primary industries for this product?
Common applications include the mining industry, heavy-duty cylinders, mobile machinery like excavators, and industrial presses.
What is the typical lead time for an order?
Standard delivery time ranges between 7 to 15 working days depending on the order volume and specific requirements.
Do these guide rings resist swelling?
Yes, one of the key advantages of the phenolic resin and polyester composite is its very low swelling property when exposed to hydraulic fluids.
