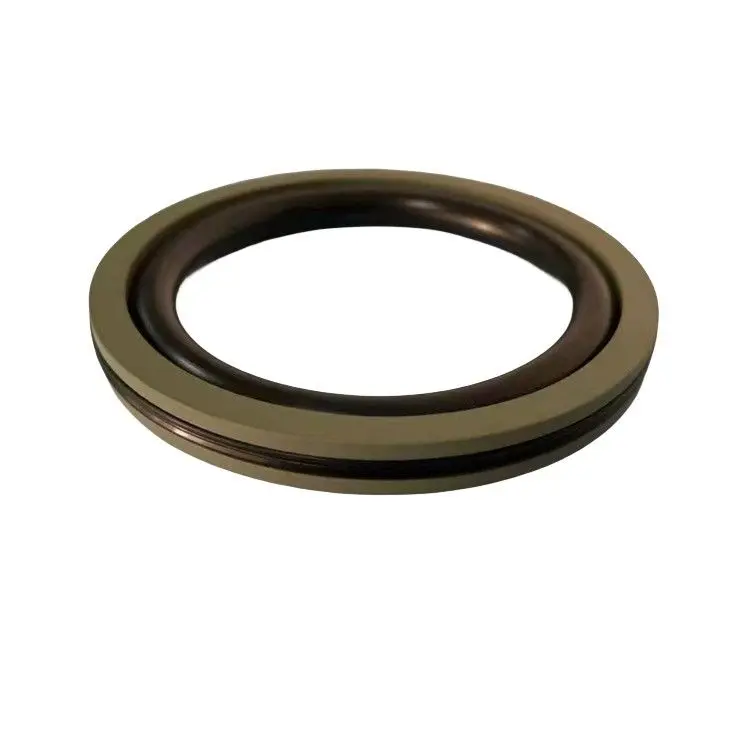

AQ5 Purpose and Performance

AQ5 is suitable for working conditions with fast speed, high pressure and pressure maintenance. It can be used with piston accumulators, clamping cylinders and positioning cylinders, especially recommended for heavy duty and large diameter applications.

Key Advantages: Dual security of low friction and high elasticity, low gas permeability, excellent sliding performance in high-pressure applications, no crawling phenomenon, simple groove structure, and easy installation.

Standard Materials & Ordering

Standard Materials:

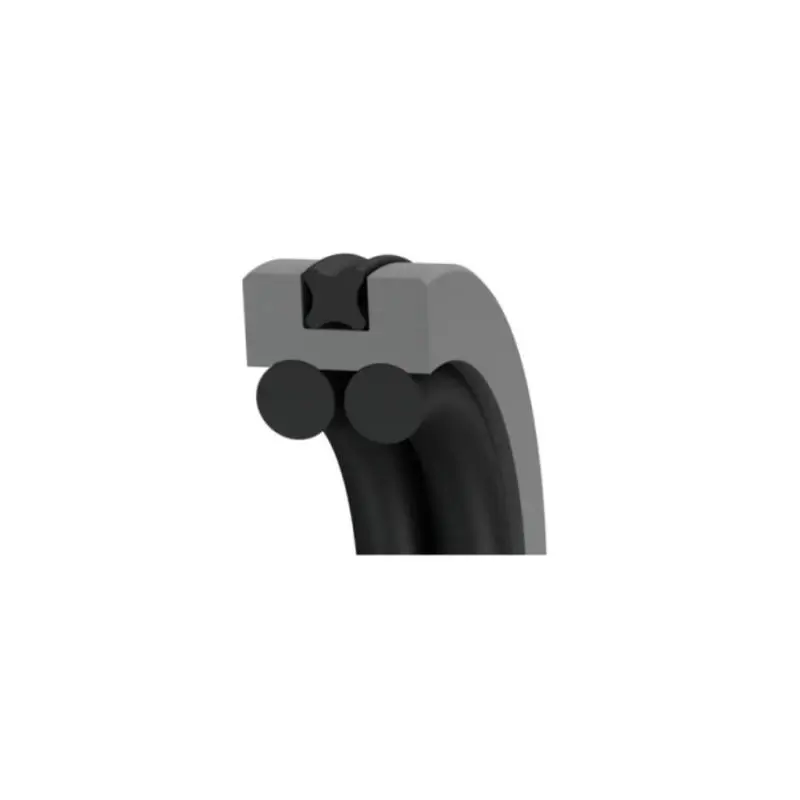

• Seal ring: Filled with polytetrafluoroethylene PTFE
• O-ring: Nitrile rubber NBR or fluorine rubber FKM
• X-ring: Nitrile rubber NBR or fluorine rubber FKM

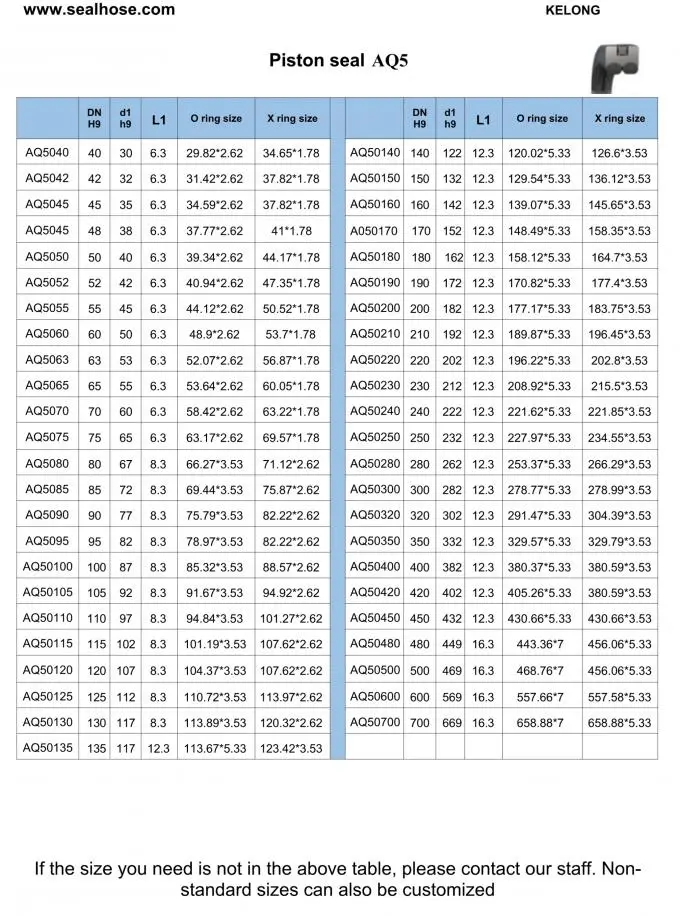

Ordering example: Bore size=100mm: AQ50100 or AQ5100*87*8.3
