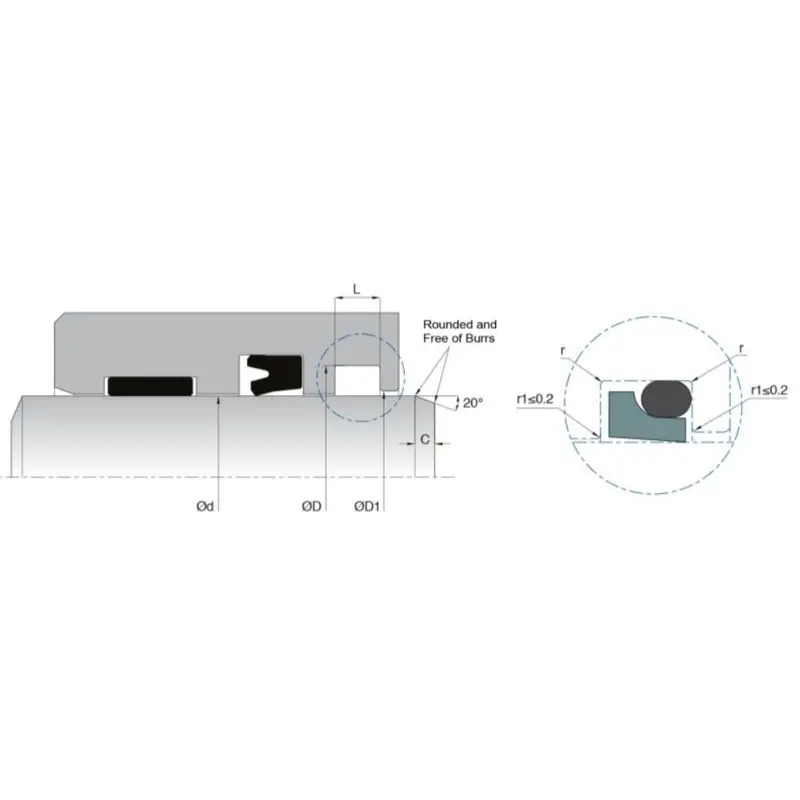

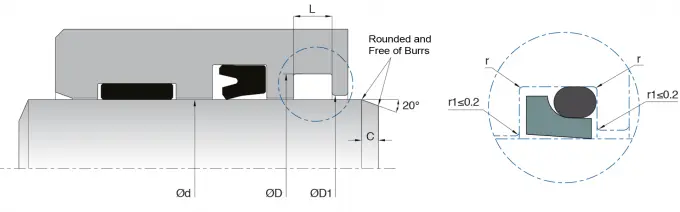

| Model No. | d (f8) | D (H9) | D1 (H11) | L (+0.2/-0) | r | C | Material |
|---|---|---|---|---|---|---|---|
| KL104-020 | 20 | 26.8 | 21.5 | 5 | 0.7 | 3 | PTFE |
| KL104-025 | 25 | 31.8 | 26.5 | 5 | 0.7 | 3 | PTFE |
| KL104-045 | 45 | 51.8 | 46.5 | 5 | 0.7 | 3 | PTFE |
| KL104-050 | 50 | 56.8 | 51.5 | 5 | 0.7 | 3 | PTFE |
| KL104-060 | 60 | 66.8 | 61.5 | 5 | 0.7 | 3 | PTFE |
| KL104-065 | 65 | 73.8 | 66.5 | 6 | 1 | 4 | PTFE |
| KL104-070 | 70 | 78.8 | 71.5 | 6 | 1 | 4 | PTFE |
| KL104-080 | 80 | 88.8 | 81.5 | 6 | 1 | 4 | PTFE |
| KL104-085 | 85 | 93.8 | 86.5 | 6 | 1 | 4 | PTFE |
| KL104-090 | 90 | 98.8 | 91.5 | 6 | 1 | 4 | PTFE |
| KL104-100 | 100 | 108.8 | 101.5 | 6 | 1 | 4 | PTFE |
| KL104-120 | 120 | 128.8 | 121.5 | 6 | 1 | 4 | PTFE |
| KL104-160 | 160 | 168.8 | 161.5 | 6 | 1 | 4 | PTFE |
| KL104-240 | 240 | 248.8 | 241.5 | 6 | 1 | 4 | PTFE |
| KL104-370 | 370 | 382.2 | 372 | 8.4 | 1.2 | 6 | PTFE |
