Discount Double Acting Piston Rod Seals Low friction Elastomer X Ring NBR Exporter, Product

Double Acting Piston Rod Seals

Elastomer X Ring NBR

Double Acting Rod Seals Low friction

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KL25

Send Inquiry

Product Description

Product Specifications

Style: Double Acting Piston Rod Seals

Material: NBR

Pressure (max): 50 Bar

Temperature Range: -30 / +105 °C

Sliding Speed (max): 0.5 M/s

Application: Light Duty Cylinders / Valves / Flanges

Performance Overview

X-rings are double acting seals made from elastomer materials, capable of working as dynamic or static seals in many systems. They can also be produced using FKM when high temperature or chemical resistance is required.

Key Advantages

✔Suitable for both static and dynamic applications
✔Wide application area
✔Low friction compared to o-rings
✔No twisting in the housing
✔Economical sealing solution for low pressure

Main Application Areas

➔Hydraulic and pneumatic static applications
➔Flanges and Valves
➔Light duty cylinders

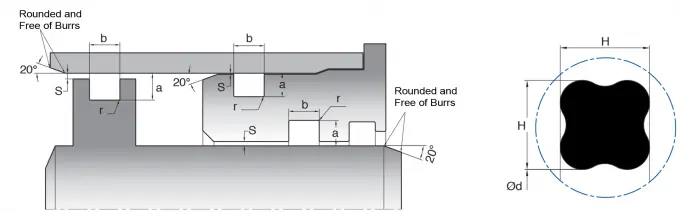

Double Acting Piston Rod Seals Low friction Elastomer X Ring NBR

Payment & Shipping Terms

Packaging Details:Opp bag

Delivery Time:7-15 work days

Payment Terms:L/C, T/T, Paypal

Supply Ability:100,000 pcs / month

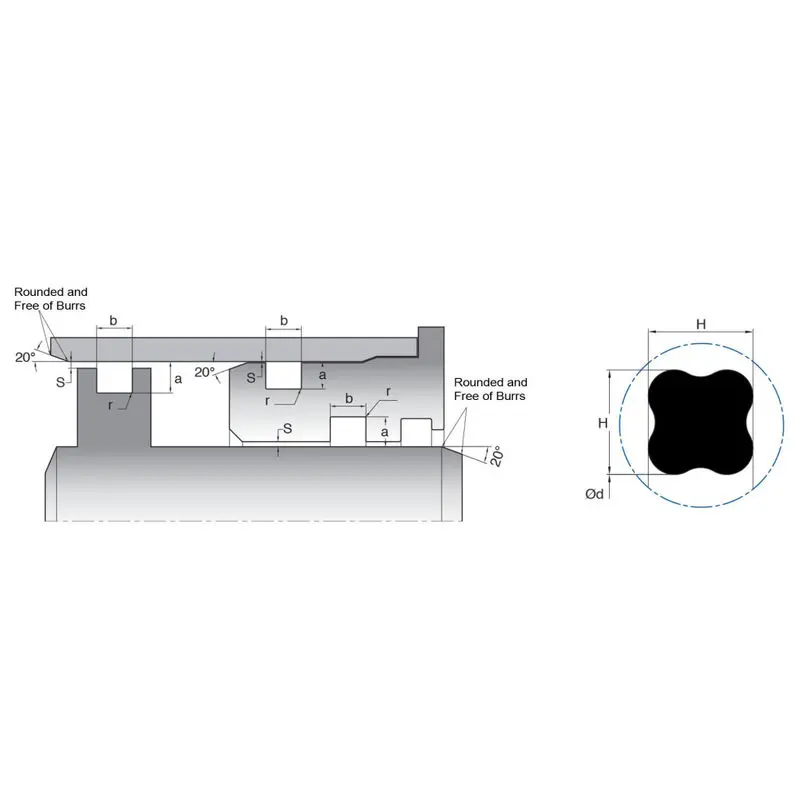

Dimensional Data Sheet

Model Number	d	H	(a) static	(a) dynamic	b (+0.2/-0)	r	s	Material
KL25-0044817	4.48	1.78	1.4	1.5	2	0.2	0.05	NBR
KL25-0052817	5.28	1.78	1.4	1.5	2	0.2	0.05	NBR
KL25-0060717	6.07	1.78	1.4	1.5	2	0.2	0.05	NBR
KL25-0076617	7.66	1.78	1.4	1.5	2	0.2	0.05	NBR
KL25-0082017	8.2	1.78	1.4	1.5	2	0.2	0.05	NBR
KL25-0092517	9.25	1.78	1.4	1.5	2	0.2	0.05	NBR
KL25-0107826	10.78	2.62	2.25	2.3	3	0.3	0.08	NBR
KL25-0123726	12.37	2.62	2.25	2.3	3	0.3	0.08	NBR
KL25-0124217	12.42	1.78	1.4	1.5	2	0.2	0.05	NBR
KL25-0139526	13.95	2.62	2.25	2.3	3	0.3	0.08	NBR
KL25-0154735	15.47	3.53	3.1	3.2	4	0.4	0.08	NBR
KL25-0186435	18.64	3.53	3.1	3.2	4	0.4	0.08	NBR
KL25-0202235	20.22	3.53	3.1	3.2	4	0.4	0.08	NBR
KL25-0251217	25.12	1.78	1.4	1.5	2	0.2	0.05	NBR
KL25-0374753	37.47	5.33	4.75	4.9	6	0.4	0.1	NBR
KL25-0501653	50.16	5.33	4.75	4.9	6	0.4	0.1	NBR
KL25-1009753	100.97	5.33	4.75	4.9	6	0.4	0.1	NBR
KL25-1581269	158.12	6.99	6.2	6.4	8	0.6	0.1	NBR
KL25-2152769	215.27	6.99	6.2	6.4	8	0.6	0.1	NBR
KL25-3552035	355.2	3.53	3.1	3.2	4	0.4	0.08	NBR

Frequently Asked Questions

What are the main benefits of using X-rings over standard O-rings?

X-rings provide lower friction, higher sealing efficiency, and prevent twisting in the seal groove during dynamic applications.

What is the maximum pressure these seals can handle?

These specific NBR double-acting piston rod seals are designed to handle pressures up to 50 Bar.

Can these seals be used in high-temperature environments?

The standard NBR material works up to +105°C. For higher temperatures, we can produce them using FKM material upon request.

What is the typical lead time for an order?

Our standard delivery time is 7-15 working days, depending on the order size and current supply ability.

Are X-rings suitable for both hydraulic and pneumatic systems?

Yes, they are highly effective for both hydraulic and pneumatic static applications, as well as light-duty cylinders.

How are the products packaged for shipping?

Products are typically packed in Opp bags to ensure they remain clean and protected during transit.
