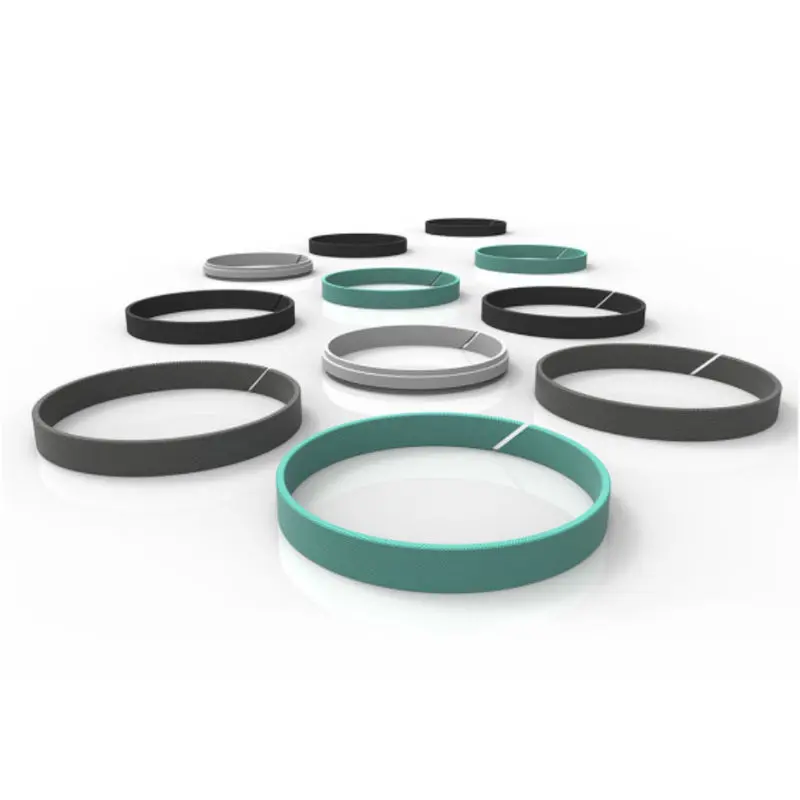

KLT PTFE Guide Strip

Carbon Filled PTFE Guide Strip

ISO9001 Hydraulic Guiding Elements

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KLT

Send Inquiry

Product Description

Product Overview
Carbon filled PTFE guide strips are guide elements designed to be used in light and medium duty hydraulic and pneumatic systems, for both rod and piston applications. Carbon-filler decreases friction in dry applications.
📋 Name:
PTFE Guide Strip
📦 Material:
PTFE
🌡 Temperature:
-200 / +260 °C
⚡ Sliding Speed:
15.0 M/s (max)
⚙ Style:
Hydraulic Guiding Elements
🏭 Application:
Chemical Industry / Pneumatic Cylinders
Core Advantages
Dry applications
Moderate load bearing
Dimensional flexibility
Stick-slip free
Very low coefficient of friction
Able to work on dry conditions
Area of Application
✔  Cranes
✔  Pneumatic Cylinders
✔  Agricultural machinery
✔  Standard industrial cylinders
✔  Automation applications
✔  Chemical industry

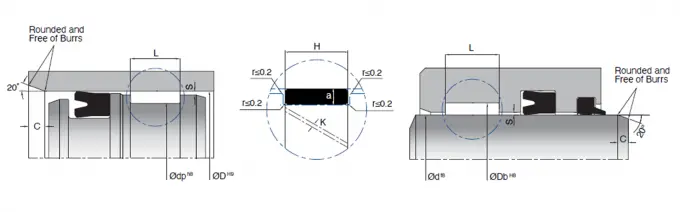

Carbon Filled PTFE Guide Strip

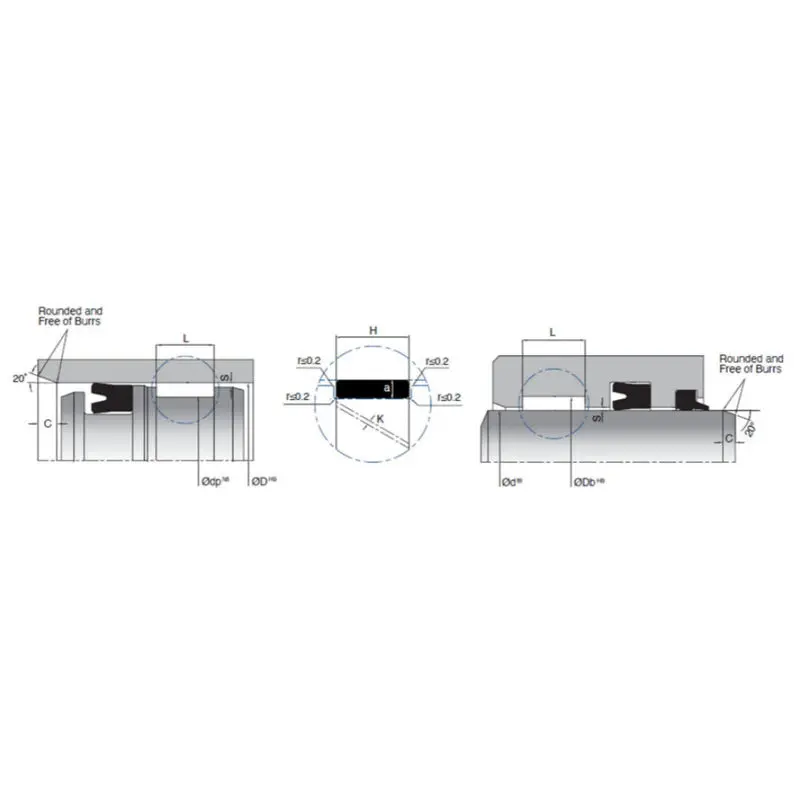

Technical Parameters
Model a L (+0.2/-0) H Material
KLT-1.5X5.61.55.65.4PTFE
KLT-1.5X81.587.8PTFE
KLT-1.5X91.598.8PTFE
KLT-1.5X101.5109.8PTFE
KLT-1.5X121.51211.8PTFE
KLT-1.5X151.51514.8PTFE
KLT-1.5X201.52019.5PTFE
KLT-1.5X251.52524.5PTFE
KLT-2X5.625.65.4PTFE
KLT-2X8287.8PTFE
KLT-2X9.729.79.5PTFE
KLT-2X102109.8PTFE
KLT-2X1821817.8PTFE
KLT-2X2522524.5PTFE
KLT-2.5X5.62.55.65.4PTFE
KLT-2.5X9.72.59.79.5PTFE
KLT-2.5X122.51211.8PTFE
KLT-2.5X152.51514.8PTFE
KLT-2.5X202.52019.5PTFE
KLT-2.5X252.52524.5PTFE
KLT-2.9X9.72.99.79.5PTFE
Payment & Shipping Terms
📦 Packaging:
Opp bags
📅 Delivery Time:
7-15 work days
💳 Payment Terms:
L/C, T/T, Paypal
🚚 Supply Ability:
100,000 pcs / months
Frequently Asked Questions
1. What are Carbon Filled PTFE Guide Strips used for?
They are designed as guiding elements for light and medium duty hydraulic and pneumatic systems, suitable for both rod and piston applications.
2. What are the main benefits of adding carbon filler to PTFE?
The carbon filler significantly decreases friction, which makes these strips ideal for dry applications where lubrication might be limited.
3. What is the working temperature range for these guide strips?
The strips can withstand extreme temperatures ranging from -200°C up to +260°C.
4. Can these strips be used in high-speed systems?
Yes, they support a maximum sliding speed of up to 15.0 meters per second.
5. What industries typically use these guiding elements?
They are widely used in the chemical industry, agricultural machinery, cranes, automation applications, and standard industrial cylinders.
6. What is the typical delivery timeframe for orders?
Standard delivery time is between 7 to 15 working days, depending on the order size and requirements.
