Discount KL84 Pneumatic Rod Seals Single Acting Uring Type Simple Groove Design Exporters, Quotes

KL84 Pneumatic Rod Seals

Simple Groove Pneumatic Rod Seals

Place of Origin:

CHINA

Brand Name:

KELONG

Certification:

ISO9001 / IRIS

Model Number:

KL84

Send Inquiry

Product Description

Product Details

Name: Single Acting Rod Seal

Pressure (max) Bar: 12

Temperature °C: -30/+105

Sliding Speed (max) M/s: 1.0

Material: NBR

Application: Pneumatic Cylinders

Shipping & Terms

MOQ: 100 pcs

Packaging: Customizable

Delivery Time: 15 Days

Payment Terms: L/C, T/T

Supply Ability: 100,000 pcs / month

KL84 pneumatic rod seal is a single acting uring type pneumatic rod sealing element produced from high-quality elastomer material.

Key Advantages

✓

Superior sealing performance

✓

Easy installation, simple groove design

✓

Stable operation at low pressures

✓

Low friction coefficient

Area of Application

• Pneumatic Cylinders

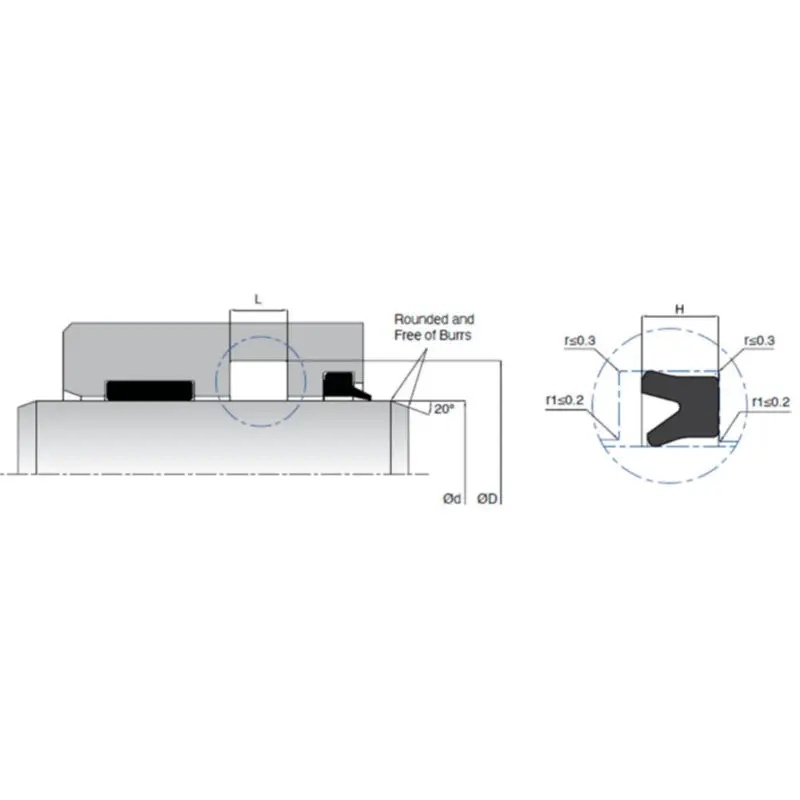

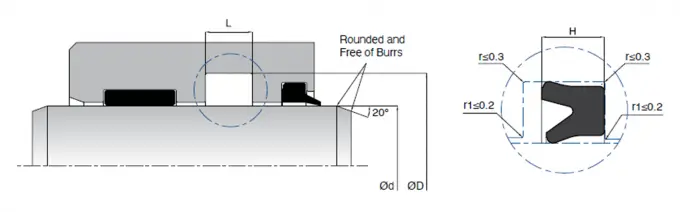

Technical Specifications & Size Chart

Model	d (f8)	D (H11)	L (+0.2/-0)	H	Material
KL82-003	3	6	2.5	2	NBR
KL82-004	4	7	2.5	2	NBR
KL82-005	5	8	2.5	2	NBR
KL82-006	6	9	2.5	2	NBR
KL82-007	7	10	2.5	2	NBR
KL82-008	8	11	2.5	2	NBR
KL82-010	10	13	2.5	2	NBR
KL82-010/1	10	14	3.2	2.7	NBR
KL82-010/2	10	16	5	4.5	NBR
KL82-012	12	16	3.2	2.7	NBR
KL82-014	14	18	3.2	2.7	NBR
KL82-016	16	20	3.2	2.7	NBR
KL82-020	20	24	3.2	2.7	NBR

Frequently Asked Questions

What is the main application for the KL84 rod seal?

The KL84 is specifically designed for use in pneumatic cylinders as a single-acting rod sealing element.

What materials are used in these pneumatic seals?

The standard material used for these rod seals is NBR (Nitrile Butadiene Rubber), known for its excellent resistance to oils and friction.

Can these seals handle high-speed movement?

Yes, they are designed to support sliding speeds of up to 1.0 meters per second.

What are the temperature limits for the KL84 seal?

These seals can operate efficiently within a temperature range of -30°C to +105°C.

Is the packaging customizable for bulk orders?

Yes, we provide customizable packaging solutions to meet specific client requirements for orders exceeding the MOQ.

How does the simple groove design benefit installation?

The simple groove design allows for quick and easy installation, reducing assembly time and minimizing the risk of seal damage during fitment.
