Cheap KL83 NBR Hydraulic And Pneumatic Seals For Pneumatic Cylinders Pricelist, Companies

KL83 Hydraulic And Pneumatic Seals

NBR Hydraulic And Pneumatic Seals

Place of Origin:

CHINA

Brand Name:

KELONG

Certification:

ISO9001 / IRIS

Model Number:

KL83

Product Description

Product Specifications
Name Hydraulic And Pneumatic Seals
Material NBR
Pressure (max) Bar 16
Temperature (max) °C -30/+105
Sliding Speed (max) M/s 1.0
Application Pneumatic Cylinders
Payment & Shipping Terms
Minimum Order Quantity 100
Packaging Details Customizable packaging
Delivery Time 15 Days
Payment Terms L/C, T/T
Supply Ability 100,000 pcs / month

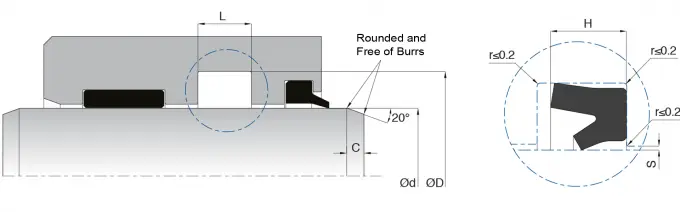

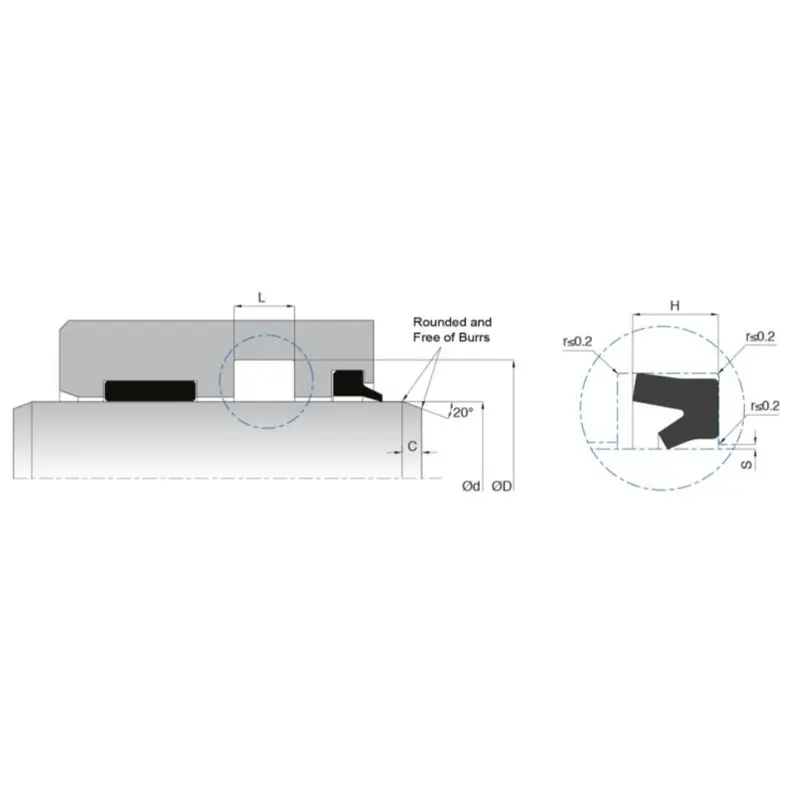

KL83 Pneumatic Rod Seal is a U-ring type pneumatic rod seal designed to provide exceptional sealing performance at variable pressures. Its specialized cut and short lip profile ensure reliability in both pneumatic and hydraulic applications.
Advantages
Superior sealing performance
Low coefficient of friction
Good abrasion resistance
Easy installation
High temperature resistance
Dual-use: Pneumatic and Hydraulic
Small felt channel dimensions
Area of Application
Pneumatic Cylinders
KL83 NBR Hydraulic And Pneumatic Seals
Frequently Asked Questions
What is the primary material used for the KL83 seal?
The KL83 pneumatic rod seal is manufactured using high-quality NBR (Nitrile Rubber).
Can this seal be used for high-pressure systems?
It is designed for a maximum pressure of 16 Bar, making it ideal for various pneumatic cylinder applications.
What is the operating temperature range?
This seal can operate effectively in temperatures ranging from -30°C to +105°C.
Is this seal suitable for hydraulic applications?
Yes, the KL83 is versatile and can be used for both pneumatic and hydraulic applications.
What are the available payment terms for bulk orders?
We accept various payment methods including L/C and T/T.
How long does it take for delivery?
The typical delivery time is approximately 15 days, depending on the order volume.
