KL65 Hydraulic Guide Ring

Hydraulic Guide Ring Bronze

POM Composite Bushings

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KL65

Send Inquiry

Product Description

i

Product Details

Name:
Hydraulic Guide Ring
Material:
Carbon Steel POM
Max Temperature:
-40/+110 °C
Style:
Hydraulic Guiding Elements
Application:
High Radial Load Applications
Max Sliding Speed:
2.0 m/s (Grease/Continuous Lubrication)
✈

Payment & Shipping Terms

Packaging:
Opp bags
Delivery Time:
7-15 work days
Payment Terms:
L/C, T/T, Paypal
Supply Ability:
100,000 pcs / month

KL65 Composite Bushing: High-Quality Self-Lubricating Solution

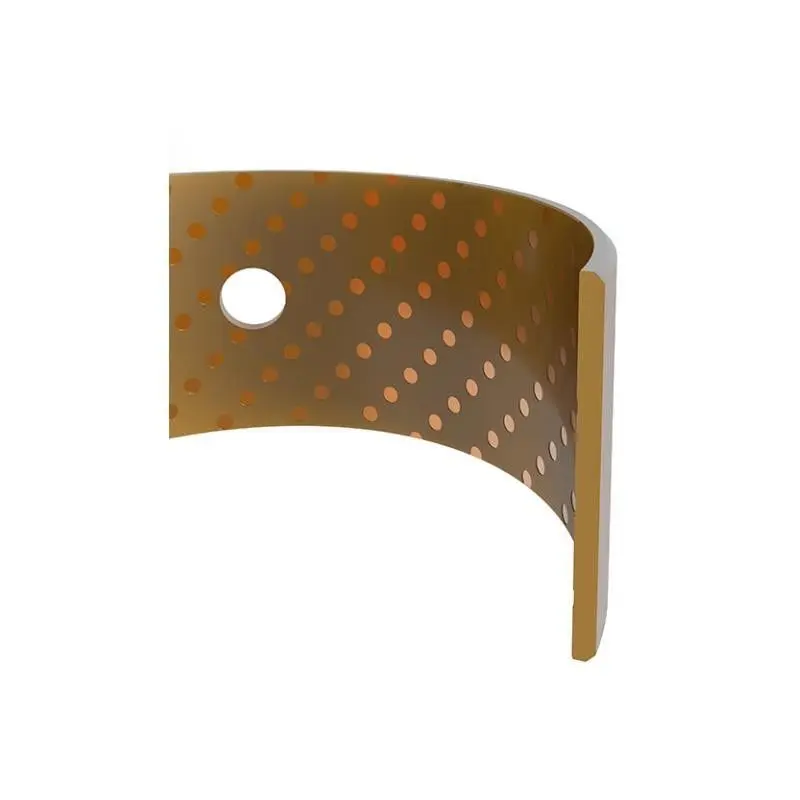

KL65 is a premium composite bushing manufactured from high-quality steel with a bronze middle layer and a POM surface. This unique structure provides exceptional self-lubrication properties, ensuring low friction, silent operation, and high abrasion resistance across diverse hydraulic applications.

Advantages

  • Suitable for dry applications
  • High Abrasion Resistance
  • Low friction and silent operation
  • Long service life
  • Excellent thermal properties and dimensional stability
  • Optimum oil film formation
  • Superior load bearing capacity

Area of Application

  • Hydraulic Cylinders
  • Pneumatic Cylinders
  • Applications with high radial load
KL65 Hydraulic Guide Ring Bronze Middle Layer POM Composite Bushings
T

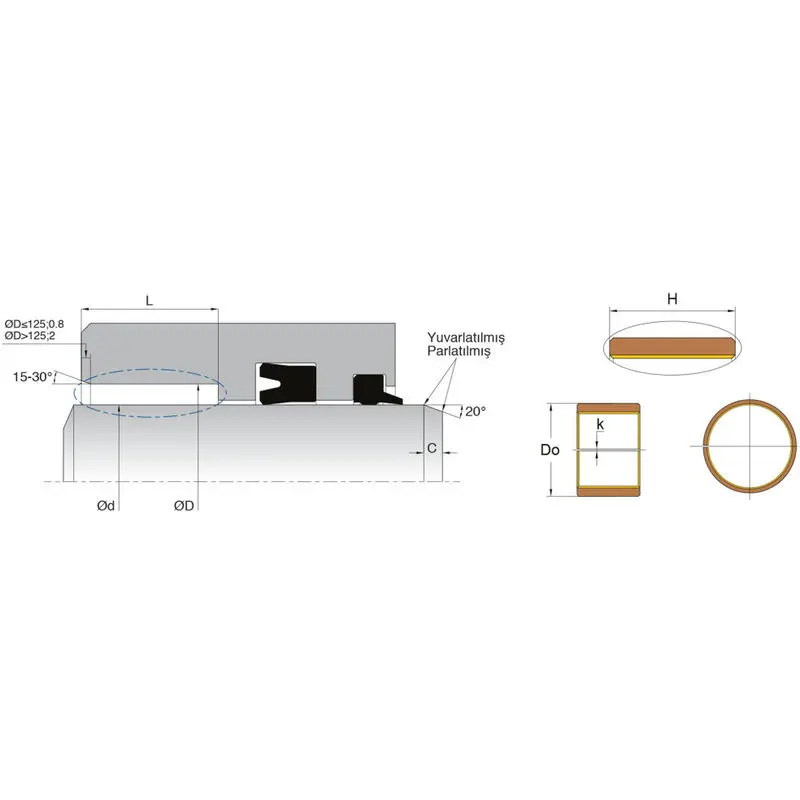

Technical Specifications

Model d (f7) D (H7) L (+0.2/-0) Material
KL65-k014141620Steel - POM - Bushing
KL65-k028283230Steel - POM - Bushing
KL65-k028/1283250Steel - POM - Bushing
KL65-k030303425Steel - POM - Bushing
KL65-k030/1303430Steel - POM - Bushing
KL65-k030/2303450Steel - POM - Bushing
KL65-k030/3303460Steel - POM - Bushing
KL65-k032323620Steel - POM - Bushing
KL65-k035353920Steel - POM - Bushing
KL65-k035/1353930Steel - POM - Bushing
KL65-k040404440Steel - POM - Bushing
KL65-k045455040Steel - POM - Bushing
KL65-k050505530Steel - POM - Bushing
KL65-k060606540Steel - POM - Bushing
KL65-k070707540Steel - POM - Bushing
KL65-k080808540Steel - POM - Bushing
KL65-k10010010550Steel - POM - Bushing
KL65-k120120125100Steel - POM - Bushing
KL65-k130130135100Steel - POM - Bushing
?

Frequently Asked Questions

What materials are used in the KL65 Hydraulic Guide Ring?
The KL65 is a composite bushing made from a high-quality steel base, a bronze middle layer, and a POM (Polyoxymethylene) sliding surface for self-lubrication.
Can these guide rings be used in dry applications?
Yes, the KL65 series is specifically designed to be suitable for dry applications due to its self-lubricating POM material.
What is the maximum temperature range for this product?
The KL65 guide ring can operate efficiently within a temperature range of -40°C to +110°C.
What are the primary advantages of using KL65 bushings?
Key advantages include high abrasion resistance, low friction, silent operation, superior load-bearing capacity, and a long service life.
In which applications is the KL65 most commonly used?
It is ideal for hydraulic and pneumatic cylinders, particularly in applications that experience high radial loads.
What is the typical delivery time and supply capacity?
We have a supply ability of 100,000 pieces per month, with a standard delivery time ranging from 7 to 15 working days.
