Cheap KL58 PTFE Piston Guide Ring Low Coefficient Of Friction For Mining Industry Exporter, Pricelist

1 / 5

Cheap KL58 PTFE Piston Guide Ring Low Coefficient Of Friction For Mining Industry Exporter, Pricelist

KL58 Piston Guide Ring

PTFE Piston Guide Ring

Kelong PTFE Guide Rings

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KL58

Send Inquiry

Product Description

Product Specifications

Name:Piston Guide Ring

Material:PTFE Added Synthetic Fiber Phenolic Resin

Temperature (max) °C:-40 / +130

Sliding Speed (max) M/s:1.0

Style:Hydraulic Guiding Elements

Application:Mobile Machinery / Excavators

Payment & Shipping Terms

Packaging Details:Opp bags

Delivery Time:7-15 work days

Payment Terms:L/C, T/T, Paypal

Supply Ability:100,000 pcs / month

Product Overview

KL58 Piston-Rod Guide Rings are high-performance composite guiding elements. Manufactured from synthetic fabric and phenolic resin, these rings provide exceptional load-carrying capacity. They are specifically designed for use in both rod and piston applications within complex hydraulic systems.

Core Advantages

Low coefficient of friction

High load bearing capacity

High form stability at operating temperatures

Low swelling properties

Wide range of available dimensions

Key Applications

Mobile machinery

Mining industry

Excavators

Hydraulic Presses

Heavy duty cylinders

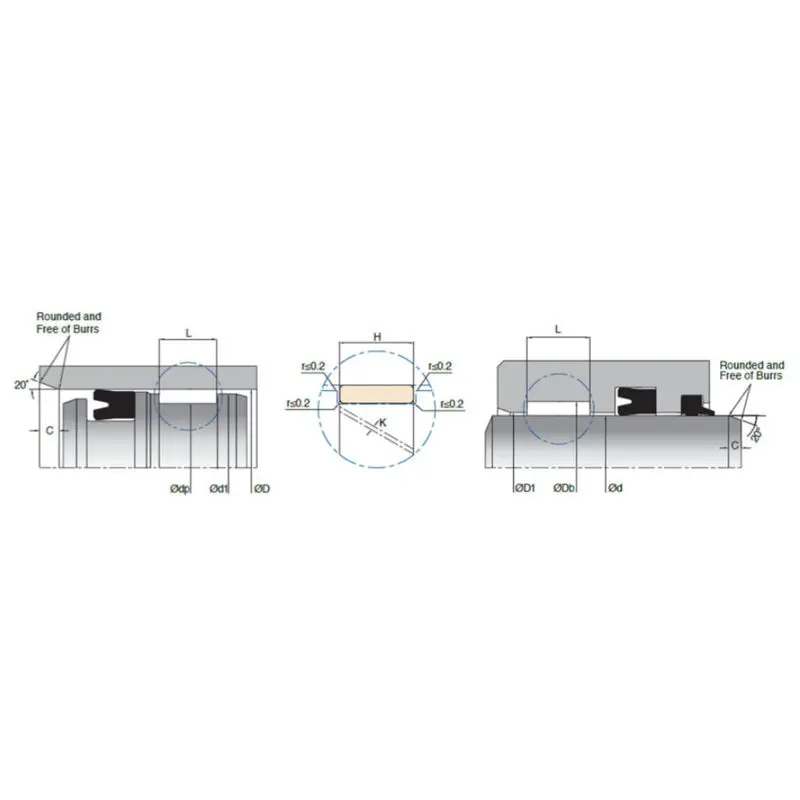

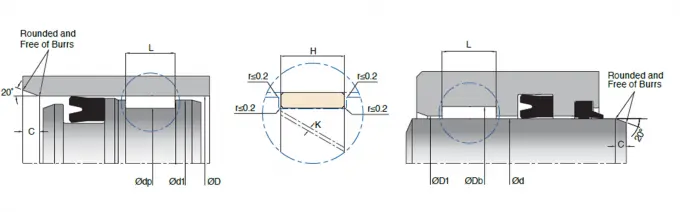

KL58 PTFE Piston Guide Ring Dimension Diagram

Technical Dimensions

Model	d(f8) dp(h8)	Db(H8) D(H9)	L (+0.2/-0)	H	d1 (h9)	D1 (H9)	Material
KL58-025	25	30	9.7	9.5	28.2	26.8	FIBER PHENOLIC
KL58-030	30	35	9.7	9.5	33.2	31.8	FIBER PHENOLIC
KL58-035	35	40	15	14.8	38.2	36.8	FIBER PHENOLIC
KL58-040/1	40	45	9.7	9.5	43.2	41.8	FIBER PHENOLIC
KL58-045	45	50	9.7	9.5	48.2	46.8	FIBER PHENOLIC
KL58-050	50	55	9.7	9.5	53.2	51.8	FIBER PHENOLIC
KL58-060	60	65	15	14.8	63.2	61.8	FIBER PHENOLIC
KL58-070	70	75	9.7	9.5	73.2	71.8	FIBER PHENOLIC
KL58-080	80	85	9.7	9.5	83.2	81.8	FIBER PHENOLIC
KL58-100	100	105	15	14.8	103.2	101.8	FIBER PHENOLIC
KL58-120	120	125	9.7	9.5	123.2	121.8	FIBER PHENOLIC
KL58-150	150	155	15	14.8	153.2	151.8	FIBER PHENOLIC
KL58-200	200	205	15	14.8	203.2	201.8	FIBER PHENOLIC
KL58-300	295	300	15	14.8	298.2	296.8	FIBER PHENOLIC

Frequently Asked Questions

Q1: What materials are used in the KL58 guide rings?

The KL58 guide rings are produced from a high-quality composite of synthetic fabric and phenolic resin with PTFE additives for reduced friction.

Q2: What is the operating temperature range for these piston rings?

They are designed to operate efficiently within a temperature range of -40°C to +130°C.

Q3: Are these guide rings suitable for high-load applications?

Yes, the phenolic resin composition provides a very high load-carrying capacity, making them ideal for heavy-duty cylinders and mining equipment.

Q4: What are the typical lead times for delivery?

Standard delivery time is between 7 to 15 working days, depending on the order quantity and specific dimensions required.

Q5: Can these be used for both rod and piston applications?

Absolutely. The KL58 series is engineered as a versatile guiding element suitable for both rod and piston configurations in hydraulic systems.

Q6: How does the friction coefficient compare to standard rings?

Thanks to the PTFE added fiber phenolic resin, these rings offer a significantly low coefficient of friction, reducing wear and extending system life.
