KL49 Hydraulic Piston Seal Types

PTFE High Pressure Piston Seals

NBR High Pressure Piston Seals

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KL49

Send Inquiry

Product Description

Product Specifications
Material: PTFE / NBR
Pressure (max): 400 Bar
Temperature Range: -30 / +105 °C
Sliding Speed (max): 15.0 M/s
Style: Hydraulic Piston Seals
Packaging: Opp bags
Delivery Time: 7-15 work days
Supply Ability: 100,000 pcs / month
KL49 is a double acting piston seal consisting of a PTFE sealing ring and a profile ring as an energizer. Specially designed for heavy duty applications, the KL49 rod seal offers high extrusion resistance and superior sealing performance.

⭐ Advantages

  • Low friction and stick-slip free
  • High pressure resistance
  • No twisting in the housing
  • Suitable design for heavy duty cylinders with large diameters
  • Good dynamic and static sealing
  • Long service life
  • High extrusion resistance

📍 Area of Application

  • Iron and steel industry
  • Hydraulic press cylinders
  • Large diameter cylinders
  • Injection moulding machines
  • Marine hydraulics

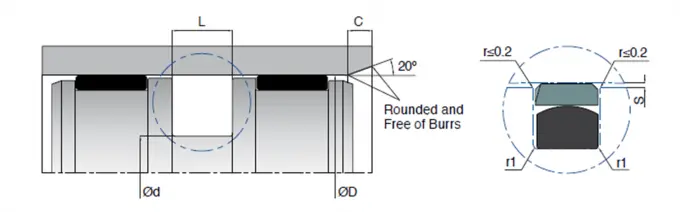

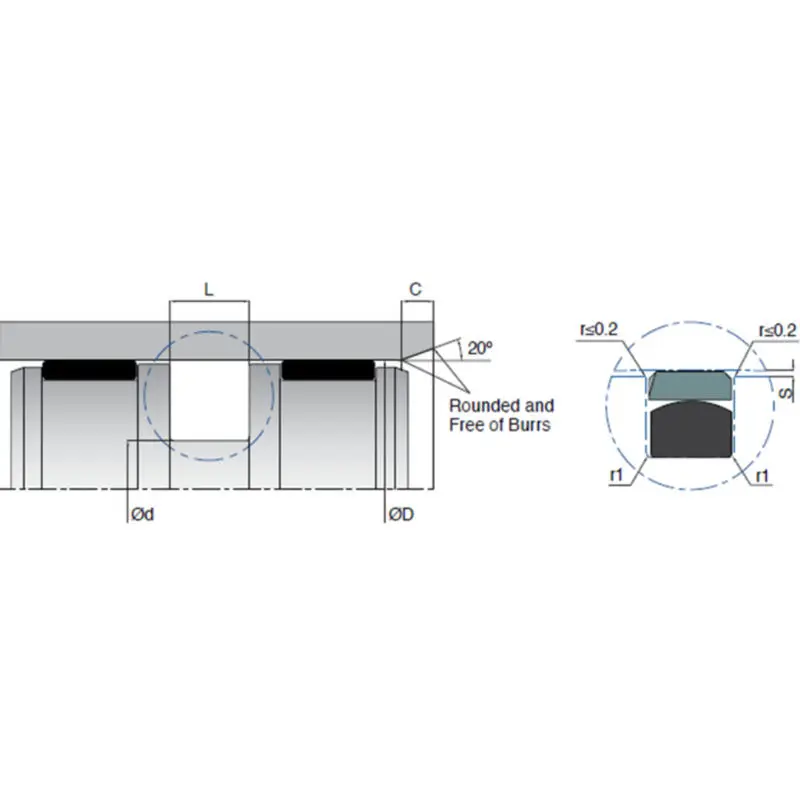

Visual Reference
KL49 Hydraulic Piston Seal Types PTFE / NBR High Pressure Piston Seals
Technical Data Sheet
Model No. D (H8) d (h8) L (+0.2/-0) r1 C Material
KL49 200-17520017512.50.410PTFE
KL49 220-19522019512.50.410PTFE
KL49 225-20022520012.50.410PTFE
KL49 240-21524021512.50.410PTFE
KL49 250-220250220150.812PTFE
KL49 260-230260230150.812PTFE
KL49 320-290320290150.812PTFE
KL49 325-295325295150.812PTFE
KL49 327.5-297.5327.5297.5150.812PTFE
KL49 340-310340310150.812PTFE
KL49 355-325355325150.812PTFE
KL49 360-330360330150.812PTFE
KL49 430-400430400150.812PTFE
KL49 490-460490460150.812PTFE
KL49 540-50554050517.51.212PTFE
KL49 590-55559055517.51.212PTFE
Frequently Asked Questions
Q1: What materials are used in the KL49 piston seal?
A: The KL49 seal is constructed using a high-quality PTFE sealing ring combined with an NBR profile ring which acts as an energizer for optimal performance.
Q2: What is the maximum pressure rating for this hydraulic seal?
A: The KL49 piston seal is designed to handle heavy-duty applications with a maximum pressure capacity of up to 400 Bar.
Q3: Can this seal be used in high-speed hydraulic systems?
A: Yes, it supports a maximum sliding speed of 15.0 meters per second, making it suitable for dynamic industrial machinery.
Q4: What are the primary industries that use the KL49 seal?
A: It is widely used in the iron and steel industry, hydraulic press cylinders, injection moulding machines, and marine hydraulics.
Q5: Is the KL49 seal suitable for large diameter cylinders?
A: Absolutely. One of its key advantages is a design specifically optimized for heavy-duty cylinders with large diameters.
Q6: How long does delivery usually take?
A: Standard delivery time for the KL49 piston seals is typically between 7 to 15 working days.
