Safe Operation Hydraulic Piston Seals

Hydraulic Piston Seals ISO9001

Hydraulic Piston Ring Seal

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KL45

Send Inquiry

Product Description

Product Specifications
Style: Hydraulic Piston Seals
Material: NBR / FABRIC NBR / POM
Pressure (max) Bar: 500
Temperature (max) °C: -30/+100
Sliding Speed (max) M/s: 0.5
Logistics & Service
Packaging Details: Opp bags
Delivery Time: 7-15 work days
Payment Terms: L/C, T/T, Paypal
Supply Ability: 100,000 pcs /months
Application: Iron And Steel / Marine Hydraulics
KL45 Technical Overview

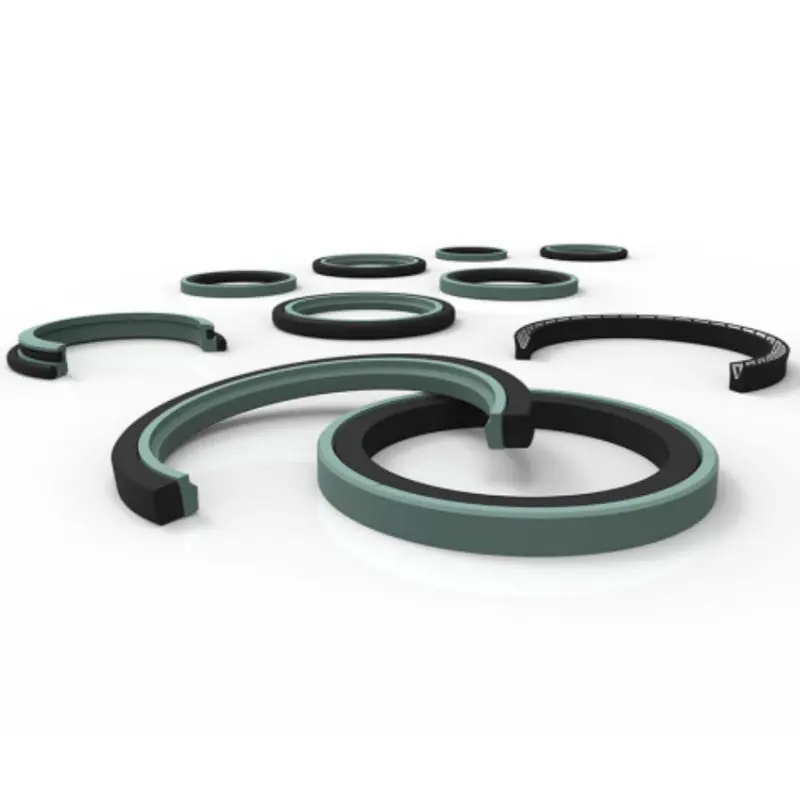

KL45 is a three pieces compact set consisting of one fabric impregnated sealing ring and two thermoplastic guide rings. The face seal has superior abrasion resistance and performs well at rough surfaces. Special designed guide POM guide and support rings provides a higher extrusion resistance to the seal and makes KL45 the high pressure version of KL44.

💡 Advantages
  • High performance at water-based fluids
  • High Abrasion Resistance
  • Advanced dynamic and static sealing
  • Safe operation under high pressures
  • Long service life
🏗️ Area of Application
  • Mining industry
  • Iron and steel industry
  • Marine hydraulics

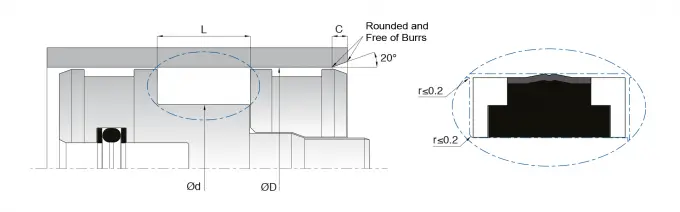

KL45 Hydraulic Piston Seals

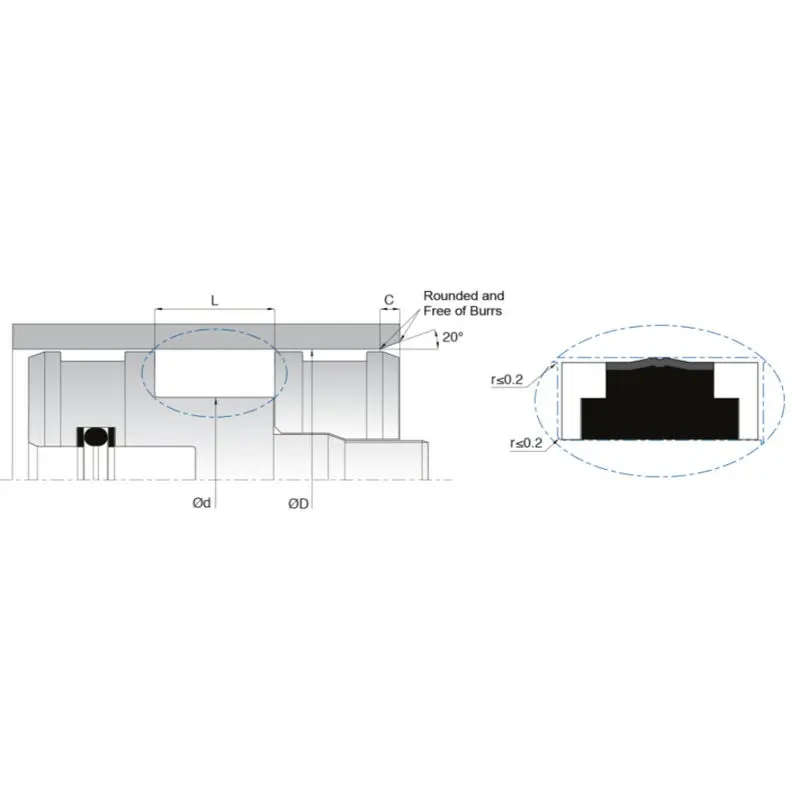

Dimension Chart
Model No. D (H8) d (h9) L (+0.2/-0) C MATERIAL
KL45 080-066806616.55FABRIC NBR
KL45 100-0861008616.55FABRIC NBR
KL45 110-0951109515.55FABRIC NBR
KL45 120-10512010515.55FABRIC NBR
KL45 125-11012511015.75FABRIC NBR
KL45 130-11313011320.56FABRIC NBR
KL45 140-12514012515.95FABRIC NBR
KL45 150-13515013515.55FABRIC NBR
KL45 160-143160143206FABRIC NBR
KL45 170-15017015015.56FABRIC NBR
KL45 180-163180163206FABRIC NBR
KL45 185-16518516515.56FABRIC NBR
KL45 200-18020018015.56FABRIC NBR
KL45 210-19021019015.56FABRIC NBR
KL45 225-20522520524.56FABRIC NBR
KL45 240-220240220256FABRIC NBR
KL45 250-23025023025.56FABRIC NBR
KL45 320-30032030025.56FABRIC NBR
Frequently Asked Questions
What makes the KL45 seal different from the KL44 model?
The KL45 is a high-pressure version of the KL44, featuring specially designed POM guide and support rings that provide significantly higher extrusion resistance.
What are the primary materials used in the KL45 sealing set?
The set is composed of three pieces: a fabric impregnated NBR sealing ring and two thermoplastic POM (polyoxymethylene) guide rings.
What is the maximum pressure this hydraulic seal can withstand?
The KL45 hydraulic piston seal is designed for safe operation under high pressures of up to 500 Bar.
Is this seal suitable for water-based fluids?
Yes, the KL45 offers high performance and excellent abrasion resistance when used with water-based fluids.
What is the typical lead time for an order?
Standard delivery time ranges between 7 to 15 working days depending on the order volume and requirements.
Which industries typically use the KL45 seal?
It is widely used in heavy-duty applications including the mining industry, iron and steel manufacturing, and marine hydraulic systems.
