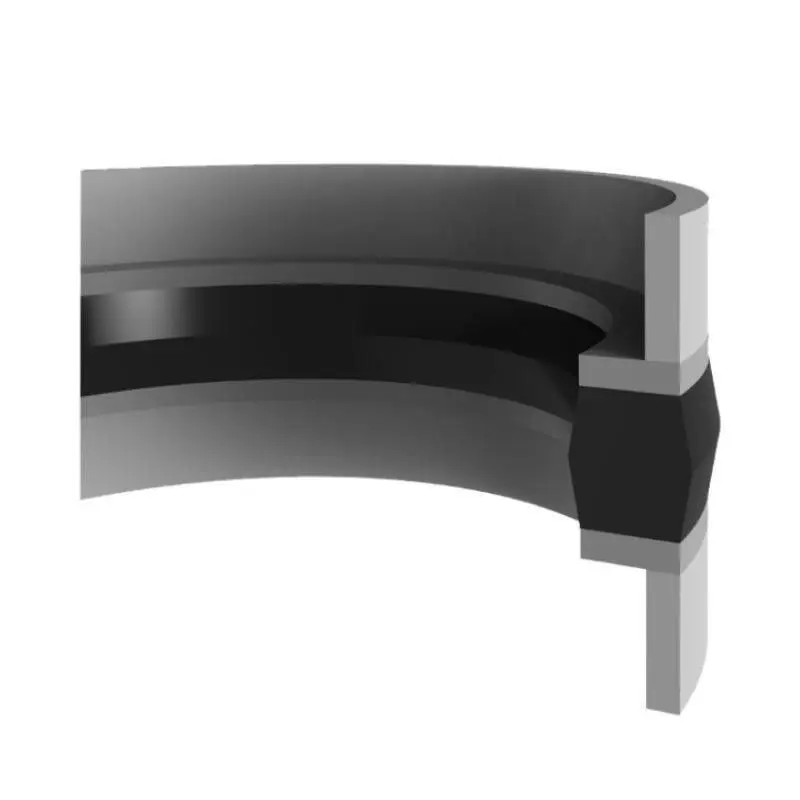

KL43 compact set is a 5 pieces piston seal consisting of elastomer sealing ring, two thermoplastic elastomer backup ring and two POM guide rings.

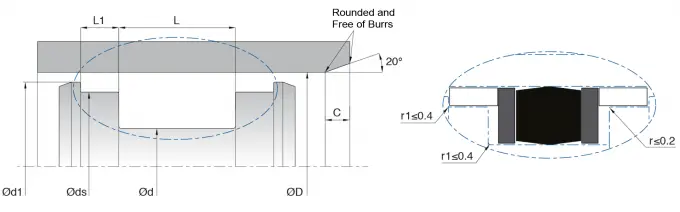

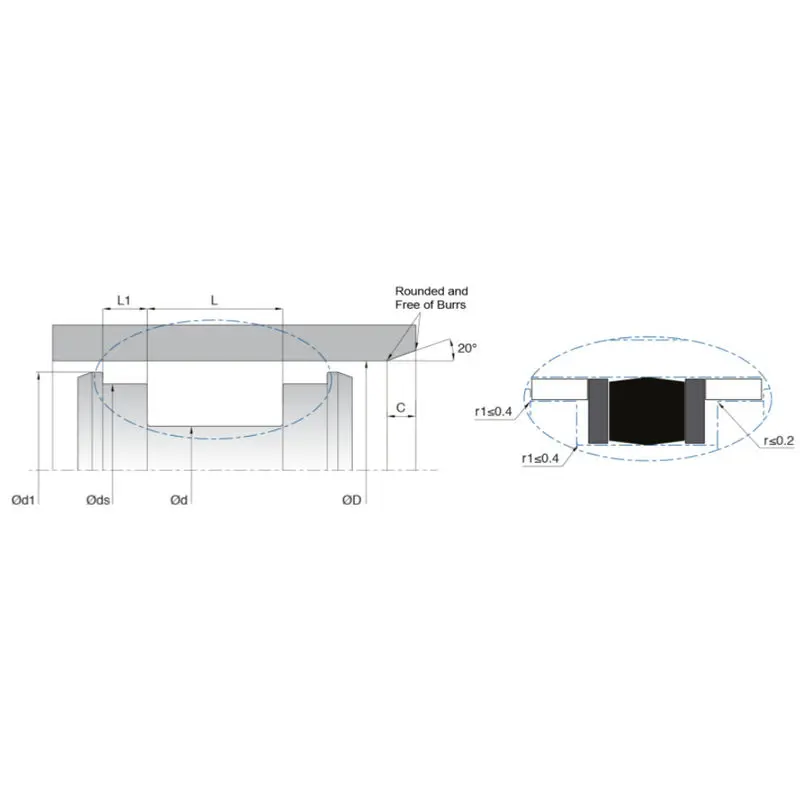

| Model Number | D (H8) | d (h9) | L (+0.2/-0) | ds (h8) | d1 (±0.1) | L1 (+0.2/-0) | C | Material |
|---|---|---|---|---|---|---|---|---|
| KL43 028.57-019.05 | 28.57 | 19.05 | 11.1 | 23.8 | 27.05 | 6.35 | 2.5 | NBR |
| KL43 031.75-022.22 | 31.75 | 22.22 | 11.1 | 26.97 | 30.22 | 6.35 | 2.5 | NBR |
| KL43 034.92-025.4 | 34.92 | 25.4 | 11.1 | 30.15 | 33.4 | 6.35 | 2.5 | NBR |
| KL43 038.1-028.57 | 38.1 | 28.57 | 11.1 | 33.55 | 36.57 | 6.35 | 2.5 | NBR |
| KL43 041.27-031.75 | 41.27 | 31.75 | 11.1 | 36.47 | 39.75 | 9.52 | 2.5 | NBR |
| KL43 044.45-034.92 | 44.45 | 34.92 | 11.1 | 39.65 | 42.92 | 9.52 | 2.5 | NBR |
| KL43 047.62-038.1 | 47.62 | 38.1 | 11.1 | 42.82 | 46.1 | 9.52 | 2.5 | NBR |
| KL43 050.8-038.1 | 50.8 | 38.1 | 14.52 | 46.25 | 49.28 | 6.35 | 3.5 | NBR |
| KL43 057.15-044.45 | 57.15 | 44.45 | 14.52 | 52.35 | 55.63 | 9.52 | 3.5 | NBR |
| KL43 063.5-050.8 | 63.5 | 50.8 | 14.52 | 58.95 | 61.98 | 6.35 | 3.5 | NBR |
| KL43 076.2-063.5 | 76.2 | 63.5 | 14.52 | 70.46 | 74.68 | 6.35 | 3.5 | NBR |
| KL43 101.6-082.55 | 101.6 | 82.55 | 19.43 | 95.83 | 99.57 | 6.35 | 5 | NBR |
| KL43 127-107.95 | 127 | 107.95 | 19.43 | 120.42 | 124.97 | 12.7 | 5 | NBR |
| KL43 152.4-133.35 | 152.4 | 133.35 | 19.43 | 145.82 | 150.37 | 12.7 | 5 | NBR |
| KL43 203.2-184.15 | 203.2 | 184.15 | 19.43 | 196.62 | 201.17 | 12.7 | 5 | NBR |
