Cheap KL41 Hydraulic Piston Seals Wear Resistant For Heavy Duty Cylinders Company, Companies

KL41 Hydraulic Piston Seals

Hydraulic Piston Seals Wear Resistant

Heavy Duty Cylinder Piston Seal

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KL41

Send Inquiry

Product Description

⚙️ Product Specifications

Style: KL41 Hydraulic Piston Seals

Material: PA / NBR

Pressure (max): 500 Bar

Temperature: -30/+105 °C

Sliding Speed: 1.0 M/s

Application: Heavy Duty Cylinders

📦 Payment & Shipping Terms

Packaging: Opp bags

Delivery Time: 7-15 work days

Payment Terms: L/C, T/T, Paypal

Supply Ability: 100,000 pcs/month

🔍 Product Overview

KL41 piston seal consists of «Z» cut thermoplastic sealing ring and rectangular shaped elastomer energizer ring. It has good sealing even at low pressures thanks to the rectangular formed elastomer. The «Z» cut ring provides a superior sealing without losing the contact with the tube surface at high and shock pressures. The ring can work at higher extrusion gaps in comparison with PTFE material and has high strength and wear resistance thanks to the glass filled thermoplastic material.

⭐ Key Advantages

✔ Designed for grooves according to ISO 7425/1

✔ Easy fit without installation tool

✔ Simple one piece piston head with small groove

✔ Higher extrusion gap in comparison with PTFE and PU seals

✔ High wear resistance, long service life

✔ Outstanding resistance to pressure shocks

🚀 Application Areas

🔹 Construction machinery

🔹 Forklifts

🔹 Heavy duty cylinders

📊 Dimensional Data

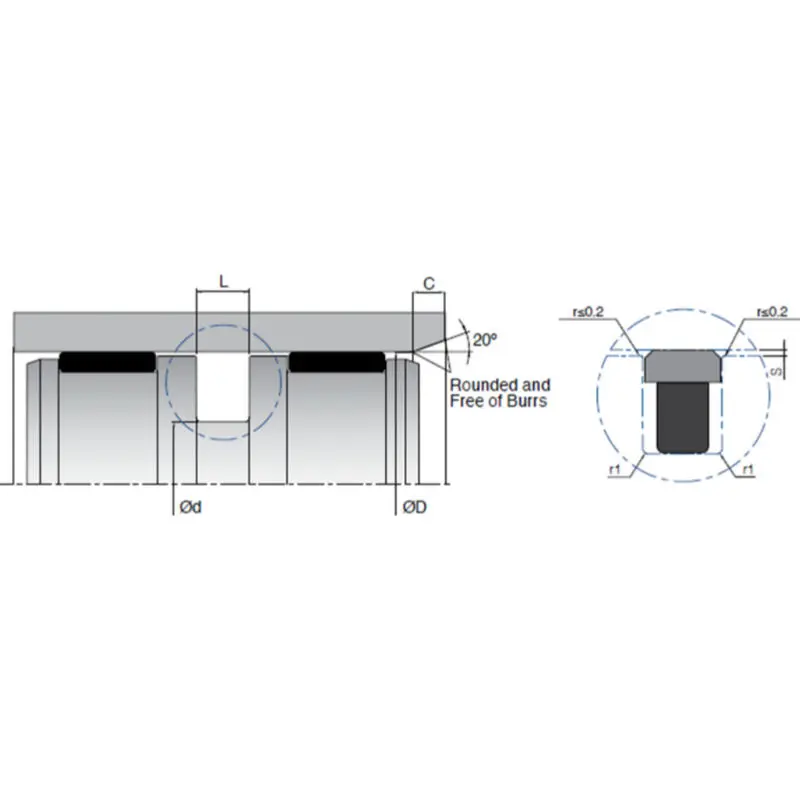

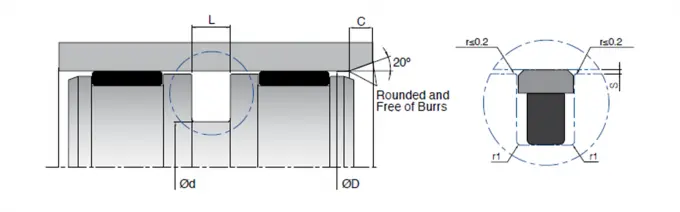

Model	D (H9)	d (h9)	L (+0.2/-0)	r1	C	Material
KL41-040	40	29	4.2	1	6	PA
KL41-050	50	39	4.2	1	6	PA
KL41-060	60	44.5	6.3	1.3	8	PA
KL41-060/1	60	49	4.2	1	6	PA
KL41-063	63	47.5	6.3	1.3	8	PA
KL41-063/1	63	42	8.1	1.8	10.5	PA
KL41-063/2	63	52	4.2	1	6	PA
KL41-070/1	70	59	4.2	1	6	PA
KL41-075	75	54	8.1	1.8	10.5	PA
KL41-080	80	64.5	6.3	1.3	6	PA
KL41-080/1	80	59	8.1	1.8	10.5	PA
KL41-085	85	69.5	6.3	1.3	6	PA
KL41-090	90	74.5	6.3	1.3	10.5	PA
KL41-090/1	90	69	8.1	1.8	6	PA
KL41-095	95	74	8.1	1.8	10.5	PA
KL41-100	100	84.5	6.3	1.3	6	PA
KL41-100/1	100	79	8.1	1.8	10.5	PA
KL41-105	105	84	8.1	1.8	10.5	PA
KL41-105/1	105	89.5	6.3	1.3	6	PA
KL41-110	110	94.5	6.3	1.3	6	PA
KL41-110/1	110	89	8.1	1.8	10.5	PA
KL41-115	115	94	8.1	1.8	10.5	PA
KL41-120	120	99	8.1	1.8	10.5	PA
KL41-125	125	104	8.1	1.8	10.5	PA
KL41-125/1	125	110	6.3	1.3	10.5	PA
KL41-126	126	105	8.1	1.8	10.5	PA
KL41-130	130	109	8.1	1.8	10.5	PA
KL41-135	135	114	8.1	1.8	10.5	PA
KL41-135/1	135	119.5	6.3	1.3	10.5	PA
KL41-140	140	119	8.1	1.8	10.5	PA
KL41-145	145	124	8.1	1.8	10.5	PA
KL41-147	147	126	8.1	1.8	10.5	PA
KL41-150	150	129	8.1	1.8	10.5	PA
KL41-160	160	139	8.1	1.8	10.5	PA
KL41-165	165	144	8.1	1.8	10.5	PA
KL41-170	170	149	8.1	1.8	10.5	PA
KL41-175	175	154	8.1	1.8	10.5	PA
KL41-180	180	159	8.1	1.8	10.5	PA
KL41-185	185	164	8.1	1.8	10.5	PA
KL41-190	190	169	8.1	1.8	10.5	PA
KL41-200	200	179	8.1	1.8	10.5	PA
KL41-210	210	189	8.1	1.8	10.5	PA
KL41-215	215	194	8.1	1.8	10.5	PA
KL41-220	220	199	8.1	1.8	10.5	PA
KL41-225	225	204	8.1	1.8	10.5	PA
KL41-230	230	209	8.1	1.8	10.5	PA
KL41-250	250	229	8.1	1.8	10.5	PA
KL41-280	280	255.5	8.1	1.8	10.5	PA

❓ Frequently Asked Questions

What materials are used for KL41 seals?

The KL41 hydraulic piston seals are manufactured using high-quality glass-filled thermoplastic material (PA) paired with a rectangular NBR elastomer energizer.

What is the maximum pressure these seals can handle?

The KL41 seal is designed for heavy-duty applications and can withstand maximum pressures of up to 500 Bar.

What is the advantage of the "Z" cut design?

The «Z» cut ring ensures superior sealing performance without losing contact with the tube surface, especially during high-pressure or shock-pressure conditions.

Is the KL41 seal compatible with ISO standards?

Yes, these seals are specifically designed for housing grooves that comply with the ISO 7425/1 standard.

What are the typical applications for these seals?

They are ideal for heavy-duty cylinders, construction machinery, forklifts, and other systems operating under demanding hydraulic conditions.

How long does delivery usually take?

Standard orders are typically delivered within 7 to 15 work days, depending on the volume and destination.
