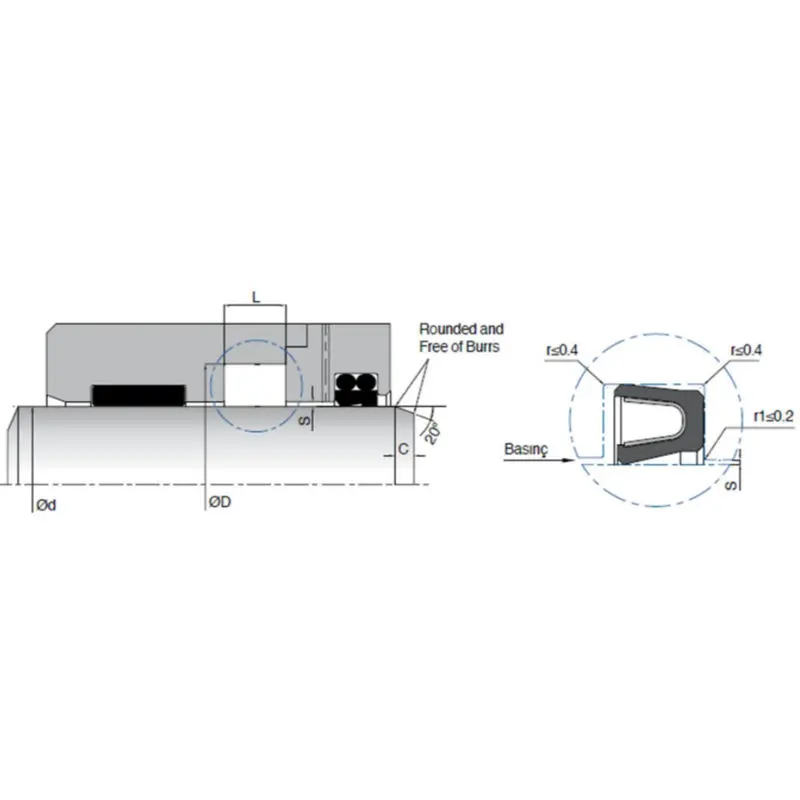

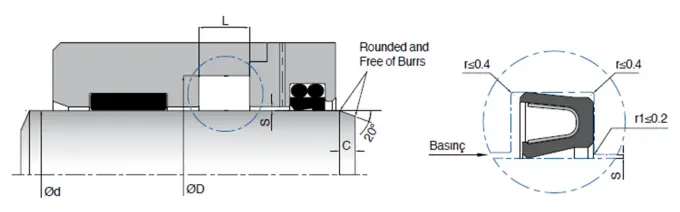

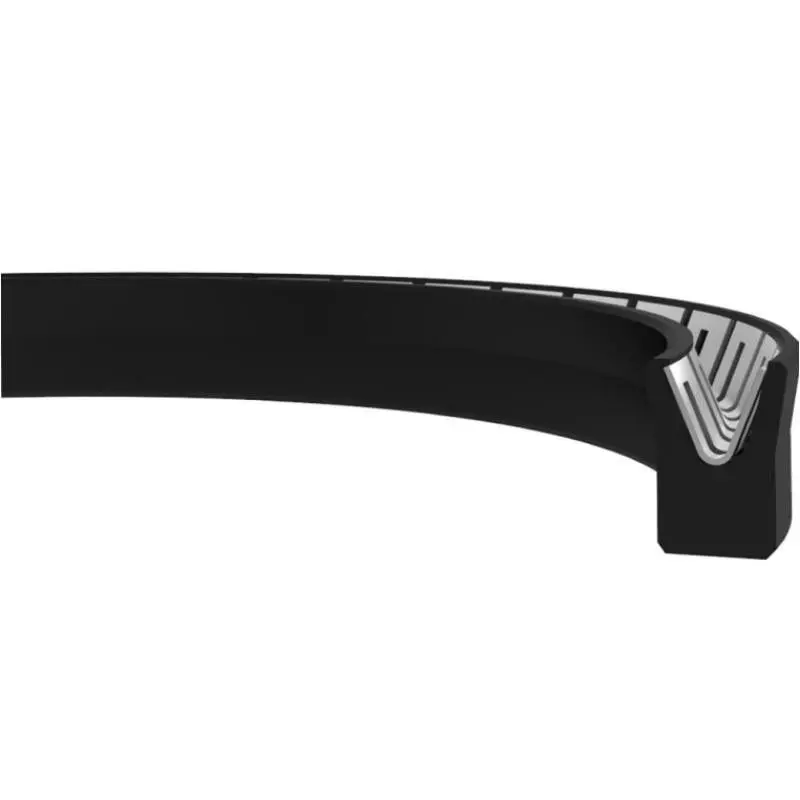

The KL16 is a high-performance single acting rod seal consisting of a PTFE sealing ring and a V-shaped energizing metal spring. It is a preferred sealing solution for critical applications in process and chemical industries, as well as food & beverage equipment.
| Model No. | d (f8) | D (H9) | L (+0.2/-0) | C | Material |
|---|---|---|---|---|---|
| KL16-007 | 7 | 9.9 | 2.4 | 2.5 | PTFE |
| KL16-012 | 12 | 16.5 | 3.6 | 2.5 | PTFE |
| KL16-014 | 14 | 18.5 | 3.6 | 2.5 | PTFE |
| KL16-016 | 16 | 20.5 | 3.6 | 2.5 | PTFE |
| KL16-018 | 18 | 24.2 | 4.8 | 3.5 | PTFE |
| KL16-020 | 20 | 26.2 | 4.8 | 3.5 | PTFE |
| KL16-025 | 25 | 31.2 | 4.8 | 3.5 | PTFE |
| KL16-030 | 30 | 36.2 | 4.8 | 3.5 | PTFE |
| KL16-040 | 40 | 49.4 | 7.1 | 5.5 | PTFE |
| KL16-050 | 50 | 59.4 | 7.1 | 5.5 | PTFE |
| KL16-060 | 60 | 69.4 | 7.1 | 5.5 | PTFE |
| KL16-080 | 80 | 89.4 | 7.1 | 5.5 | PTFE |
| KL16-100 | 100 | 109.4 | 7.1 | 5.5 | PTFE |
| KL16-120 | 120 | 132.2 | 9.5 | 5.5 | PTFE |
