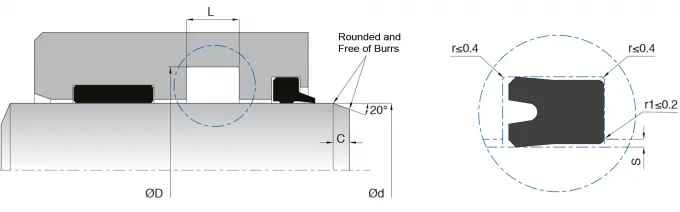

KL15 Single Acting Rod Seal

HNBR Rod Seal Hydraulic

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KL15

Send Inquiry

Product Description

Product Overview

KL15 Is A Single Acting HNBR Rod Seal For Medium To Heavy Duty Cylinders With Superior Static And Dynamic Sealing Effect

KL15 is a preferred sealing solution for medium to heavy duty cylinders where the sealing performance of elastomer and higher temperature resistance is required. It is highly recommended to use with a backup ring for optimal performance.

Technical Parameters

Temperature (max):
-30 / +150 °C
Pressure (max):
250 Bar
Material:
HNBR
Sliding Speed (max):
0.5 M/s
Style:
Hydraulic Rod Seals
Application Type:
Medium to Heavy Duty

Advantages & Features

★
Superior Sealing: Excellent static and dynamic sealing effect under various conditions.
★
Easy Installation: Designed for straightforward assembly in standard housing.
★
Temp Resistance: High-grade HNBR material ensures performance up to 150°C.

Area of Application

✔Agricultural machinery
✔Presses
✔Construction machinery
✔Loading platforms
✔Injection moulding machines
✔Forklifts
✔Standard industrial cylinders
KL15 Single Acting HNBR Rod Seal

Payment & Shipping Terms

Packaging:
Opp bag
Delivery Time:
7-15 work days
Payment Terms:
L/C, T/T, Paypal
Supply Ability:
100,000 pcs / month

Frequently Asked Questions

What is the main material used in the KL15 rod seal?
The KL15 rod seal is manufactured using high-quality HNBR (Hydrogenated Nitrile Butadiene Rubber), known for its excellent heat and chemical resistance.
What is the maximum working pressure for this seal?
This seal is designed to handle a maximum pressure of up to 250 Bar, making it suitable for medium to heavy-duty hydraulic applications.
Can the KL15 seal operate in high-temperature environments?
Yes, it has a wide temperature range of -30°C to +150°C, providing superior stability in extreme thermal conditions.
What kind of machinery is the KL15 rod seal typically used for?
It is commonly used in agricultural machinery, injection moulding machines, forklifts, presses, and standard industrial cylinders.
Is the KL15 seal difficult to install?
No, the KL15 is specifically designed for easy installation, allowing for efficient maintenance and replacement in hydraulic systems.
What are the typical lead times for an order?
The standard delivery time is between 7 to 15 working days, depending on the order quantity and current supply ability.
