📊 Product Details
Name:
Single Acting Sealing Elements
Temperature (max) °C:
-40/+100
Area Of Application:
Heavy Duty Cylinders
🚚 Payment & Shipping Terms
Packaging Details:
Customizable packaging
Supply Ability:
100,000 pcs / month

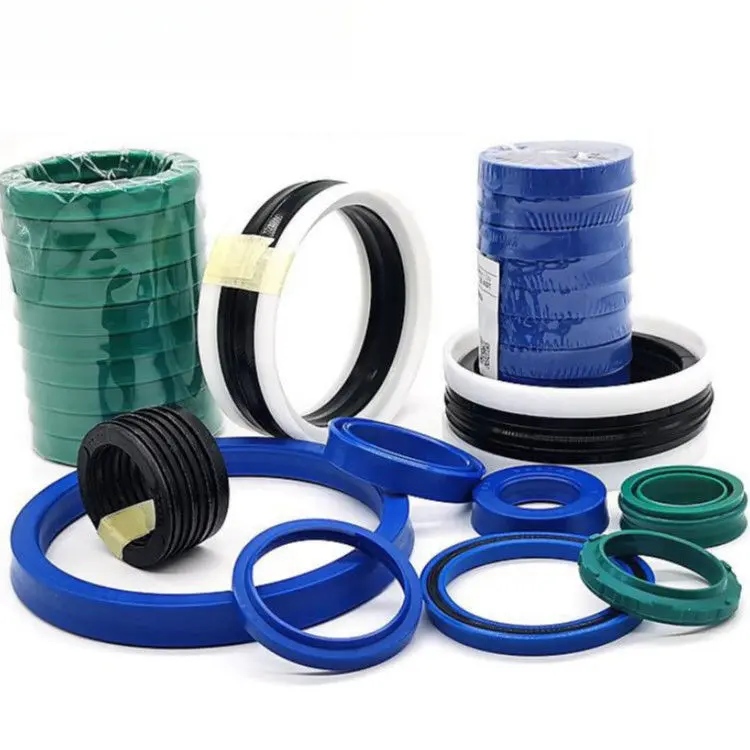

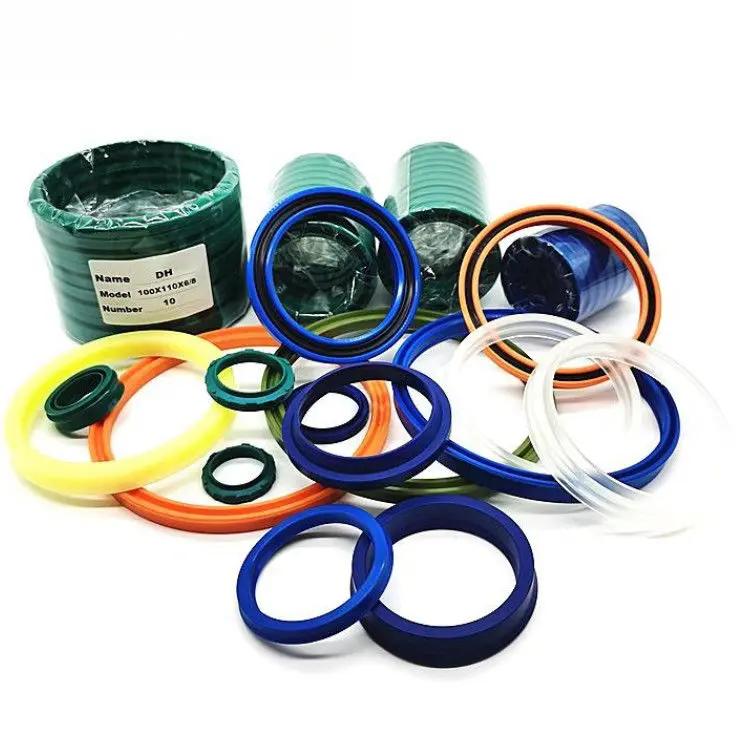

Kl119 - Static Seal for High Pressure Systems

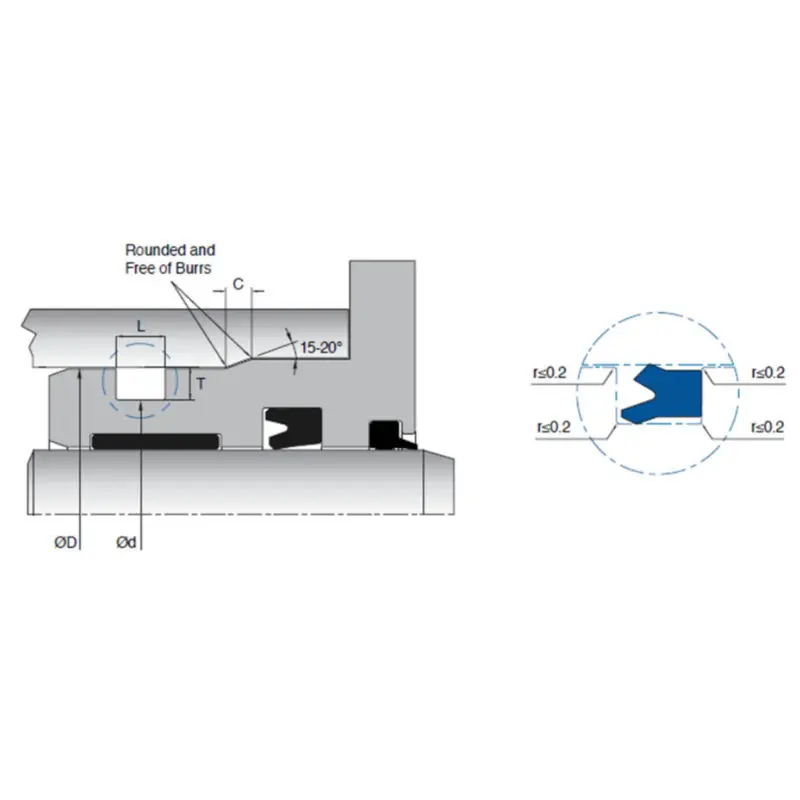

KL119 static seals are single-acting sealing elements used to provide static sealing between the gland cap and the cylinder in systems operating at high pressures.
⭐ Key Advantages
- Singly usage instead of o-rings with back-up ring
- Easy installation
- High extrusion resistance
- Can be used at high pressure
- No twisting in the housing
- Superior static sealing at variable pressures
- Operating safely in system where ovality problems may occur
- Safely operating in vibrating systems
🏭 Area of Application
- Mining industry
- Presses
- Large diameter cylinders
- Heavy duty cylinders
❓ Frequently Asked Questions
What is the main function of the KL119 static seal?
The KL119 is designed to provide reliable static sealing between the gland cap and the cylinder, especially in systems operating under high-pressure conditions.
What maximum pressure can this sealing element withstand?
The KL119 Single Acting Sealing Element can handle maximum pressures up to 500 Bar.
Can KL119 replace O-rings?
Yes, one of its primary advantages is that it can be used singly instead of O-rings paired with back-up rings, simplifying the assembly.
In which industries are these seals typically used?
They are widely applied in the mining industry, for hydraulic presses, large diameter cylinders, and other heavy-duty cylinder applications.
Is the KL119 suitable for vibrating systems?
Yes, it is specifically engineered to operate safely in vibrating systems and in environments where ovality problems might occur.
What is the material and temperature range for this seal?
The seal is made of high-quality PU (Polyurethane) and can operate in temperatures ranging from -40°C to +100°C.
