The K152 sealing elements are single acting rod seals made by water resistant fabric impregnated elastomer, specially designed for water and water-oil mixture. They are low pressure pump seals working at pressure washers.
Pressure washers and systems utilizing water and water-oil mixtures.

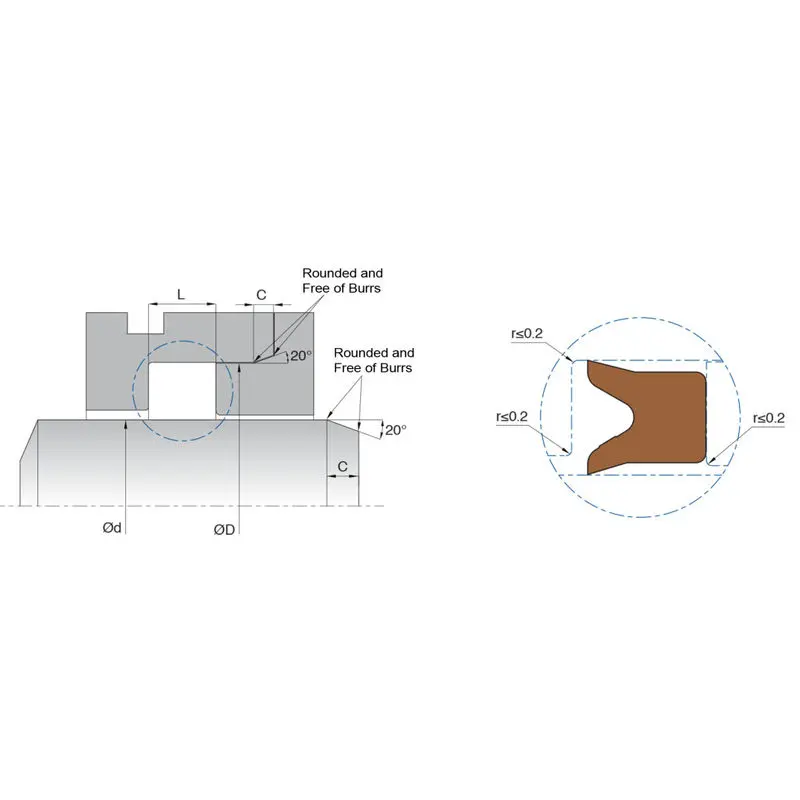

| Model No. | d (f7) | D (H9) | L (+0.2/-0) | C | Material |
|---|---|---|---|---|---|
| KL110-012 | 12 | 20 | 5.8 | 5 | FABRIC NBR |
| KL110-012/1 | 12 | 20 | 5.6 | 5 | FABRIC NBR |
| KL110-013 | 13 | 20 | 5 | 4.5 | FABRIC NBR |
| KL110-014 | 14 | 22 | 6.5 | 5 | FABRIC NBR |
| KL110-014/1 | 14 | 22 | 5.7 | 5 | FABRIC NBR |
| KL110-015 | 15 | 24 | 5.5 | 5 | FABRIC NBR |
| KL110-016 | 16 | 24 | 6.5 | 5 | FABRIC NBR |
| KL110-016/1 | 16 | 24 | 5.8 | 5 | FABRIC NBR |
| KL110-016/2 | 16 | 24 | 5.2 | 5 | FABRIC NBR |
| KL110-018 | 18 | 26 | 6.5 | 5 | FABRIC NBR |
| KL110-018/1 | 18 | 26 | 6 | 5 | FABRIC NBR |
| KL110-018/2 | 18 | 25 | 5 | 5 | FABRIC NBR |
| KL110-018/3 | 18 | 26 | 5 | 5 | FABRIC NBR |
| KL110-020 | 20 | 28 | 6 | 5 | FABRIC NBR |
| KL110-022 | 22 | 30 | 6 | 5 | FABRIC NBR |
| KL110-024 | 24 | 32 | 6 | 5 | FABRIC NBR |
| KL110-024/1 | 24 | 34 | 6 | 6 | FABRIC NBR |
| KL110-025 | 25 | 33 | 4.8 | 5 | FABRIC NBR |
| KL110-026 | 26 | 32 | 7.2 | 4 | FABRIC NBR |
| KL110-026/1 | 26 | 33 | 4.8 | 4.5 | FABRIC NBR |
| KL110-030 | 30 | 38 | 6 | 5 | FABRIC NBR |
| KL110-040 | 40 | 50 | 6 | 6 | FABRIC NBR |
| KL110-042 | 42 | 50 | 6 | 5 | FABRIC NBR |
