The KL11 single acting hydraulic rod seal consists of a fabric elastomer ring and a thermoplastic extrusion ring, designed for high-performance sealing in demanding environments.

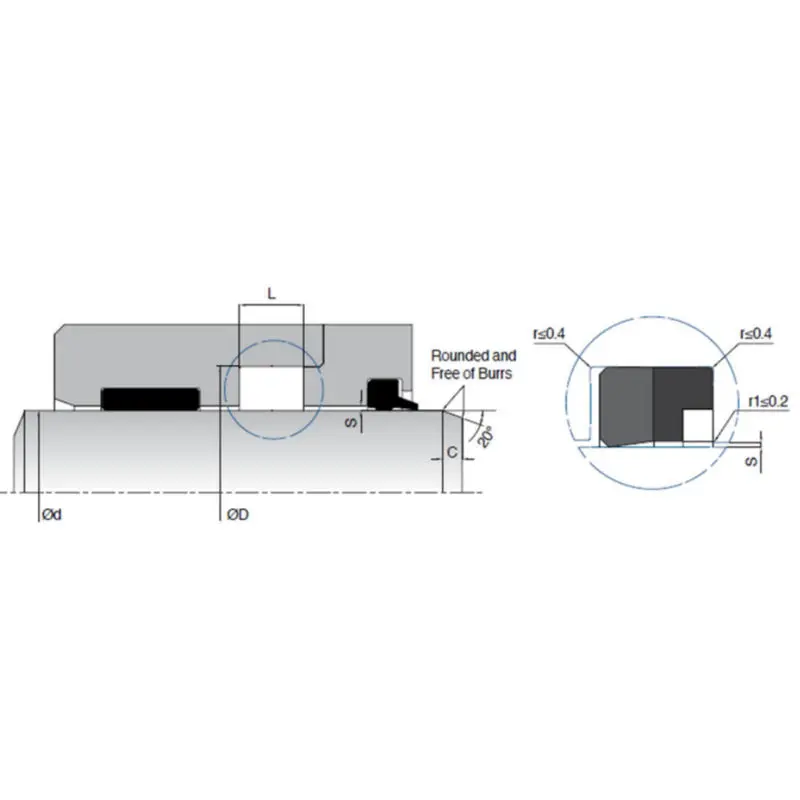

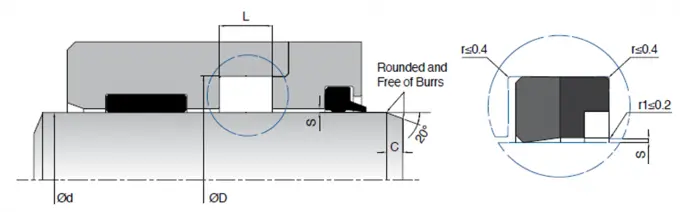

| Model Part | d (f8) | D (H9) | L (+0.2/-0) | C | Material |
|---|---|---|---|---|---|
| KL11-006 | 6 | 14 | 6.5 | 5 | NBR |
| KL11-012 | 12 | 23 | 7.5 | 5 | NBR |
| KL11-015 | 15 | 27 | 7 | 5 | NBR |
| KL11-016 | 16 | 28 | 7.5 | 5 | NBR |
| KL11-018 | 18 | 26 | 6.4 | 5 | NBR |
| KL11-020 | 20 | 30 | 8 | 5 | NBR |
| KL11-022 | 22 | 32 | 7.5 | 5 | NBR |
| KL11-025 | 25 | 38 | 9.5 | 5 | NBR |
| KL11-028 | 28 | 38 | 8 | 5 | NBR |
| KL11-030 | 30 | 40 | 10.5 | 5 | NBR |
| KL11-032 | 32 | 40 | 9 | 5 | NBR |
| KL11-035 | 35 | 45 | 10.5 | 5 | NBR |
| KL11-040 | 40 | 50 | 10.5 | 5 | NBR |
| KL11-045 | 45 | 55 | 10.5 | 5 | NBR |
| KL11-050 | 50 | 65 | 10.5 | 5 | NBR |
| KL11-060 | 60 | 70 | 10.5 | 5 | NBR |
| KL11-070 | 70 | 80 | 12.5 | 5 | NBR |
| KL11-080 | 80 | 90 | 12.5 | 5 | NBR |
| KL11-100 | 100 | 115 | 12.5 | 7 | NBR |
| KL11-125 | 125 | 150 | 14 | 7 | NBR |
| KL11-150 | 150 | 170 | 14 | 7 | NBR |
| KL11-230 | 230 | 260 | 20.5 | 10 | NBR |
* Note: The table above shows a selection of common sizes. More variants are available upon request.
