KL106 wipers prevent that foreign particles from outer environment penetrate into the cylinder in the hydraulic applications, and reduce the oil film thickness. In highly contaminated systems, all effects (water, mud, dust, etc.) coming from the external environment are avoided with the special cap design.
Product Specifications
Name
Double Wiper Seal
Material
PTFE NBR
Temperature
-30 / +105 °C
Sliding Speed
5.0 M/s (max)
Application
Iron And Steel Industry
Color
Red / Blue / Black / Custom
Payment & Shipping Terms
Min. Order
100 Pcs
Packaging
Customizable
Delivery Time
15 Days
Payment
L/C, T/T
Supply Ability
100,000 pcs / month
Key Advantages
Excellent positioning and regulation ability during operation
Superior protection against particles in the external environment
Low friction and stick-slip free performance
Operating with different PTFE materials at high frequencies and low strokes
Suitable design for large diameter requirements
Areas of Application
Iron and steel industry heavy machinery
Plastic injection moulding machines
Industrial hydraulic presses

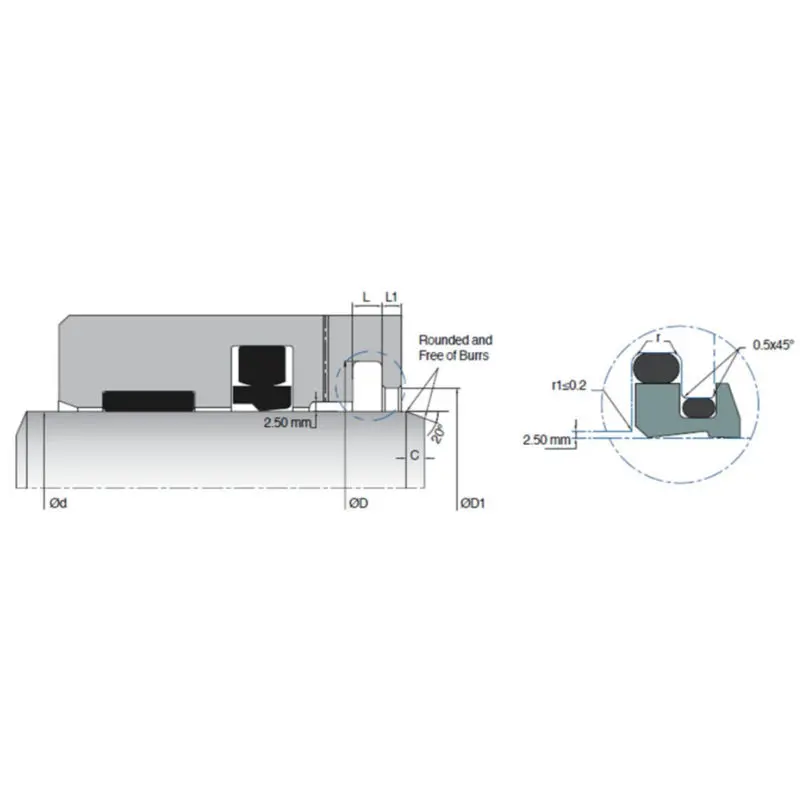

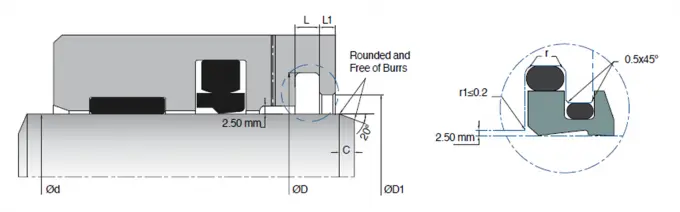

Technical Data & Dimensions
Model Code
d (f8)
D (H9)
D1 (H9)
L (+0.2/-0)
L1 (+0.2/-0)
r
Material
KL106-100
100
122.2
110.7
6.3
4.2
1.2
PTFE
KL106-110
110
132.2
120.7
6.3
4.2
1.2
PTFE
KL106-120
120
142.2
130.7
6.3
4.2
1.2
PTFE
KL106-130
130
152.2
140.7
6.3
4.2
1.2
PTFE
KL106-140
140
162.2
150.7
6.3
4.2
1.2
PTFE
KL106-150
150
172.2
160.7
6.3
4.2
1.2
PTFE
KL106-160
160
182.2
170.7
6.3
4.2
1.2
PTFE
KL106-170
170
192.2
180.7
6.3
4.2
1.2
PTFE
KL106-180
180
202.2
190.7
6.3
4.2
1.2
PTFE
KL106-190
190
212.2
200.7
6.3
4.2
1.2
PTFE
KL106-200
200
222.2
210.7
6.3
4.2
1.2
PTFE
KL106-220
220
242.2
230.7
6.3
4.2
1.2
PTFE
KL106-380
380
413
395.1
8.1
6.3
1.2
PTFE
Frequently Asked Questions
What is the primary function of the KL106 double wiper seal?
The KL106 is designed to prevent foreign particles like mud, dust, and water from entering hydraulic cylinders, while simultaneously reducing oil film thickness to maintain system efficiency.
What materials are used for the KL106 seal?
The standard construction utilizes high-performance PTFE (Polytetrafluoroethylene) combined with NBR (Nitrile Butadiene Rubber) to ensure low friction and excellent sealing durability.
Can these seals handle extreme temperatures?
Yes, the KL106 is engineered to operate reliably within a temperature range of -30°C to +105°C, making it suitable for most industrial hydraulic environments.
Is the KL106 suitable for heavy-duty industrial applications?
Absolutely. Its special head design and large diameter compatibility make it ideal for the iron and steel industry, large presses, and injection moulding machines.
Does this seal prevent stick-slip effects?
Yes, one of the primary advantages of the KL106 PTFE material composition is its low-friction property, which ensures smooth movement and stick-slip free operation.
What are the available color options?
Standard colors include Red, Blue, and Black. However, custom colors can be manufactured based on specific customer requirements.
