PTFE Cylinder Wiper Seal

NBR Cylinder Wiper Seal

Place of Origin:

CHINA

Brand Name:

KELONG

Certification:

ISO9001 / IRIS

Model Number:

KL105

Send Inquiry

Product Description

KL105 PTFE Wiper with Energizer O-Ring | Simple Groove Design & Wide Dimension Range
Technical Specifications
Product Name:Double Wiper Seal
Material:PTFE + NBR
Max Temperature:-30 / +105 °C
Max Sliding Speed:5.0 M/s
Color Options:Red / Blue / Black / Custom
Minimum Order:100 Pcs
Delivery Time:15 Days
Payment Terms:L/C, T/T
Supply Ability:100,000 pcs/month
Packaging:Customizable
Core Advantages
Low Friction & No Stick-slip Performance
Simple Groove Design for Easy Installation
Capable of High Sliding Speeds up to 5m/s
Wide Range of Dimension Choices
Main Applications
Injection Moulding Machines
Standard Industrial Cylinders
Iron and Steel Industry
Presses
Product Visuals
KL105 PTFE NBR Cylinder Wiper Seal

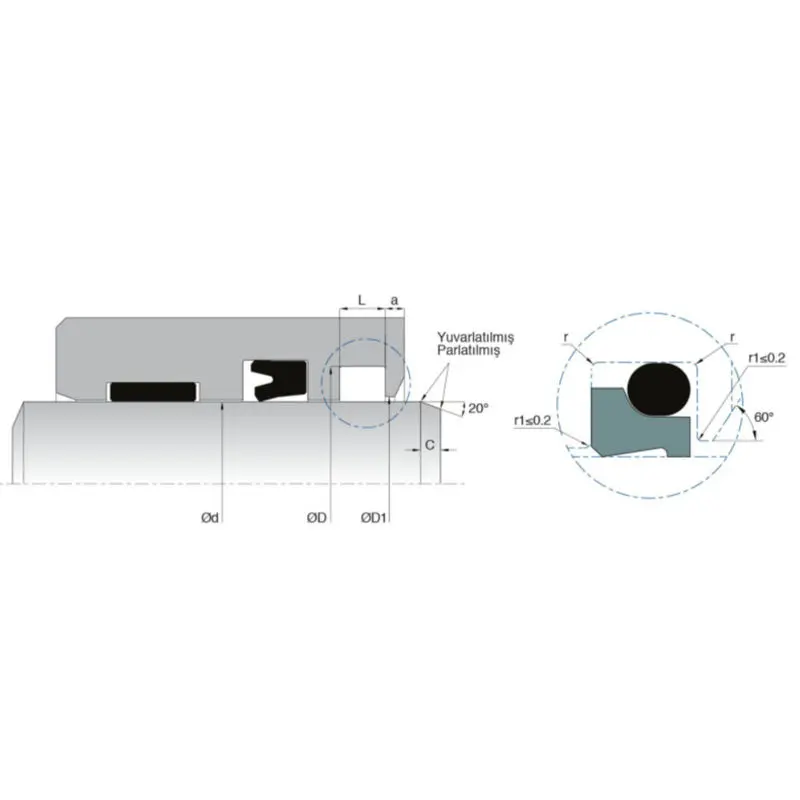

Dimension Reference Table
Model No. d (f8) D (H9) D1 (H11) L (+0.2/-0) amin r C Material
KL105-0101014.811.53.720.42PTFE
KL105-0121218.813.5520.82.5PTFE
KL105-0151521.816.5520.82.5PTFE
KL105-0161622.817.5520.82.5PTFE
KL105-0252531.826.5520.83PTFE
KL105-0404046.841.5520.83PTFE
KL105-100100108.8101.56314PTFE
KL105-200200208.8201.56314PTFE
KL105-4404404564421141.56PTFE
Frequently Asked Questions
What materials are used in the KL105 wiper seal?
The KL105 is constructed using a high-performance PTFE wiper element energized by an NBR O-ring.
What is the maximum operating speed for this seal?
This double wiper seal is designed for high-speed applications, supporting a maximum sliding speed of up to 5.0 M/s.
Can this seal withstand extreme temperatures?
Yes, the KL105 operates efficiently within a temperature range of -30°C to +105°C.
Which industries typically use the KL105 wiper?
It is widely used in injection moulding machines, standard industrial cylinders, the iron and steel industry, and various types of presses.
Is the color of the seal customizable?
Standard colors include Red, Blue, and Black, but we can provide custom colors based on specific customer requirements.
What is the minimum order quantity (MOQ)?
The minimum order quantity for the KL105 Double Wiper Seal is 100 pieces.
