KL103 PTFE Wiper Seal

PTFE Wiper Seal Types

Pneumatic Wiper Seal Low Friction

Place of Origin:

CHINA

Brand Name:

KELONG

Certification:

ISO9001 / IRIS

Model Number:

KL103

Send Inquiry

Product Description

Product Specifications
● Name: PTFE Wiper Seal Types
● Material: PTFE / NBR
● Temperature: -30/+105 °C (Max)
● Sliding Speed: 5.0 M/s (Max)
● Application: Pneumatic Cylinders
● Color: Red / Blue / Black / Custom
Supply & Terms
📦 MOQ: 100 Units
🚚 Delivery Time: 15 Days
💳 Payment: L/C, T/T
🏭 Supply Ability: 100,000 pcs / month

KL103 PTFE wipers consist of a PTFE wiper ring and two o-rings. The wiper ring design has two lips on the contact surface and provides superior wiping performance. KL103 can offer wider temperature intervals and media compatibility with special versions produced from different elastomer and PTFE compounds.

Advantages
  • High speed and frequency capability
  • Wide operational temperature range
  • Superior wiping performance with double lip design
  • Low coefficient of friction
Area of Application
  • Injection Moulding Machines
  • Industrial machines
  • Mobile machinery
  • Control and regulatory equipment
KL103 PTFE Wiper Seal

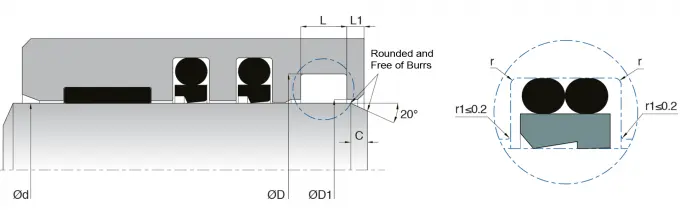

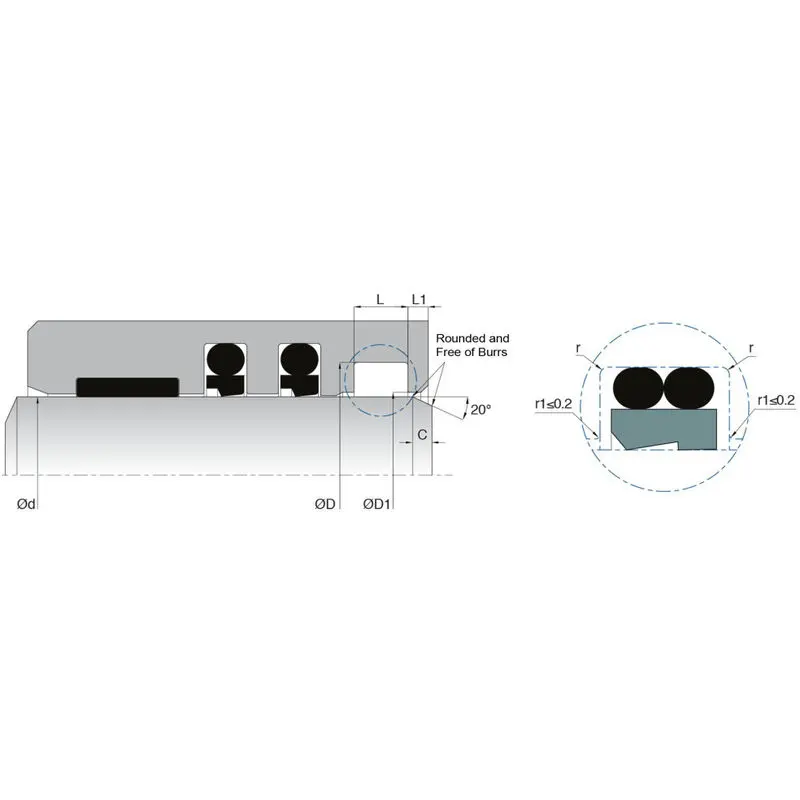

Technical Dimensions
Model d (f8) D (H9) D1 (+0.2/-0) L (+0.2/-0) L1 r C Material
KL103-0252532.6264.240.43PTFE
KL103-0282835.6294.240.43PTFE
KL103-0303037.6314.240.43PTFE
KL103-0323239.6334.240.43PTFE
KL103-0353542.6364.240.43PTFE
KL103-0363643.6374.240.43PTFE
KL103-0404048.841.56.341.23PTFE
KL103-0454553.846.56.341.23PTFE
KL103-0505058.851.56.341.23PTFE
KL103-0555563.856.56.341.24PTFE
KL103-0606068.861.56.341.24PTFE
KL103-0707082.2728.1624PTFE
KL103-0808092.2828.1624PTFE
KL103-100100112.21028.1624PTFE
KL103-120120132.11228.1624PTFE
KL103-15015016615211.5626PTFE
KL103-20020021620211.5626PTFE
KL103-23023024623211.5628PTFE
Frequently Asked Questions
What materials are the KL103 wiper seals made of?
The KL103 wiper seals are primarily composed of high-quality PTFE combined with NBR (Nitrile Rubber) o-rings for optimal sealing and elasticity.
What is the maximum sliding speed these seals can handle?
The seals are designed for high-speed performance, supporting a maximum sliding speed of up to 5.0 meters per second.
What temperature range is suitable for these PTFE wipers?
These wipers are durable across a wide temperature spectrum, ranging from -30°C to a maximum of +105°C.
Can I customize the color and packaging of the seals?
Yes, we offer customizable color options (including Red, Blue, and Black) and packaging can be tailored according to customer requirements.
What industries commonly use the KL103 series?
They are extensively used in injection moulding machines, pneumatic cylinders, mobile machinery, and various industrial regulatory equipment.
What is the main advantage of the double-lip design?
The double-lip design on the contact surface ensures superior wiping performance while maintaining a low coefficient of friction, extending the equipment life.
