Cheap KL06 NBR / PU / POM Heavy Duty Rod Seal For Mining Industry Exporters, Pricelist

PU Heavy Duty Rod Seal

POM Heavy Duty Rod Seal

Heavy Duty PU Rod Seal

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KL06

Send Inquiry

Product Description

Product Specifications

Material:NBR / PU / POM

Temperature (max):-30/+100 °C

Pressure (max):400 Bar

Sliding Speed (max):0.5 M/s

Style:Hydraulic Rod Seals

Application:Marine Hydraulics / Scrap Metal Presses

Payment & Shipping Details

Packaging:Opp bag

Delivery Time:7-15 work days

Payment Terms:L/C, T/T, Paypal

Supply Ability:100,000 pcs / month

KL06 Heavy Duty Rod Seal: Designed for Variable Pressure Hydraulic Applications

The KL06 heavy duty rod seal is engineered for hydraulic rod applications. It consists of a special geometry polyurethane seal, an elastomer ring that functions as an energizer at low pressures, and a thermoplastic backup ring for superior extrusion resistance.

Key Advantages

✔Superior static and dynamic sealing effect

✔Excellent performance at variable pressure levels

✔Improved sealing gap via integrated back-up ring

✔Safe operation in long duration locking systems

✔High wear resistance and compressive strength

Areas of Application

⚙Mining industry

⚙Iron and steel industry

⚙Scrap metal presses

⚙Mobile machinery

⚙Marine hydraulics

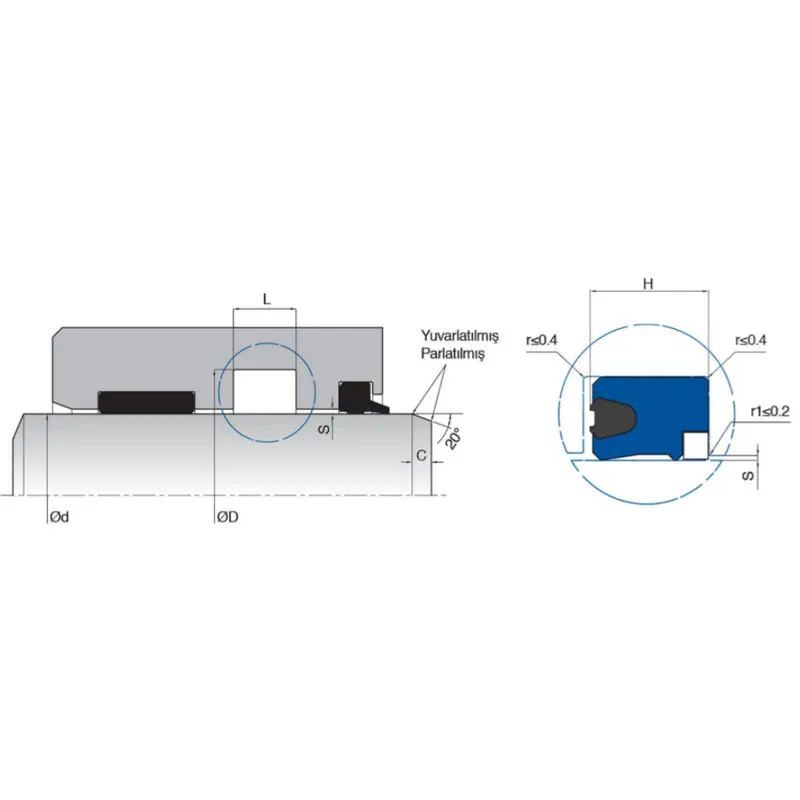

Model Specifications Table

Model	d (f8)	D (H10)	L (+0.2/-0)	H	C	Material
KL06-025	25	35	8.3	7.3	5.5	PU
KL06-030	30	40	11	10	5.5	PU
KL06-030/1	30	40	8.3	7.3	5.5	PU
KL06-035	35	50	10.5	9.5	6	PU
KL06-040	40	55	10.5	9.5	6	PU
KL06-040/1	40	50	8.3	7.3	5.5	PU
KL06-040/2	40	55	12.4	11.4	6	PU
KL06-040/3	40	52	9.6	8.6	5.5	PU
KL06-045	45	60	12.4	11.4	6	PU
KL06-050	50	65	12.4	11.4	6	PU
KL06-050/3	50	60	8.3	7.3	5.5	PU
KL06-055	55	70	12.4	11.4	6	PU
KL06-055/1	55	68	14	13	5.5	PU
KL06-056	56	71	12.4	11.4	6	PU
KL06-060	60	75	12.4	11.4	6	PU
KL06-060/1	60	73	14	13	5.5	PU
KL06-060/2	60	72	9.6	8.6	5.5	PU
KL06-063/1	63	75	9.6	8.6	5.5	PU
KL06-063/2	63	78	12.4	11.4	6	PU
KL06-063/3	63.5	73.02	10.5	9.53	5.5	PU
KL06-065	65	78	11	10	5.5	PU
KL06-065/1	65	80	10	9	6	PU
KL06-070	70	85	12.4	11.4	6	PU
KL06-070/1	70	83	11	10	5.5	PU
KL06-070/2	70	85	10	9	6	PU
KL06-070/3	70	80	13	12	5.5	PU
KL06-070/4	70	85	11	10	6	PU
KL06-075	75	88	11	10	5.5	PU
KL06-080	80	95	12.4	11.4	6	PU
KL06-090	90	105	12.4	11.4	6	PU
KL06-100	100	120	15.5	14.5	6.5	PU
KL06-120	120	140	13	12	6.5	PU
KL06-150	150	160	15.5	14.5	5.5	PU
KL06-200	200	220	15.6	14.6	6.5	PU
KL06-300	300	320	15.5	14.5	6.5	PU
KL06-340	340	365	20	19	8	PU

Frequently Asked Questions

What are the primary applications for the KL06 rod seal?

The KL06 seal is specifically designed for heavy-duty hydraulic environments, including mining industry equipment, iron and steel machinery, scrap metal presses, and marine hydraulics.

Can this seal operate under variable pressure?

Yes. Its unique geometry includes an elastomer ring that acts as an energizer specifically to maintain sealing performance at low pressures, while the thermoplastic backup ring handles high-pressure extrusion.

What is the temperature and pressure rating?

The KL06 rod seal can safely operate at temperatures ranging from -30°C to +100°C and can withstand maximum pressures up to 400 Bar.

What materials is the KL06 seal made of?

It is manufactured using a high-performance combination of NBR (Nitrile Butadiene Rubber), PU (Polyurethane), and POM (Polyoxymethylene/Thermoplastic) for the backup ring.

How long does delivery typically take?

Standard delivery time for the KL06 rod seal ranges from 7 to 15 working days, depending on the order size and specific model requirements.

What is the maximum sliding speed for this seal?

The KL06 seal is designed to handle a maximum sliding speed of 0.5 meters per second (M/s) in hydraulic rod applications.
