KL04 Hydraulic Rod Seals

Single Acting Hydraulic Rod Seals

ISO9001 Rod Hydraulic Seals

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KL04

Send Inquiry

Product Description

KL04 is a single acting hydraulic rod seal meticulously designed for light and medium duty applications, providing reliable performance in various industrial environments.

📊 Product Specifications

Style Rod Hydraulic Seals

Temperature (max) °C -40/+100 -35/+105

Pressure (max) Bar 400 / 150

Material PU / NBR

Sliding Speed (max) M/s 0.5

Application Standard Industrial Cylinders / Forklifts

⭐ Key Advantages

Superior static and dynamic sealing effect

Wide range of dimensions available

Easy installation into closed grooves

🏗️ Area of Application

Agricultural machinery

Construction machinery

Injection moulding machines

Standard industrial cylinders

Presses

Loading platforms

Forklifts

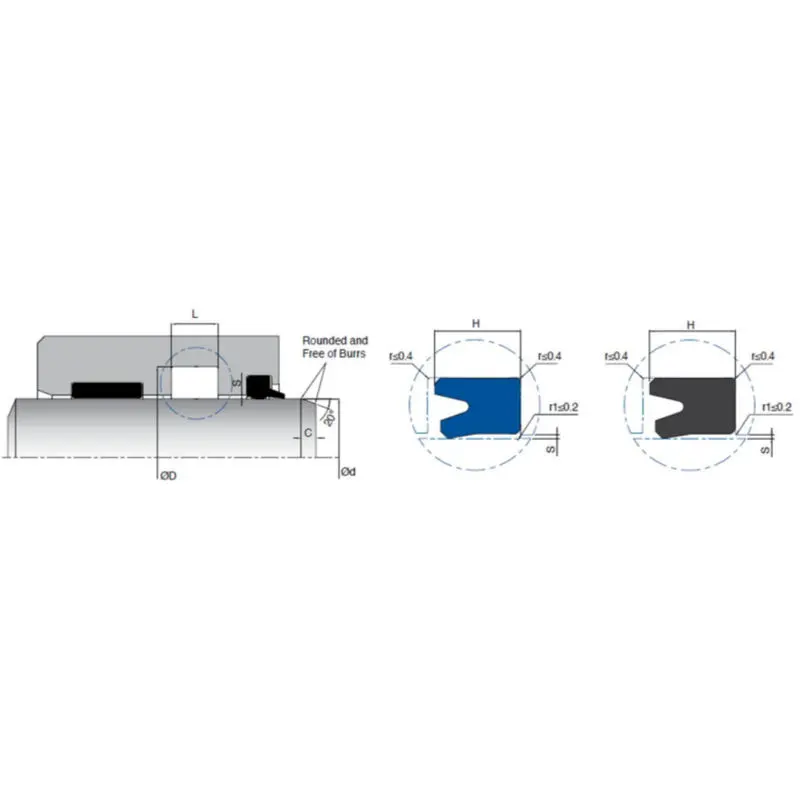

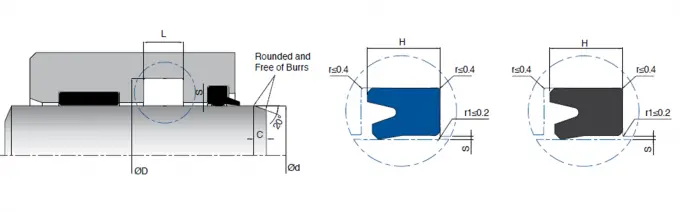

📋 Technical Data & Dimensions

Model Number	d (f8)	D (H10)	L (+0.2/-0)	H	C	Material
KL04-002/2	2	5.5	3.1	2.6	2.5	NBR
KL04-004/1	4	8	3.5	3	2.5	NBR
KL04-004/6	4	12	7	6	4.5	NBR
KL04-004/6 PU	4	12	7	6	4.5	PU
KL04-006/1	6	10	3.5	3	2.5	NBR
KL04-006/1 PU	6	10	3.5	3	2.5	PU
KL04-008	8	14	4.5	4	3.5	NBR
KL04-008 PU	8	14	4.5	4	3.5	PU
KL04-008/4	8	16	6.5	5.5	4.5	NBR
KL04-008/5	8	13	3.5	3	3	NBR
KL04-008/5 PU	8	13	3.5	3	3	PU
KL04-009/2	9.52	16.5	4.46	3.96	3.5	NBR
KL04-010	10	18	6.5	5.5	4.5	NBR
KL04-010 PU	10	18	6.5	5.5	4.5	PU
KL04-010/1	10	16	5	4.5	3.5	NBR
KL04-010/1 PU	10	16	5	4.5	3.5	PU
KL04-010/2	10	14	4.5	4	2.5	NBR
KL04-010/2 PU	10	14	4.5	4	2.5	PU
KL04-010/3	10	16	7	6	3.5	NBR
KL04-010/4	10	14	2.5	2	2.5	NBR
KL04-010/4 PU	10	14	2.5	2	2.5	PU
KL04-010/5	10	20	7.5	6.5	5.5	NBR
KL04-010/7	10	13.6	2.8	2.3	2.5	NBR
KL04-010/7 PU	10	13.6	2.8	2.3	2.5	PU
KL04-012/1	12	20	6.5	5.5	4.5	NBR
KL04-012/1 PU	12	20	6.5	5.5	4.5	PU
KL04-012/4	12	18	5	4.5	3.5	NBR
KL04-012/4 PU	12	18	5	4.5	3.5	PU
KL04-012/6	12	16	3.5	3	2.5	NBR
KL04-012/6 PU	12	16	3.5	3	2.5	PU
KL04-014	14	22	6.5	5.5	4.5	NBR
KL04-014 PU	14	22	6.5	5.5	4.5	PU
KL04-014/3	14	20	5	4.5	3.5	NBR
KL04-015	15	23	7	6	4.5	NBR
KL04-015 PU	15	23	7	6	4.5	PU
KL04-015/1	15.87	22.22	5.26	4.76	3.5	NBR
KL04-015/1 PU	15.87	22.22	5.26	4.76	3.5	PU
KL04-016	16	20.5	6	5	2.5	NBR
KL04-016 PU	16	20.5	6	5	2.5	PU
KL04-016/1	16	22.5	5	4.5	3.5	NBR
KL04-016/2	16	26	8	7	5.5	NBR
KL04-016/2 PU	16	26	8	7	5.5	PU
KL04-016/3	16	24	6.5	5.5	4.5	NBR
KL04-016/3 PU	16	24	6.5	5.5	4.5	PU
KL04-016/4	16	24	7.5	6.5	4.5	NBR
KL04-016/4 PU	16	24	7.5	6.5	4.5	PU
KL04-016/5	16	23	6.5	5.5	4	NBR
KL04-016/5 PU	16	23	6.5	5.5	4	PU
KL04-016/6	16	22	4.5	4	3.5	NBR
KL04-016/9	16	24	6	5	4.5	NBR
KL04-016/9 PU	16	24	6	5	4.5	PU
KL04-016/10	16	22	6	5	3.5	NBR
KL04-016/10 PU	16	22	6	5	3.5	PU
KL04-018	18	24	6	5	3.5	NBR
KL04-018 PU	18	24	6	5	3.5	PU
KL04-018/1	18	25	6	5	4	NBR
KL04-018/1 PU	18	25	6	5	4	PU
KL04-018/2	18	25	6.5	5.5	4	NBR
KL04-018/2 PU	18	25	6.5	5.5	4	PU
KL04-018/3	18	28	8	7	5.5	NBR
KL04-018/3 PU	18	28	8	7	5.5	PU
KL04-018/4	18	22	3.5	3	2.5	NBR
KL04-018/5	18	25	5	4.5	4	NBR
KL04-018/5 PU	18	25	5	4.5	4	PU
KL04-018/7	18	26	6.5	5.5	4.5	NBR
KL04-019	19.05	25.4	5.3	4.76	3.5	NBR
KL04-019 PU	19.05	25.4	5.3	4.76	3.5	PU
KL04-020	20	30	7	6	5.5	NBR
KL04-020 PU	20	30	7	6	5.5	PU
KL04-020/4 PU	20	28	6.5	5.5	4.5	PU
KL04-020/6	20	26	4	3.5	3.5	NBR
KL04-020/6 PU	20	26	4	3.5	3.5	PU
KL04-020/7	20	30	9	8	5.5	NBR
KL04-020/7 PU	20	30	9	8	5.5	PU
KL04-020/8	20	30	8	7	5.5	NBR
KL04-020/8 PU	20	30	8	7	5.5	PU
KL04-020/9	20	30	8.5	7.5	5.5	NBR
KL04-020/9 PU	20	30	8.5	7.5	5.5	PU
KL04-020/10	20	32	7	6	5.5	NBR
KL04-020/10 PU	20	32	7	6	5.5	PU
KL04-020/11	20	32	8	7	5.5	NBR
KL04-020/12	20.63	28.57	5.26	4.76	4.5	NBR
KL04-020/12 PU	20.63	28.57	5.26	4.76	4.5	PU
KL04-020/14	20	28	4.5	4	4.5	NBR
KL04-020/14 PU	20	28	4.5	4	4.5	PU
KL04-022	22	32	7	6	5.5	NBR
KL04-022 PU	22	32	7	6	5.5	PU
KL04-022/1	22	30	9	8	4.5	NBR
KL04-022/1 PU	22	30	9	8	4.5	PU
KL04-022/2	22	30	8	7	4.5	NBR
KL04-022/2 PU	22	30	8	7	4.5	PU
KL04-022/3	22	30	6.5	5.5	4.5	NBR
KL04-022/3 PU	22	30	6.5	5.5	4.5	PU
KL04-022/4	22.22	31.75	7.35	6.35	5.5	NBR
KL04-022/4 PU	22.22	31.75	7.35	6.35	5.5	PU
KL04-022/6	22	29	6	5	4	NBR
KL04-022/6 PU	22	29	6	5	4	PU
KL04-022/8 PU	22	32	8.3	7.3	5.5	PU
KL04-023	23	31	6.5	5.5	4.5	NBR

🚚 Payment & Shipping Terms

Packaging Details Opp bag

Delivery Time 7-15 work days

Payment Terms L/C, T/T, Paypal

Supply Ability 100,000 pcs /months

❓ Frequently Asked Questions

What is the primary function of the KL04 seal?

The KL04 is a single acting hydraulic rod seal specifically designed for light to medium duty applications in hydraulic cylinders.

What materials are used in the KL04 seals?

These seals are available in both high-quality Polyurethane (PU) and Nitrile Butadiene Rubber (NBR) to suit different operating conditions.

Can these seals handle high-pressure environments?

Yes, the KL04 seals are rated for a maximum pressure of up to 400 Bar (material dependent).

In which machinery are KL04 seals typically used?

They are widely used in agricultural machinery, forklifts, construction equipment, presses, and standard industrial cylinders.

Is the installation process complex?

No, one of the key advantages of the KL04 seal is its easy installation, even into closed grooves.

What is the typical lead time for an order?

Standard delivery time is between 7 to 15 working days, depending on the order quantity and specific requirements.
