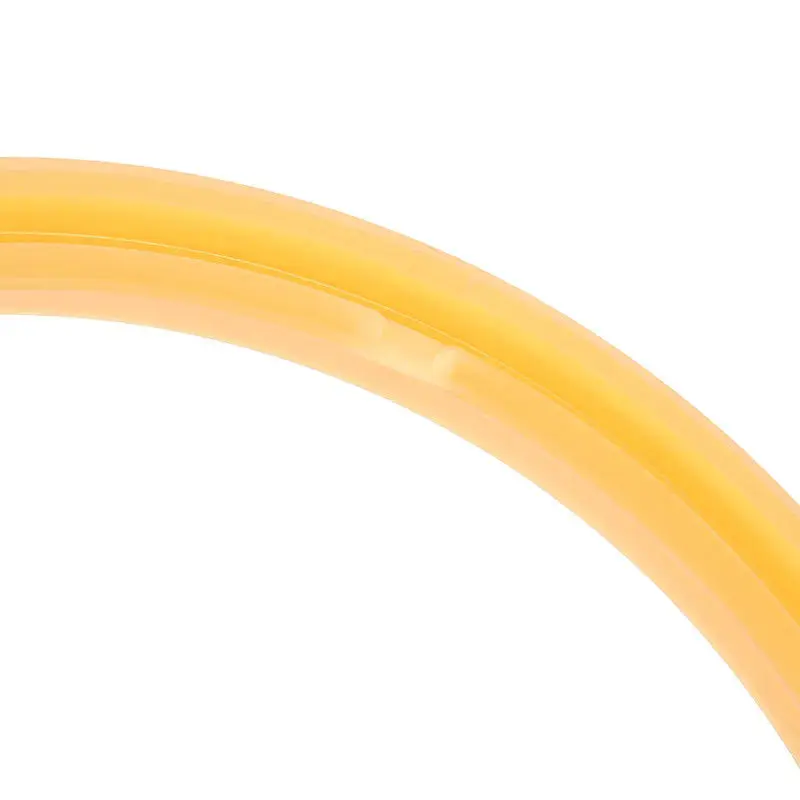

Hydraulic Oil Seal: Wear-resistant and durable piston seal (140*150*6) yellow rod oil seals. The KLHPS-04 is a high-performance single-acting U-rod or piston all-purpose seal that provides the driest seal in light and medium-load applications. Injection molded with high-performance U5203 material, it is easy to install and offers excellent low-temperature resistance.
When used in conjunction with a full-coverage retainer, the seal may be considered for heavy-duty applications. The unique design seal lip angle provides optimal sealing performance.
Temp: -30°C to 125°C | Hardness: 40-90A
Advantages: Excellent oil resistance and stability, widely used, affordable.
Temp: 20°C to 250°C | Hardness: 50-90A
Advantages: Wear resistance, acid/alkali resistance, high temperature resistance.
Temp: 60°C to 225°C | Hardness: 25-90A
Advantages: Food grade, heat resistance, cold resistance, and water resistance.
Temp: 50°C to 150°C | Hardness: 40-90A
Advantages: Excellent ozone, heat, steam, and cold resistance.
| Item Type | High Temp (°C) | Low Temp (°C) | Properties |
|---|---|---|---|
| ACM | 150 | -10 | Good resistance to heat, ozone and oil. Used in diaphragm and automotive hoses. |
| NR | 70 | -40 | Excellent compression set, high tensile strength, and vibration dampening. |
| VMQ | 225 | 55 | Widest temperature ranges. Good weather and ozone resistance. |
| PTFE | 250 | -150 | Low friction coefficient, used in oil seal lips. |
| TPU | 100 | -40 | Extremely good mechanical properties, abrasive resistance, and tear strength. |
| XNBR | 100 | -40 | Carboxyl group modification. Better tensile strength and abrasion than NBR. |
