Kelong Hydraulic Piston Seals

Mobile Machinery Hydraulic Piston Seals

PTFE Piston Seal Material

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KL51

Send Inquiry

Product Description

Product Details

Style Hydraulic Piston Seals

Material PTFE / NBR

Pressure (max) 400 Bar

Temperature (max) -30 / +105 °C

Sliding Speed (max) 5.0 M/s

Application Forklifts / Cranes

Payment & Shipping Terms

Packaging Details Opp bags

Delivery Time 7-15 work days

Payment Terms L/C, T/T, Paypal

Supply Ability 100,000 pcs / month

Description & Overview

KL51 is a double acting PTFE piston seal consisting of a PTFE sealing ring and an energizer elastomer profile ring. Similar to KL29, KL51 is a preferred sealing solution in mobile machinery and lifting equipment.

Advantages

✓ Low friction and no stick-slip

✓ High sealing performance

✓ Long service life

✓ Good extrusion resistance

Area of Application

➔ Cranes

➔ Injection moulding machines

➔ Hydraulic press cylinders

➔ Forklifts

➔ Construction machinery

Technical Specifications

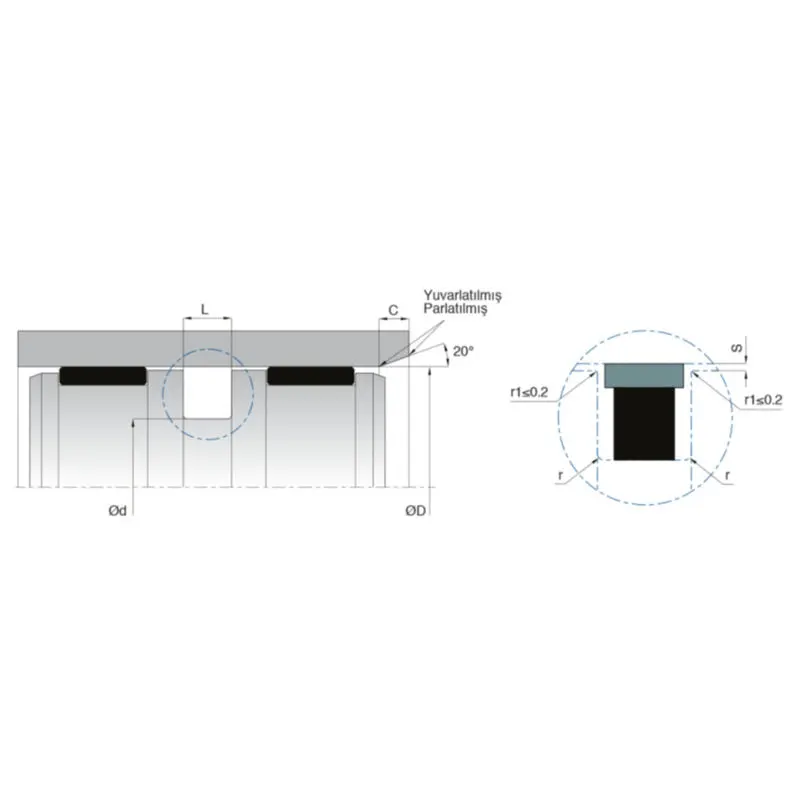

Model	D (H8)	d (h9)	L (+0.2/-0)	r	C	MATERIAL
KL51 045-035	45	35	4.5	0.4	5	PTFE
KL51 075-060	75	60	7.5	0.4	5	PTFE
KL51 080-065	80	65	7.5	0.4	5	PTFE
KL51 085-070	85	70	7.5	0.4	5	PTFE
KL51 090-075	90	75	7.5	0.4	5	PTFE
KL51 095-080	95	80	7.5	0.4	5	PTFE
KL51 100-085	100	85	7.5	0.4	5	PTFE
KL51 290-266	290	266	12	0.4	7.5	PTFE

Frequently Asked Questions

Q1: What is the main function of the KL51 piston seal?

A: The KL51 is a double-acting seal designed for hydraulic pistons, providing low friction and high sealing performance in mobile machinery.

Q2: Can these seals handle high-pressure environments?

A: Yes, the KL51 seals are designed to withstand pressures up to 400 Bar.

Q3: What materials are used in the construction of KL51?

A: It consists of a high-performance PTFE sealing ring and an NBR elastomer energizer profile ring.

Q4: What is the lead time for order delivery?

A: Standard delivery typically ranges from 7 to 15 working days depending on the order size.

Q5: Are these seals suitable for construction machinery?

A: Absolutely. They are ideal for excavators, forklifts, cranes, and various other construction hydraulic systems.

Q6: Do these seals prevent "stick-slip" motion?

A: Yes, the PTFE material ensures low friction which effectively eliminates stick-slip behavior during operation.
