The KL02 rod packing is a high-performance, single-acting rod sealing set. It is specifically engineered with a multi-lip structure, consisting of one header ring, three fabric elastomer rings, two elastomer rings, and one fabric elastomer back ring. This complex configuration ensures superior reliability in the most demanding environments.

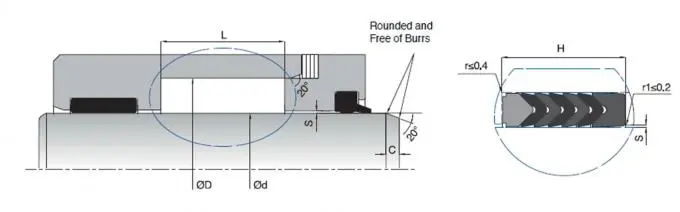

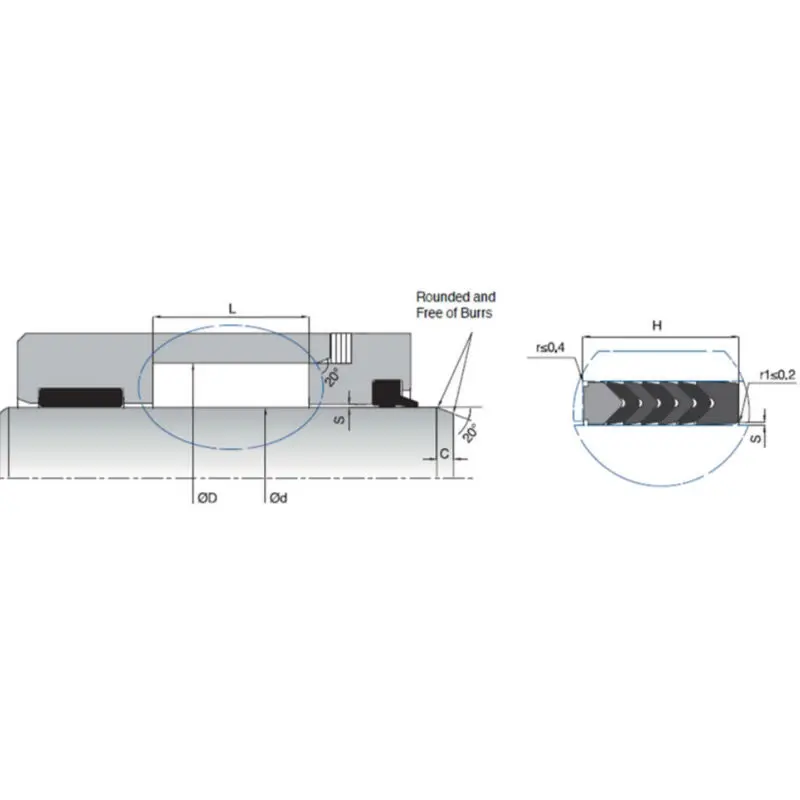

| Model No. | d (f8) | D (H9) | L (+0.2/-0) | H | Cross Section | E | C | Material |
|---|---|---|---|---|---|---|---|---|
| KL02-008 | 8 | 18 | 18.5 | 18.5 | 5 | 2.5 | 3 | FB |
| KL02-010 | 10 | 20 | 18.5 | 18.5 | 5 | 2.5 | 3 | FB |
| KL02-012 | 12 | 22 | 18.5 | 18.5 | 5 | 2.5 | 3 | FB |
| KL02-013 | 13.5 | 25 | 16.5 | 16.5 | 5.75 | - | 3 | FB |
| KL02-014 | 14 | 24 | 18.5 | 18.5 | 5 | 2.5 | 3 | FB |
| KL02-015 | 15 | 25 | 18.5 | 18.5 | 5 | 2.5 | 3 | FB |
| KL02-016 | 16 | 26 | 18.5 | 18.5 | 5 | 2.5 | 3 | FB |
| KL02-018 | 18 | 28 | 18.5 | 18.5 | 5 | 2.5 | 3 | FB |
| KL02-020 | 20 | 30 | 18.5 | 18.5 | 5 | 2.5 | 3 | FB |
| KL02-022 | 22 | 32 | 18.5 | 18.5 | 5 | 2.5 | 3 | FB |
| KL02-025 | 25 | 37 | 22.5 | 22.5 | 6 | 3 | 5 | FB |
| KL02-030 | 30 | 42 | 22.5 | 22.5 | 6 | 3 | 5 | FB |
| KL02-040 | 40 | 52 | 22.5 | 22.5 | 6 | 3 | 5 | FB |
| KL02-050 | 50 | 65 | 22.5 | 22.5 | 7.5 | 3 | 5 | FB |
| KL02-060 | 60 | 75 | 22.5 | 22.5 | 7.5 | 3 | 5 | FB |
| KL02-080 | 80 | 95 | 22.5 | 22.5 | 7.5 | 3 | 5 | FB |
| KL02-085 | 85 | 100 | 22.5 | 22.5 | 7.5 | 3 | 5 | FB |
