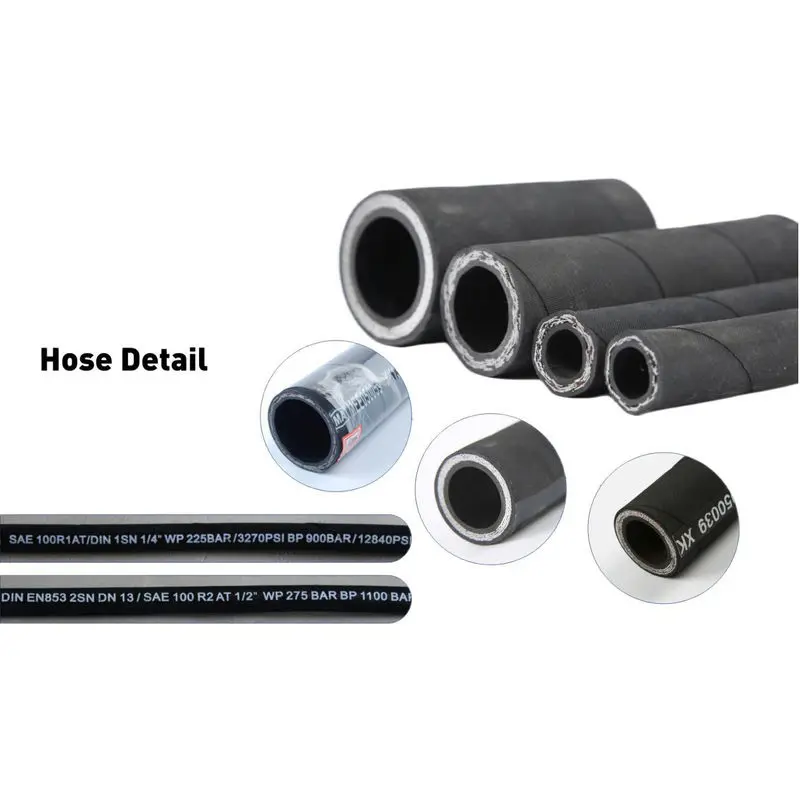

TUBE: Oil-resistant synthetic rubber inner layer + steel wire winding + oil-resistant and weather-resistant synthetic rubber outer layer.
Reinforcement: Four spiral layers of high tensile steel wire.
Cover: Abrasion and ozone resistant synthetic rubber.
Note: Various covers available upon request.
| TYPE | Dash size | I.D (mm) | W.D (mm) | OD (mm) | Working pressure | Proof pressure | Min Burst pressure | Min Bend radius | W.T (Kg/m) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | 1/16 | Inch | Min | Max | Min | Max | Min | Max | Max | Mpa | Psi | Mpa | Psi | Mpa | Psi | Inch | mm | ||
| KE5611-04 | 6.3 | -4 | 1/4 | 6.2 | 7.0 | 14.1 | 15.3 | 17.1 | 18.7 | - | 45 | 6525 | 90 | 13050 | 180 | 26100 | 5.91 | 150 | 0.64 |
| KE5611-06 | 10 | -6 | 3/8 | 9.3 | 10.1 | 16.9 | 18.1 | 20.6 | 22.2 | - | 44.5 | 6450 | 89 | 12905 | 178 | 25810 | 7.09 | 180 | 0.75 |
| KE5611-08 | 12.5 | -8 | 1/2 | 12.3 | 13.5 | 19.4 | 21.0 | 23.8 | 25.4 | - | 41.5 | 6020 | 83 | 12035 | 166 | 24070 | 9.06 | 230 | 0.89 |
| KE5611-10 | 16 | -10 | 5/8 | 15.5 | 16.7 | 23.0 | 24.6 | 27.4 | 29 | - | 35 | 5075 | 70 | 10150 | 140 | 20300 | 9.84 | 250 | 1.10 |
| KE5611-12 | 19 | -12 | 3/4 | 18.6 | 19.8 | 27.4 | 29.0 | 31.4 | 33 | - | 35 | 5075 | 70 | 10150 | 140 | 20300 | 11.81 | 300 | 1.50 |
| KE5611-16 | 25 | -16 | 1 | 25.0 | 26.4 | 34.5 | 36.1 | 38.5 | 40.9 | - | 28 | 4060 | 56 | 8120 | 112 | 16240 | 13.39 | 340 | 2.00 |
| KE5611-20 | 31.5 | -20 | 1-1/4 | 31.4 | 33.0 | 45.0 | 47.0 | 49.2 | 52.4 | - | 21 | 3045 | 42 | 6090 | 84 | 12180 | 18.11 | 460 | 3.00 |
| KE5611-24 | 38 | -24 | 1-1/2 | 37.7 | 39.3 | 51.4 | 53.4 | 55.6 | 58.8 | - | 18.5 | 2680 | 37 | 5365 | 74 | 10730 | 22.05 | 560 | 3.40 |
| KE5611-32 | 51 | -32 | 2 | 50.4 | 52.0 | 643.0 | 66.3 | 68.2 | 71.4 | - | 16.5 | 2390 | 33 | 4785 | 66 | 9570 | 25.98 | 660 | 4.35 |
