Double Acting Pneumatic Piston Seals

Small Groove Pneumatic Piston Seals

ISO Pneumatic Piston Seals

Place of Origin:

CHINA

Brand Name:

KELONG

Model Number:

KL-68

Send Inquiry

Product Description

K68 - PNEUMATIC PISTON SEAL

Easy Installation | Low Friction | Perfect Sealing Small Dimensions

The KL68 pneumatic piston seal is a double acting piston seal specifically engineered for use in small grooves, providing exceptional performance in compact industrial applications.

⚙️ Product Specifications
NameDouble Acting Pneumatic Piston Seals
MaterialNBR
Pressure (max)12 Bar
Sliding Speed (max)1.0 M/s
Temperature Range-30 / +105 °C
🚀 Key Advantages
Easy installation
Low friction
Perfect sealing for small dimensions
Double acting design
🛠️ Area of Application
  • Short stroke pneumatic cylinders
  • Industrial Valves
  • Recommended for use in cylinders according to ISO and CETOP standards.

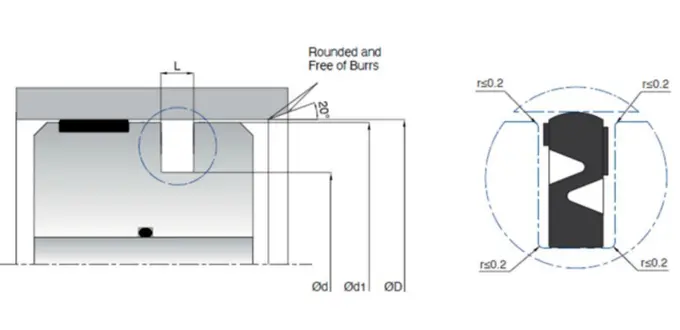

Double Acting Pneumatic Piston Seals ISO Approved

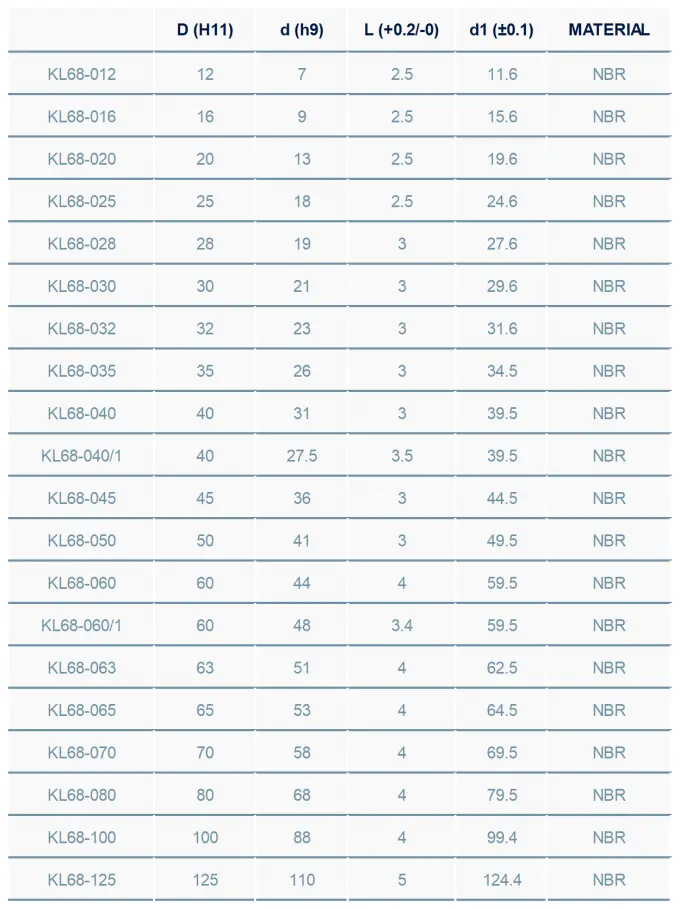

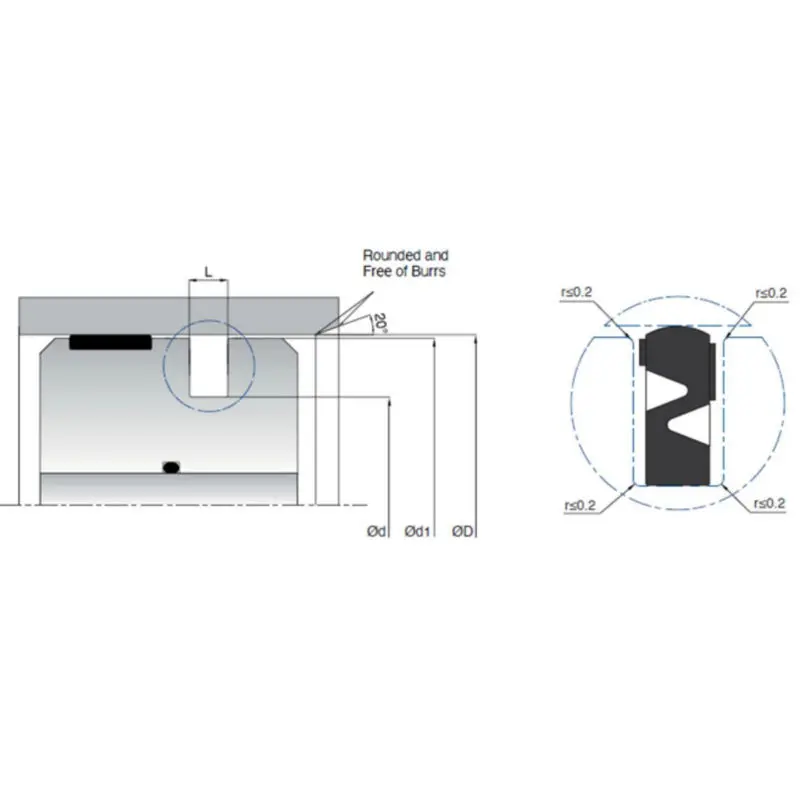

Pneumatic Piston Seals Technical Drawing
📦 Payment & Shipping Terms
Minimum Order Quantity100 pcs
PackagingCustomizable
Delivery Time15 Days
Payment TermsL/C, T/T
Supply Ability100,000 pcs / month
FAQ
What material is used for the K68 pneumatic piston seal?
The K68 piston seal is made of high-quality NBR (Nitrile Butadiene Rubber), ensuring durability and effective sealing.
What is the maximum working pressure for these seals?
These double-acting seals are designed to handle a maximum pressure of up to 12 Bar.
Are these seals compatible with ISO standards?
Yes, they are highly recommended for use in cylinders according to ISO and CETOP standards.
What temperature range can the K68 seal withstand?
The seal is capable of operating efficiently in temperatures ranging from -30°C to +105°C.
Can I customize the packaging for my order?
Absolutely. We offer customizable packaging details to meet your specific requirements.
What is the typical delivery time for a bulk order?
The standard delivery time is approximately 15 days, depending on the order volume.
