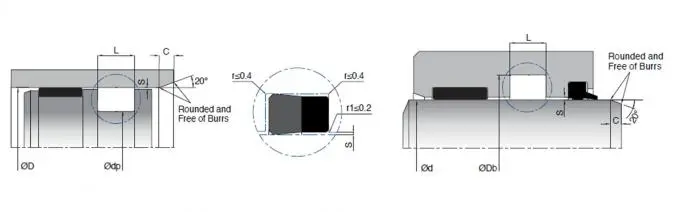

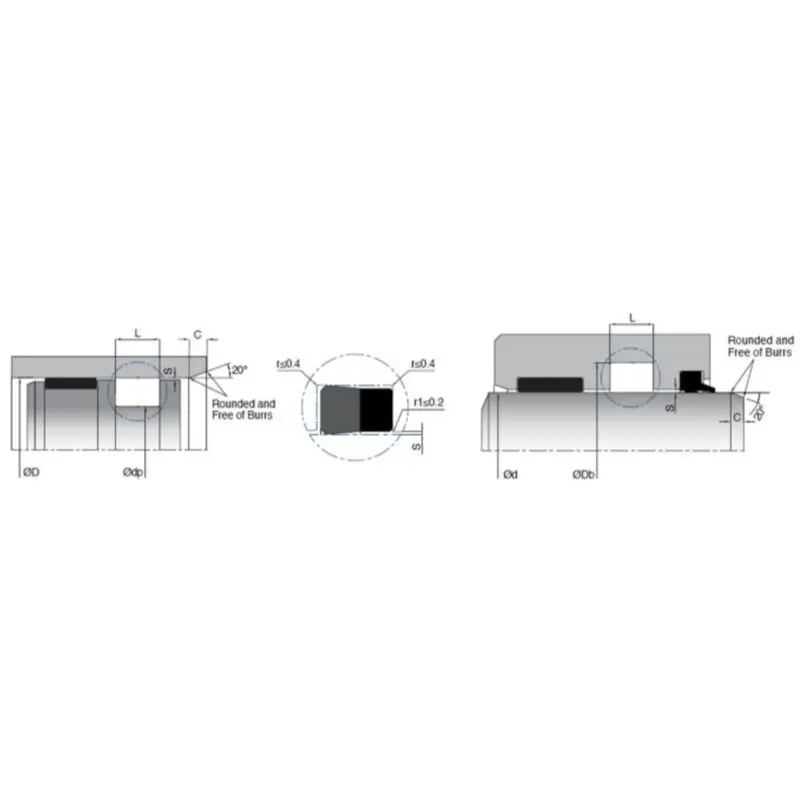

Single-acting sealing element used in hydraulic rod and piston applications with simple groove design. K36 single-acting sealing element designed to be used in hydraulic rod and piston applications, is made of the fabric reinforced elastomer material to increase the pressure resistance at the bottom and elastomer material that serves as a seal at the top.
| Model No. | d(h9) dp(f8) | Db(H10) D(H9) | L (+0.2/-0) | C | Material |
|---|---|---|---|---|---|
| K21-004 | 4.76 | 12.7 | 6.35 | 5 | NB |
| K21-010 | 10 | 17 | 6.3 | 5 | NB |
| K21-010/1 | 10 | 19 | 6.3 | 5 | NB |
| K21-012 | 12 | 20 | 6.3 | 5 | NB |
| K21-014 | 14 | 22 | 6.3 | 5 | NB |
| K21-015 | 15 | 23 | 6.3 | 5 | NB |
| K21-016 | 16 | 24 | 6.3 | 5 | NB |
| K21-018 | 18 | 26 | 6.3 | 5 | NB |
| K21-020 | 20 | 28 | 6.3 | 5 | NB |
| K21-022 | 22 | 30 | 6.3 | 5 | NB |
| K21-025 | 25 | 32 | 6.3 | 5 | NB |
| K21-030 | 30 | 38 | 6.3 | 5 | NB |
| K21-032 | 32 | 40 | 6.3 | 5 | NB |
| K21-035 | 35 | 43 | 6.3 | 5 | NB |
| K21-040 | 40 | 48 | 6.3 | 5 | NB |
| K21-050 | 50 | 62 | 9.5 | 5 | NB |
| K21-060 | 60 | 70 | 8 | 5 | NB |
| K21-070 | 70 | 80 | 7.5 | 5 | NB |
| K21-080 | 80 | 92 | 9.6 | 5 | NB |
| K21-100 | 100 | 115 | 12 | 7 | NB |
