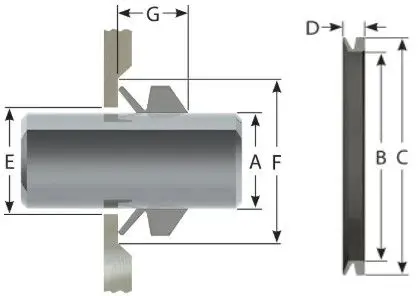

| Part Number | Shaft Diameter (A) | Seal Dimensions | Housing Dimensions | ||||
|---|---|---|---|---|---|---|---|
| I.D. (B) | O.D (C) | Height (D) | I.D. (E) | O.D (F) | Width (G) | ||
| VL 130 | 125.00-135.00 | 117.00 | 130.21 | 10.41 | A+5.08 | A+20.07 | 7.87±1.52 |
| VL 140 | 135.00-145.00 | 126.00 | 139.21 | 10.41 | A+5.08 | A+20.07 | 7.87±1.52 |
| VL 150 | 145.00-155.00 | 135.00 | 148.21 | 10.41 | A+5.08 | A+20.07 | 7.87±1.52 |
| VL 160 | 155.00-165.00 | 144.00 | 157.21 | 10.41 | A+5.08 | A+20.07 | 7.87±1.52 |
| VL 170 | 165.00-175.00 | 153.00 | 166.21 | 10.41 | A+5.08 | A+20.07 | 7.87±1.52 |
| VL 180 | 175.00-185.00 | 162.00 | 175.21 | 10.41 | A+5.08 | A+20.07 | 7.87±1.52 |
| VL 190 | 185.00-195.00 | 171.00 | 184.21 | 10.41 | A+5.08 | A+20.07 | 7.87±1.52 |
| VL 200 | 195.00-210.00 | 182.00 | 195.21 | 10.41 | A+5.08 | A+20.07 | 7.87±1.52 |
| VL 220 | 210.00-233.00 | 198.00 | 211.21 | 10.41 | A+5.08 | A+20.07 | 7.87±1.52 |
| VL 250 | 233.00-260.00 | 225.00 | 238.21 | 10.41 | A+5.08 | A+20.07 | 7.87±1.52 |
| VL 300 | 285.00-310.00 | 270.00 | 283.21 | 10.41 | A+5.08 | A+20.07 | 7.87±1.52 |
| VL 400 | 385.00-410.00 | 360.00 | 373.21 | 10.41 | A+5.08 | A+20.07 | 7.87±1.52 |
| VL 500 | 475.00-510.00 | 450.00 | 463.21 | 10.41 | A+5.08 | A+20.07 | 7.87±1.52 |
| VL 600 | 575.00-625.00 | 540.00 | 553.21 | 10.41 | A+5.08 | A+20.07 | 7.87±1.52 |
