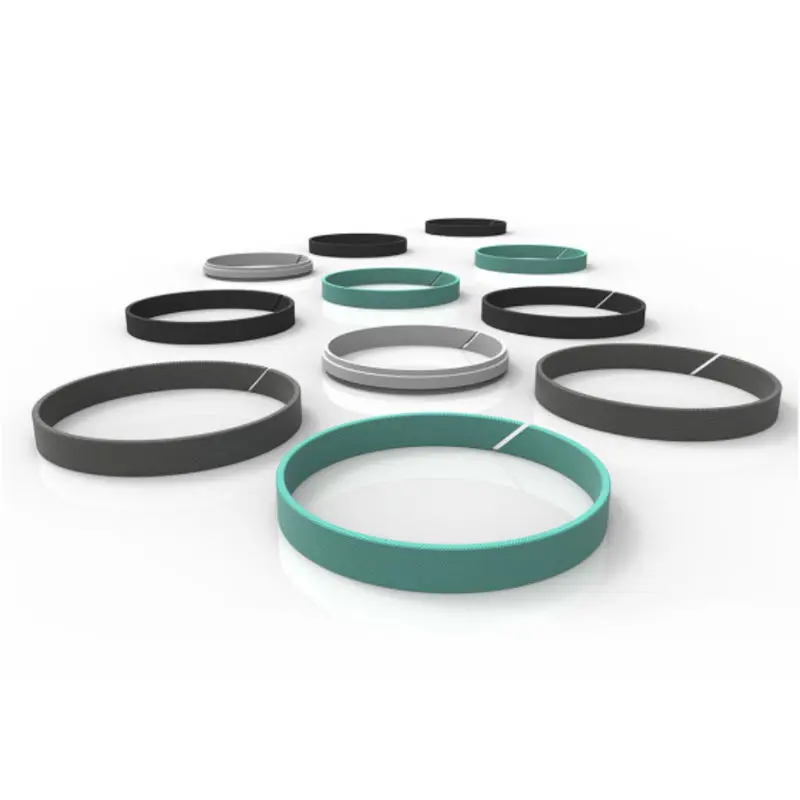

KL57 is a glass-fibre reinforced POM guide ring, specifically engineered for general-purpose use in hydraulic applications. The inclusion of glass-fibre composition significantly enhances the load-bearing capacity of the guiding element, ensuring durability under pressure.

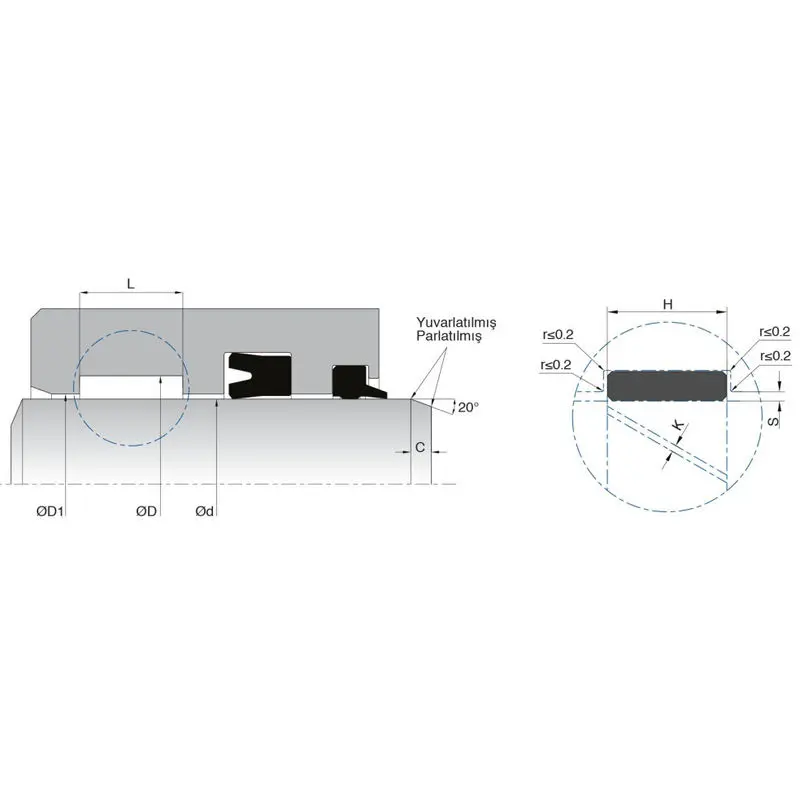

| Model No. | d (f8) | D (H8) | D1 (H9) | L (+0.2/-0) | H | Material |
|---|---|---|---|---|---|---|
| KL57-020 | 20 | 30 | 20.6 | 13 | 12.8 | POM |
| KL57-025 | 25 | 35 | 25.6 | 13 | 12.8 | POM |
| KL57-030 | 30 | 40 | 30.6 | 13 | 12.8 | POM |
| KL57-035 | 35 | 45 | 35.6 | 13 | 12.8 | POM |
| KL57-040 | 40 | 50 | 40.6 | 16 | 15.8 | POM |
| KL57-045 | 45 | 55 | 45.6 | 16 | 15.8 | POM |
| KL57-045/1 | 45 | 60 | 45.6 | 16 | 15.8 | POM |
| KL57-055 | 55 | 65 | 55.6 | 16 | 15.8 | POM |
| KL57-065 | 65 | 75 | 65.6 | 16 | 15.8 | POM |
| KL57-075 | 75 | 85 | 75.6 | 16 | 15.8 | POM |
