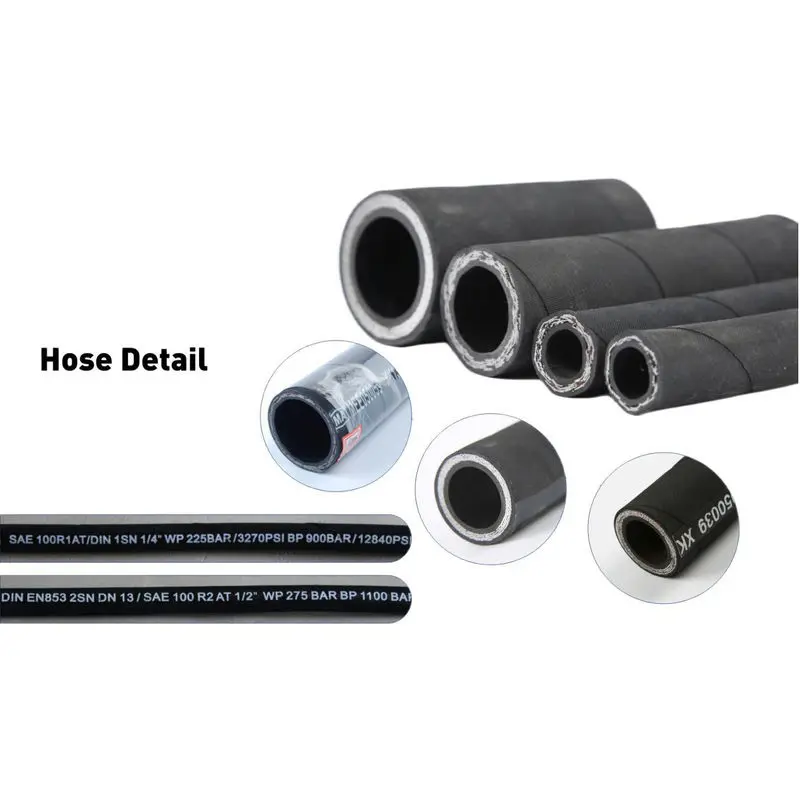

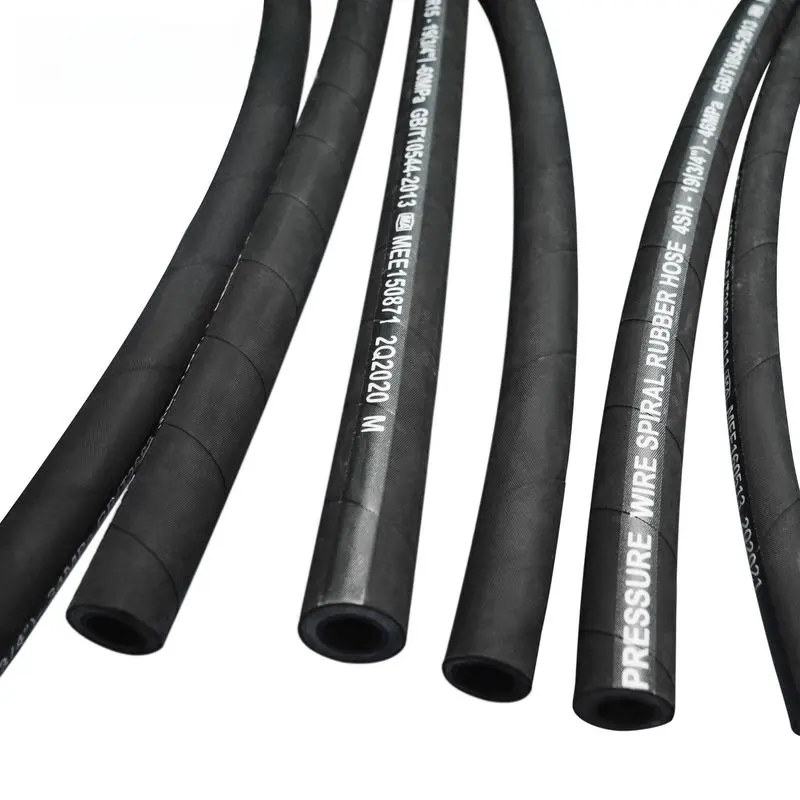

EN 856 4SH steel wire spiraled hydraulic hose has higher working pressure performance, making it perfectly suitable for extremely high-pressure working conditions. It delivers excellent performance in conveying petroleum-based hydraulic fluids within a temperature range of -40°C to +100°C.
Tube: Black synthetic rubber
Reinforcement: Four layers of high tensile and high strength spiraled steel wire
Cover: High quality black synthetic rubber
Working Temperature: -40℃ to +100℃
| Commodity | Specification |
|---|---|
| SAE 100 | R1,R2,R6,R7,R8,R9,R12,R13,R14,R15,R16,R17 |
| DIN EN853 | 1SN,2SN,1ST,2ST |
| DIN EN856 | 4SH 4SP |
| DIN EN857 | 1SC,2SC |
| Hose Code | Size | Dash Size | ID (mm) | WD (mm) | OD (mm) | Working Pressure | Min Burst Pressure | Min Bend Radius (mm) | Weight (kg/m) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | min | max | min | max | min | max | MPa | Psi | MPa | Psi | ||||
| EN8564SH-01 | 19 | 3/4 | -12 | 18.6 | 19.8 | 27.6 | 29.2 | 31.4 | 33.0 | 42.0 | 6090 | 168 | 24360 | 280 | 1.70 |
| EN8564SH-02 | 25 | 1 | -16 | 25.0 | 26.4 | 34.4 | 36.0 | 37.5 | 39.9 | 38.0 | 5510 | 152 | 22040 | 340 | 2.50 |
| EN8564SH-03 | 31.5 | 1-1/4 | -20 | 31.4 | 33.0 | 40.9 | 42.9 | 43.9 | 47.1 | 32.5 | 4710 | 130 | 18850 | 460 | 3.00 |
| EN8564SH-04 | 38 | 1-1/2 | -24 | 37.7 | 39.3 | 49.8 | 49.8 | 51.9 | 55.1 | 29.0 | 4205 | 116 | 16820 | 560 | 3.60 |
| EN8564SH-05 | 51 | 2 | -32 | 50.4 | 52.0 | 64.2 | 64.2 | 66.5 | 69.7 | 25.0 | 3625 | 100 | 14500 | 700 | 5.00 |
