Thermoplastic Sealing Elements

PU Sealing Elements

Custom Hydraulic Sealing Elements

Place of Origin:

CHINA

Brand Name:

KELONG

Model Number:

KL-122

Send Inquiry

Product Description

Product Specifications
⚙️
Name: Sealing Elements
🧪
Material: PU (Polyurethane)
🌡️
Temperature (max): -35 / +110 °C
⏲️
Pressure (max): 600 Bar
🛠️
Application: Hydraulic Breakers
Payment & Shipping Terms
📦
Min Order: 100
🚚
Delivery Time: 15 Days
💰
Payment: L/C, T/T
🏭
Supply Ability: 100,000 pcs / month

KL122- STATIC SEAL Sealing Elements is a heavy duty static seal made by thermoplastic material and works at flange type applications.

KL122 is designed specifically for heavy duty performance in flange type (cap) applications, ensuring long-lasting reliability under extreme conditions.

Main Advantages
  • High static sealing performance for demanding environments.
  • Secure sitting and precise fitment in the housing.
  • Exceptional extrusion resistance due to premium TPU material.
  • Thermoplastic construction for enhanced durability.
Area of Application
  • Hydraulic control and regulation equipment.
  • Industrial hydraulic breakers and heavy machinery.
PU Thermoplastic Sealing Elements for Hydraulic Breakers

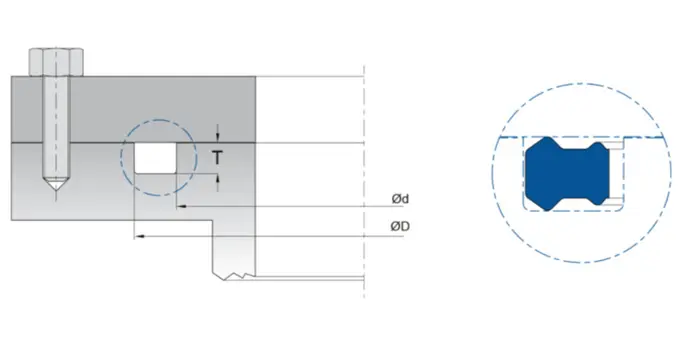

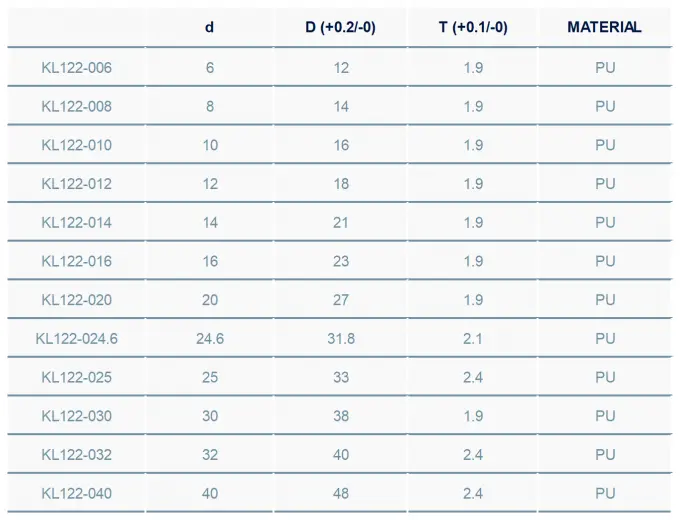

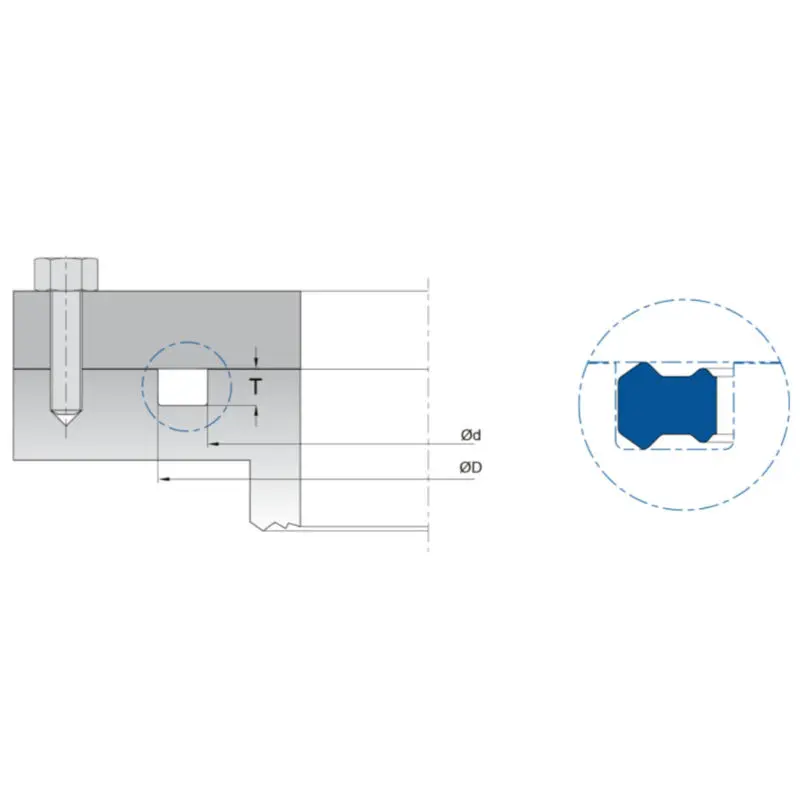

KL122 Static Seal Technical Drawing
Frequently Asked Questions
What is the primary material used for KL122 seals?
The KL122 static seal is manufactured from high-grade PU (Polyurethane) thermoplastic material, known for its excellent extrusion resistance.
What is the maximum pressure capacity of these sealing elements?
These heavy-duty sealing elements can withstand a maximum pressure of up to 600 Bar, making them ideal for high-pressure hydraulic applications.
In which temperature range can these seals operate?
KL122 seals are designed to operate effectively in temperatures ranging from -35°C up to +110°C.
What are the typical applications for KL122 seals?
They are primarily used in hydraulic breakers and hydraulic control and regulation equipment, specifically for flange type (cap) applications.
Can the packaging be customized for bulk orders?
Yes, we provide customizable packaging details to meet specific shipping or branding requirements for our clients.
What is the minimum order quantity (MOQ) and supply capacity?
The minimum order quantity is 100 pieces, and we have a robust supply capacity of up to 100,000 pieces per month.
