Cylinders Compact Reciprocating Seals

Hydraulic Piston Compact Reciprocating Seals

NBR Hydraulic Piston Seals

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

K03-F

Send Inquiry

Product Description

Product Specifications
Material NBR / HNBR / EPDM / FKM
Pressure (max) 200 / 400 Bar
Temperature (max) -55 / +200 °C
Sliding Speed (max) 0.5 / 1 M/s
Style Piston Seals
Application Asymmetric Piston Seals

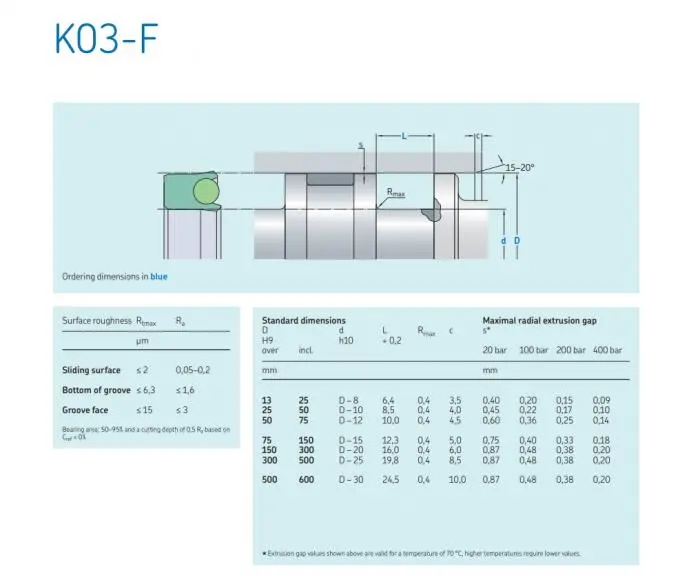

Overview: K03-F Piston Seal

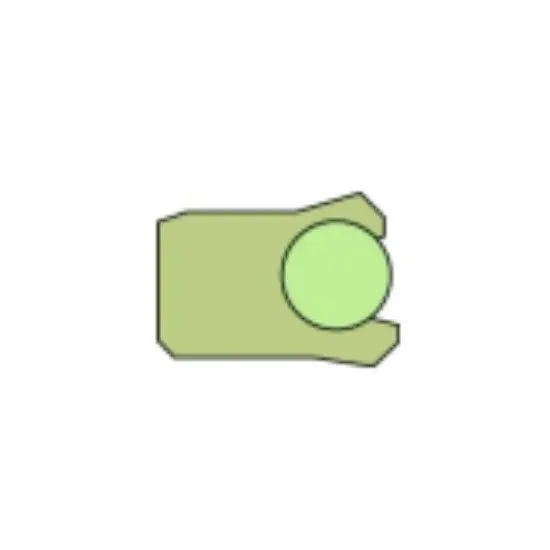

O-ring preloaded, asymmetric PTFE piston seal.

The design is optimized for FKM material in order to minimize friction and stick-slip effects. It can be adapted to a wide temperature range by selecting the appropriate O-ring material to suit different temperatures and media. The design ensures virtually no hygienic dead space and is easy to clean.

Primary Applications
Backwards and forwards action (e.g. of piston or pump)
Stationary state applications
Standard industrial hydraulic applications
Hydraulic Piston Compact Reciprocating Seals
Payment & Shipping Terms
Packaging Opp bags
Delivery Time 7-15 work days
Payment Terms L/C, T/T, Paypal
Supply Ability 100,000 pcs / month
FAQ
1. What is the maximum operating temperature for the K03-F seal?
The K03-F piston seal can withstand temperatures ranging from -55°C up to +200°C, depending on the material selected.
2. Which materials are available for these piston seals?
We offer a variety of high-performance materials including NBR, HNBR, EPDM, and FKM to suit different industrial requirements.
3. What is the pressure rating for the K03-F asymmetric seal?
The seal is designed to handle high-pressure environments, with a maximum capacity of 200 to 400 Bar.
4. Is this seal suitable for high-speed applications?
Yes, the K03-F seal supports a maximum sliding speed of 0.5 to 1.0 M/s, optimized to reduce friction and stick-slip effects.
5. What are the typical lead times for bulk orders?
Standard delivery times range from 7 to 15 working days, with a supply capacity of up to 100,000 pieces per month.
6. How does the asymmetric design benefit the application?
The asymmetric PTFE design combined with an O-ring preload provides superior sealing efficiency, minimal hygienic dead space, and is easy to maintain.
