Discount Simple Compact Hydraulic Cylinder Piston Seals For Agricultural Machinery Company, Companies

1 / 5

Discount Simple Compact Hydraulic Cylinder Piston Seals For Agricultural Machinery Company, Companies

Simple Hydraulic Cylinder Piston Seals

Compact Hydraulic Cylinder Piston Seals

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KL32

Send Inquiry

Product Description

Product Specifications

⚙Material

NBR / TPE / POM

⏲Pressure (max) Bar

150

🌡Temperature Range

-30°C to +100°C

⚡Sliding Speed (max)

0.5 M/s

⚓Style

Hydraulic Piston Seals

🏗Application

Low Pressure Industrial Cylinders

Payment & Shipping Terms

📦Packaging

Opp bags

🕒Delivery Time

7-15 work days

💳Payment Terms

L/C, T/T, Paypal

📈Supply Ability

100,000 pcs / month

KL32 Double-Acting Compact Seal Overview

The KL32 is a double-acting compact seal featuring a simple yet effective design. It consists of an elastomer sealing ring combined with guide rings, specifically engineered for high reliability in standard hydraulic applications.

Key Advantages

Simple groove design for reduced machining costs
Easy installation process
Economical sealing solution for industrial use

Area of Application

Agricultural machinery
Low pressure industrial cylinders

Simple Compact Hydraulic Cylinder Piston Seals

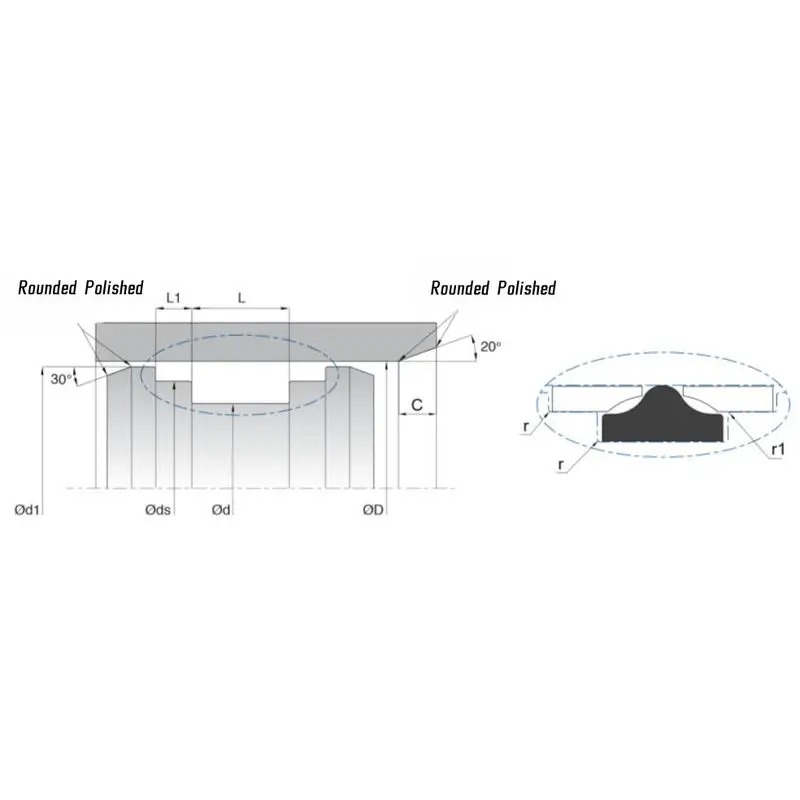

Technical Dimensions Data Table

Model Number	D (H10)	d (h9)	d1 (h11)	ds (h9)	L (+0.2/-0)	L1 (+0.1/-0)	r	r1	C	Material
KL32 025.4-017.45	25.43	17.47	23.83	21.08	8.9	3.05	0.4	0.2	1.98	NBR
KL32 025-017.50	25	17.5	24	21.3	8.7	3.2	0.4	0.2	2	NBR
KL32 031.75-023.80	31.79	23.83	30.18	27.44	8.9	3.05	0.4	0.2	1.98	NBR
KL32 032-022	32	22	31	27.5	11.2	3.9	0.4	0.2	2.5	NBR
KL32 038.1-028.57	38.14	28.61	36.54	33.67	11.3	3.7	0.4	0.2	2.36	NBR
KL32 040-030	40	30	39	35.5	11.2	3.9	0.4	0.2	2.5	NBR
KL32 044.45-034.92	44.5	34.96	42.9	40.02	11.3	3.7	0.4	0.2	2.36	NBR
KL32 050.8-041.27	50.86	41.32	49.26	46.38	11.3	3.7	0.4	0.2	2.36	NBR
KL32 050-040	50	40	49	45.5	11.2	3.9	0.4	0.2	2.5	NBR
KL32 057.15-047.62	57.21	47.68	55.61	52.76	11.3	3.7	0.4	0.2	2.36	NBR
KL32 063.50-053.97	63.57	54.04	61.97	59.12	11.3	3.7	0.4	0.2	2.36	NBR
KL32 063-053	63	53	61.5	58.5	11.2	3.9	0.4	0.2	2.5	NBR
KL32 069.85-060.32	69.93	60.39	68.33	65.48	11.3	3.7	0.4	0.2	2.36	NBR
KL32 076.20-066.67	76.29	66.75	74.68	71.84	11.3	3.7	0.4	0.2	2.36	NBR
KL32 080-070	80	70	78.5	75.5	11.2	3.9	0.4	0.2	2.5	NBR
KL32 100-087	100	87	98.5	93.8	14.2	5.9	0.4	0.2	4	NBR
KL32 125-112	125	112	123.5	118.8	14.2	5.9	0.4	0.2	4	NBR
KL32 160-140	160	140	158.5	151.4	25.2	12.4	0.8	0.4	5	NBR
KL32 200-180	200	180	198.5	191.4	25.2	12.4	0.8	0.4	5	NBR

Frequently Asked Questions (FAQ)

1. What is the main function of the KL32 compact seal?

The KL32 is a double-acting seal designed for hydraulic pistons, providing effective sealing and guidance in low-pressure industrial cylinders.

2. What materials are used in the construction of KL32 seals?

The seals are typically constructed using a combination of NBR (Nitrile Rubber), TPE, and POM for the guide rings to ensure durability and performance.

3. What are the maximum operating parameters for these seals?

KL32 seals can handle pressures up to 150 Bar, temperatures ranging from -30°C to +100°C, and sliding speeds up to 0.5 M/s.

4. Are these seals suitable for agricultural machinery?

Yes, agricultural machinery is one of the primary areas of application for the KL32 compact seal due to its robust and economical design.

5. How are the products packaged and delivered?

Products are usually packed in Opp bags. Standard delivery takes approximately 7-15 working days depending on the order volume.

6. What is the monthly supply capacity for KL32 seals?

We maintain a high production capacity of up to 100,000 pieces per month to ensure consistent supply for industrial requirements.
