The KL30 is a high-performance, five-piece double acting compact seal set. It is expertly designed consisting of an elastomeric sealing element, thermoplastic elastomer backup rings, and thermoplastic guide rings. This specialized configuration ensures low friction and superior sealing functionality for both static and dynamic environments across various hydraulic cylinders.

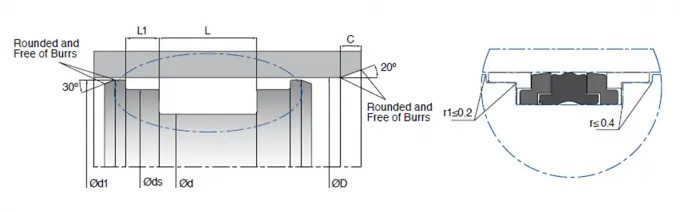

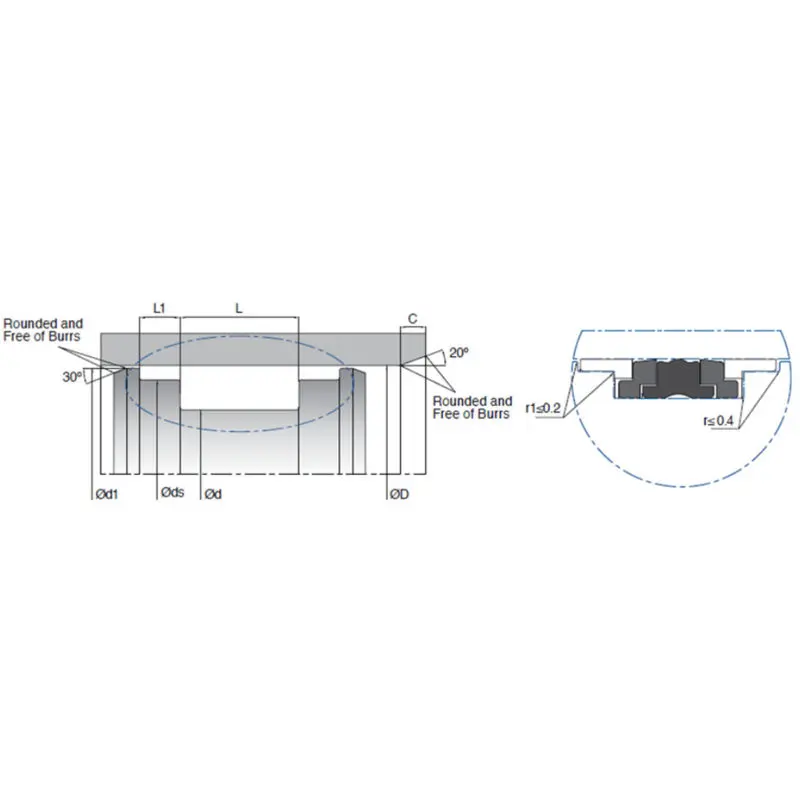

| Model | D (H8) | d (h9) | L (+0.2/-0) | ds (h8) | d1 (±0.1) | L1 (+0.2/-0) | C | Material |
|---|---|---|---|---|---|---|---|---|
| KL30 020-011 | 20 | 11 | 13.5 | 17 | 19 | 2.1 | 4 | NBR |
| KL30 022-013 | 22 | 13 | 13.5 | 19 | 21 | 2.1 | 4 | NBR |
| KL30 025-015 | 25 | 15 | 16.4 | 21.45 | 23.5 | 6.35 | 4 | NBR |
| KL30 025-015/1 | 25 | 15 | 12 | 21 | 23 | 4 | 4 | NBR |
| KL30 025-016 | 25 | 16 | 13.5 | 22 | 24 | 2.1 | 4 | NBR |
| KL30 030-017 | 30 | 17 | 15.4 | 26.5 | 28.5 | 6.35 | 4 | NBR |
| KL30 040-024 | 40 | 24 | 18.4 | 35.4 | 38.5 | 6.35 | 5 | NBR |
| KL30 050-034 | 50 | 34 | 20.5 | 46 | 49 | 3.1 | 5 | NBR |
| KL30 060-044 | 60 | 44 | 20.5 | 56 | 59 | 3.1 | 5 | NBR |
| KL30 080-060 | 80 | 60 | 22.4 | 74.15 | 78.3 | 6.35 | 6 | NBR |
| KL30 100-080 | 100 | 80 | 25.4 | 95 | 98 | 6.35 | 6 | NBR |
| KL30 125-100 | 125 | 100 | 25.4 | 118.1 | 123 | 6.35 | 6 | NBR |
