KL97 Double Wipers Use The Upper And Lower Lips In Their Designs With A Good Wiping Performance On The Rod
KL97 double wipers prevents foreign particles from outer environment penetrate in the cylinder in hydraulic systems, thanks to the upper and lower lips in their designs. They have a good wiping performance on the rod with double wiper design. Different from KL93 wipers, KL97 has wiper lip designed with a radius that optimizes the oil film on countersurface without scrapping.

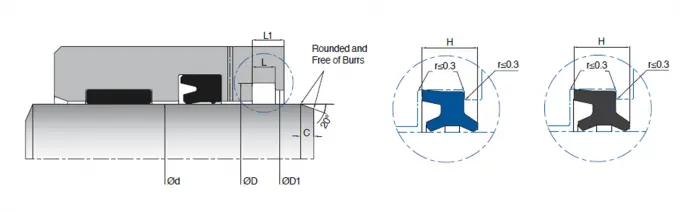

| Model | d (f8) | D (+0/-0.2) | D1 (H10) | L (+0.2/-0) | L1 | H | MATERIAL |
|---|---|---|---|---|---|---|---|
| KL97-014 | 14 | 22 | 18.3 | 5 | 7 | 6 | NBR |
| KL97-016 | 16 | 24 | 20.3 | 5 | 7 | 6 | NBR |
| KL97-018 | 18 | 26 | 22.3 | 5 | 7 | 6 | NBR |
| KL97-018 PU | 18 | 26 | 22.3 | 5 | 7 | 6 | PU |
| KL97-020 | 20 | 28 | 24.3 | 5 | 7 | 6 | NBR |
| KL97-020 PU | 20 | 28 | 24.3 | 5 | 7 | 6 | PU |
| KL97-025 | 25 | 33 | 29.3 | 5 | 7 | 6 | NBR |
| KL97-025 PU | 25 | 33 | 29.3 | 5 | 7 | 6 | PU |
| KL97-028 | 28 | 36 | 32.3 | 5 | 7 | 6 | NBR |
| KL97-028 PU | 28 | 36 | 32.3 | 5 | 7 | 6 | PU |
| KL97-030 | 30 | 38 | 34 | 6 | 8 | 6.5 | NBR |
| KL97-030 PU | 30 | 38 | 34 | 6 | 8 | 6.5 | PU |
| KL97-031 PU | 31.5 | 39.5 | 35.5 | 6 | 8 | 6.5 | PU |
| KL97-032 PU | 32 | 40 | 36 | 6 | 8 | 6.5 | PU |
| KL97-035 | 35 | 43 | 39 | 6 | 8 | 6.5 | NBR |
| KL97-035 PU | 35 | 43 | 39 | 6 | 8 | 6.5 | PU |
| KL97-040 | 40 | 48 | 44 | 6 | 8 | 6.5 | NBR |
| KL97-040 PU | 40 | 48 | 44 | 6 | 8 | 6.5 | PU |
| KL97-045 | 45 | 53 | 49 | 6 | 8 | 6.5 | NBR |
| KL97-045 PU | 45 | 53 | 49 | 6 | 8 | 6.5 | PU |
| KL97-050 | 50 | 58 | 54 | 6 | 8 | 6.5 | NBR |
| KL97-050 PU | 50 | 58 | 54 | 6 | 8 | 6.5 | PU |
| KL97-060 PU | 60 | 68 | 64 | 6 | 8 | 6.5 | PU |
| KL97-070 PU | 70 | 80 | 75 | 7 | 10 | 8 | PU |
| KL97-100 PU | 100 | 110 | 105 | 7 | 10 | 8 | PU |
| KL97-200 PU | 200 | 213 | 207 | 8 | 11 | 9.5 | PU |
